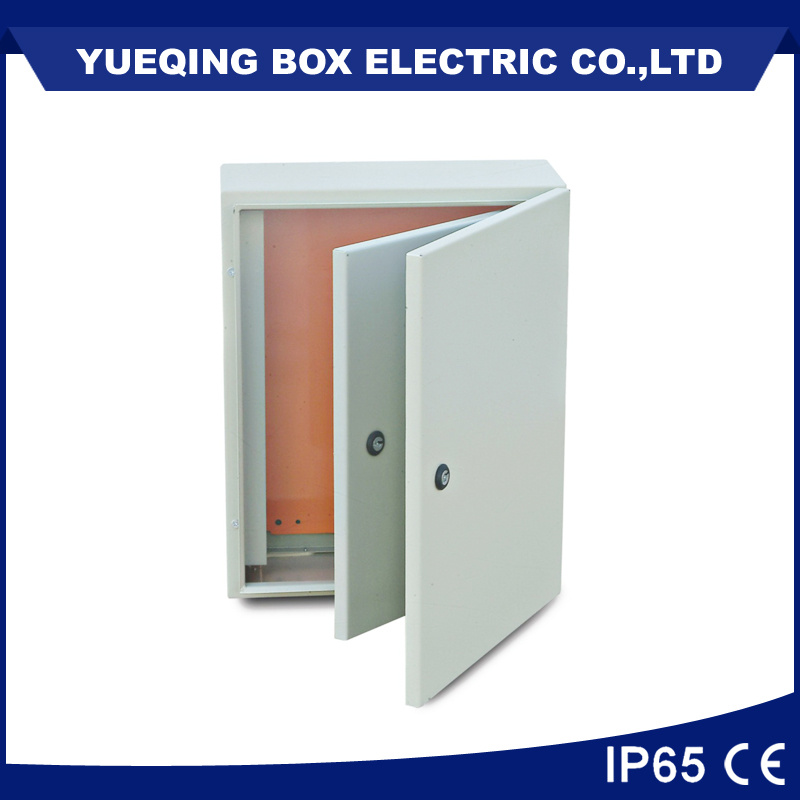

IP65 Inner Door Distribution Board

Name: IP65 Inner Door Distribution Board
Brand: all-electronics-online.com
SKU: 829702525
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	US $ 40/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MEI403020
Thickness:	1.2/1.2/2.0
Material:	Cold Steel
Color:	Ral7035 or Ral7032
M.P:	Ral2004 or Galvanized Steel
Customized:	Yes
Lock:	Ms705
Inner Door:	Yes
Type:	Power
Structure:	Protection
Certification:	Ce
Size:	400300200
Shell Protection Grade:	IP65
Brand:	Yqbox

Product Description

Standard configuration:
Enclosure and door
Mounting plate
Bar Lock
Polyurethane door seal
Cable gland plate and gasket

Degree of protection: IP66 to E N60529

External mechanical impact resistance: I K10

Surface treatment:
Textrured epoxy polyester powder coating

Material and color:
Body and front door: Cold roll steel to paint in RAL7035 or RAL7032
Mounting plate : Galvanized steel or plain steel to paint in RAL2004 smooth finish

distribution board standard configuration:
Enclosure and door
Mounting plate
Bar Lock
Polyurethane door seal
Cable gland plate and gasket

Degree of protection: IP66 to E N60529

External mechanical impact resistance: I K10

Surface treatment:
Textrured epoxy polyester powder coating

Material and color:
Body and front door: Cold roll steel to paint in RAL7032
Mounting plate : Galvanized steel or plain steel to paint in RAL2004 smooth finish

Internal Door

Model	H (mm)	W(mm)	D(mm)
MEI403015	400	300	150
MEI403020	400	300	200
MEI404020	400	400	200
MEI503020	500	300	200
MEI503025	500	300	250
MEI504020	500	400	200
MEI504025	500	400	250
MEI504030	500	400	300
MEI604020	600	400	200
MEI604025	600	400	250
MEI605020	600	500	200
MEI605025	600	500	250
MEI606025	600	600	250
MEI606030	600	600	300
MEI705025	700	500	250
MEI705030	700	500	300
MEI806025	800	600	250
MEI806030	800	600	300
MEI10060025	1000	600	250
MEI10060030	1000	600	300
MEI1008025	1000	800	250
MEI1008030	1000	800	300
MEI1208025	1200	800	250
MEI1208030	1200	800	300

Yueqing Box Electric Co., Ltd is established in 2000, situated on a modern industrial park in Yueqing Zhejiang. Our's company away from the qiligang wenzhou port only 500meter.

Our company mainly manufacture wall mounting enclosure, stainless steel enclosure, junction box, telephone box, control desk, floor standing cabinet and so on.

Non-standard products can be dsigned and custom to meet users' special requirements.

The company currently production area of 2, 000m2 and 30 employee. With the most efficient state-of-the art production machinery, and supported by a highly qualified work force and experienced engineers that ensure the highest quality enter into international markets.

Through the past 10 years efforts, we have estbilished a strong and loyal mutually beneficial partnership with customers from Europe, south east Asia, Middle East, south amercia, and Africa.

Just tell us your requirements, we will brng the best to your business!
