| Prod Model: |
S2100S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP Rate: |
IP65 |
| Power: |
0.75-11kw |
| Voltage: |
220V/380V |
| EMC: |
Built in EMC Filter |
| Phase: |
1/3 Phase |
| Apply: |
Fan and Pump |
| Functions: |
Waterproof |
| Warranty: |
18 Months |
| MOQ: |
1 PC |
| Payment: |
T/T, Western Union |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
| Function: |
Fan and Pump |
Product Description
GOOD NEWS.
------IT CAN BUILT IN EMC FILTER NOW.

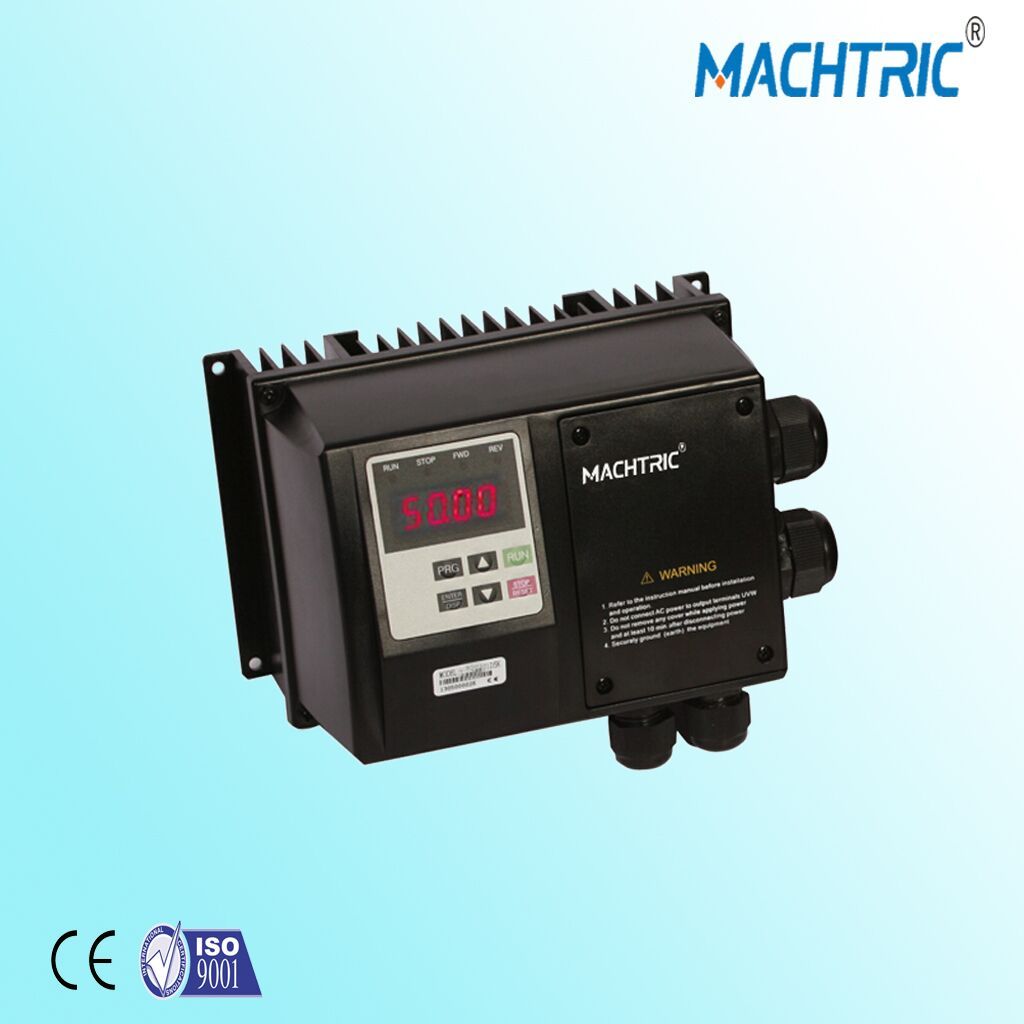

S2100S series IP65 has the following characteristics
1) To achieve the water supply control system with more than 6 sets of Pumps, one set is the main engine, others 5 sets are machine as attached engine.
2) With the resting state and Awaken Funciton;
3) With the function of exchange Pump on timely.
4) With the function of Antifreeze and waterproof;
1. Details.
| Input voltage | 220V single phase input, 380V three phase input |
| Power range | 0.4kw-11kw are available now, 15kw-22kw will be soon come out. |
| Big savings on installation | With a built in RFI filter, the S2100S IP65 inverter can be positioned close to the motor which cuts the cost of shielded motor cables. Choose the version with integrated isolator to simplify your external connections. |
| Big performance | The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity, a wide range of supply and fieldbus options, and excellent I/O. |
| Big advantages of easy handling | The S2100S IP65 inverters integrate the EPM memory module - a simple plug in chip that stores all the drive settings. The EPM module can be programmed off-line and the settings transferred from drive to drive in seconds. In the unlikely event that a drive fails, the EPM guarantees you minimum downtime. |
2. Model for choosen
Model | Suitable Motor | Output Current | Assembly Dimension(mm) |
| W | H | D | A | B | b |
| S2100-2S0.75GS | 0.75KW | 5A | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-2S1.5GS | 1.5KW | 7A |
| S2100-2S2.2GS | 2.2KW | 11A |
| S2100-4T0.75GS | 0.75KW | 2.7A | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-4T1.5GS | 1.5KW | 4A |
| S2100-4T2.2GS | 2.2KW | 5A |
| S2100-4T3.7GS | 3.7KW | 8.6A | 235 | 154 | 179 | 125 | 221 | M4 |
| S2100-4T5.5GS | 5.5KW | 12.5A |
| S2100-4T7.5GS | 7.5KW | 17.5A |
| S2100-4T11GS | 11KW | 24A |
3. Application
This series are widely used in the industries of plastic, textile;
Food, machine tools, powder, ventilating equipment, drives used outdoors, so on.
4. Packing&Delivery
Single by buffers and single small carton, but lots of goods by bigger carton and cover PE film .
the cartons have three sizes:
460mm*390mm*580mm; 445mm*330mm*655mm;500mm*440mm*615mm;
But more than 22 kw ,they are packed in wooden cases.
Shipping: by sea, or express like UPS, DHL, FedEx...if we deliver a lots of inverters ,we could use a outer larger carton to pack it ,and cover PE film to protect goods.
5. Our service
Working time : 8:30 a.m - 10:00 p.m
Any questions , pls tell us freely , we will be reply you asap .
Lead time : For samples , 1~2 days will be OK .
For mass production , the lead time depend on the quantities you need .
Warranty period : 12 months and Life-long maintenance service for the product .
