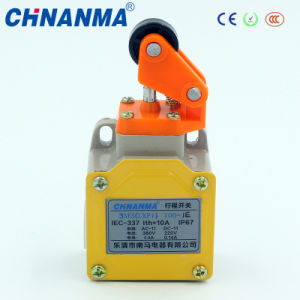

IP65 Lever Roller Automatic Reset Cushion Limit Switch

Name: IP65 Lever Roller Automatic Reset Cushion Limit Switch
Brand: all-electronics-online.com
SKU: 729146202
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXP1 100-1E
Pressing Type:	Spring Roller
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Duplex Type
Application:	Electronic Equipment
Brand:	Chnanma

Product Description

1)Virous of actuators,the operation position is adjustable.
2)Outer shell covered with intensive plastic,water-proof and oil-proof,the mechanical strenth is better than NM-17&13 series of micro switch,bear hitting.

Protection Level
Product Description
The product is to service at such control circuit as AC50~60Hz, voltage of 380VAC or 220VDC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program.
The nominal service conditions include an ambient temperature of -25ºC+40ºC, an ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65.

in technology data
	The typical usage of travel switch is to control electrical magnent of AC or DC
Control capacity	AC-15			DC-13
	Rated insulation voltage	Rated insulation current		Rated insulation voltage	Rated insulation current
	380V		0.8A	220V	0.15A
	220V		1.4A	110V	0.5A
	110V		2.8A
Rated value	Rated insulation voltage Ui=380V conventional enclosed heating current Ith2=10A
Protection for short-circut	Rated fuse current 1000A RL1-15/10
electrical	Electrical life of AC one million and half times,Electrical life of DC three hundred
operation frequency	DC2400 times/hour,AC 1200 times/hour
mechanical	LXK3-20S.H/H1.H2.H3,LXK3-20S.H/W 600 million times Other specification 1000 million times
Repetition precision	The difference between the maximaum(or the minimum) and the means is n more than 0.5mm in ten times of actions
Protection degree of enclosure	IP65 GB4208-84
Vibration resistance	Frenquency:10-55HZ Accelerated speed:10g(90M/S) Amplitude 0.75mm

FAQ

1. Q: Could I put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.

4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.

7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.

Over 15 years OEM experience, we can provide professional solutions for customers.
