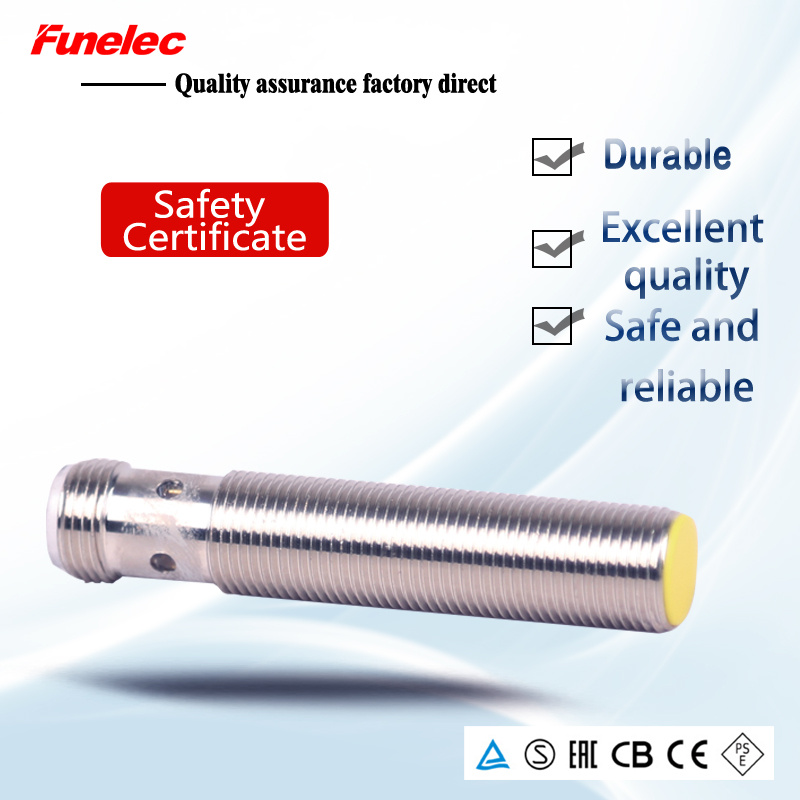

IP65 M8 Inductive Proximity Switch Sensor Wireless with Connector
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FNT-X8 |
| Material: |
Stainless Steel |
| Voltage Type: |
DC Voltage |
| Rotection Degree: |
IP 67 |
| Mounting: |
Flush / Non-Flush |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Wires: |
NPN/PNP 3 Wire, Two Wire |
| Application: |
Position Sensor, Speed Sensor |
Product Description
FNT-X8 Series Proximity Sensor/ inductive proximity switch
Detailed Product Description
Features:
1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it | Dimension | M8 |
| Mounting wP2 | Screen shield type |
TYPE
|
DC
TYPE
| NPN
| NO | ALJ8A3-1-Z/N1 |
| NC | ALJ8A3-1-Z/N2 |
| NO+NC | |
PNP
| NO | ALJ8A3-1-Z/P1 |
| NC | ALJ8A3-1-Z/P2 |
| NO+NC | |
Two Wire
| NO | ALJ8A3-1-Z/D1 |
| NC | ALJ8A3-1-Z/D2 |
AC
TYPE
| Two Wire
| NO | ALJ8A3-1-J/A1 |
| NC | ALJ8A3-1-J/A2 |
| Three wire | NO+NC | |
| Set distance | 1.5 mm+/-10% |
| Standard detection object | 0~1.2mm |
| Response frequency | Iron8*8*1 |
| Response frequency | DC:>=2kHz AC:50Hz |
| DelP2 distance: | 10% below of the detection distance |
| Detection object | Magnetic metal (the detection distance decreases when it is non-magnetic metal) |
| Supply voltage | DC type: DC12-24V(6-36V) Impulse(p-p) 10% below
Ac type: AC110-220V (36-250V) 50/60Hz |
| Consumption current | N.P type:13mA below D type:0.8mA below A type:1.7mA below |
| Control output | N.P type:300 mA below D type:200mA below A type:400mA below |
| Loop protection | N.P.D type: reversal connection protection, surge absorption, load short-circuit protection
A type: surge absorption |
| Ambient temperature humidity | During operation,storage: individually-30~+65(No freeze,no drew),
During operation,storage: Individually35~95%RH |
| Insulation resistance | 50 MΩ about(DC500 megameter) between charging and housing |
| Withstand voltage | AC1000V50/60Hz 1 min between charging and housing |
| Temperature influence | Temperature range-30~+65,at+23,+/-15% detection distance
Temperature range-25~+60,at+23,+/-10% detection distance |
| Voltage influence | Inside+/-15%rated supply voltage range, at rated supply voltage value;
Inside +/-10% detection distance |
| Protection structure | IP65 ICE specification |
| material | Housing: Nickel plated brass; Detection surface: ABS |
