IP65 Square Photoelectric Sensor Switch Diffuse Type for Product Count

Name: IP65 Square Photoelectric Sensor Switch Diffuse Type for Product Count
Brand: all-electronics-online.com
SKU: 840376055
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	US $ 2-15piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AE3JK

Product Description

IP65 Square Photoelectric sensor switch diffuse type for product count

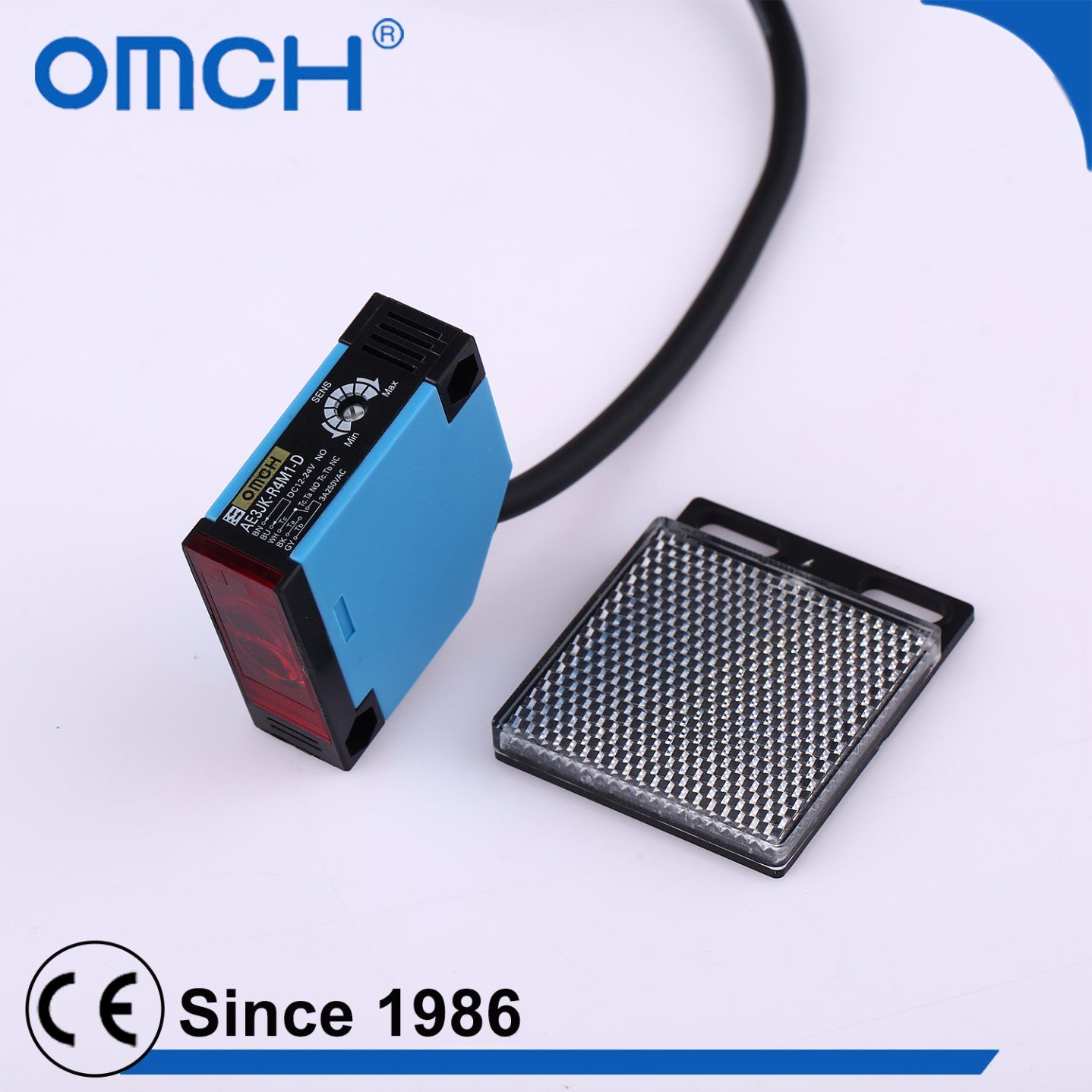

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

Dimension				18X50X50
Mounting way				Feedback reflex type
Type	DC type	NPN	NO	AE3JK-R4N1
			NC	AE3JK-R4N2
			NO+NC	AE3JK-R4N3
		PNP	NO	AE3JK-R4P1
			NC	AE3JK-R4P2
			NO+NC	AE3JK-R4P3
	AC type	Two wire	NO	AE3JK-R4A1
			NC	AE3JK-R4A2
	relay output	DC illuminate		AE3JKR4M1-D
		AC illuminate		AE3JKR4M1-A
		DCnon- illuminate		AE3JKR4M2-D
		AC non- illuminate		AE3JKR4M2-A
Detection distance				4m±10%
Set distance				Opaque Object
Standard detection object				sensitivity adjuster
Response time				DC:1ms; AC:30ms

DelP2 distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP65 ICE specification
material	Housing: Nickel plated brass; Detection surface: ABS
