IP65 Square Type Optical Proximity Switch Sensor

Name: IP65 Square Type Optical Proximity Switch Sensor
Brand: all-electronics-online.com
SKU: 840394995
Availability: InStock
Rating: 4.4 (32 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ASK
Type:	Infrared Sensor Switch
Standard:	Standard
Certification:	CE
Wires:	2-Wires, 3-Wires,4-Wires

Product Description

IP65 Square type optical proximity switch sensor

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

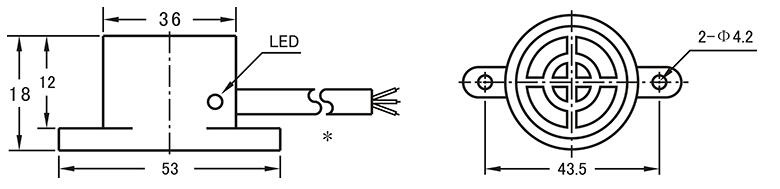

Dimension				32c22c11
Mounting wP2				Non-Screen shield type
TYPE	DC TYPE	NPN	NO	ASK-3015N1
			NC	ASK-3015N2
			NO+NC	ASK-3015N3
		PNP	NO	ASK-3015P1
			NC	ASK-3015P2
			NO+NC	ASK-3015P3
		Two Wire	NO	ASK-3015D1
			NC	ASK-3015D2
	AC TYPE	Two Wire	NO	ASK-3015A1
			NC	ASK-3015A2
		Three wire	NO+NC
Detection distance				15 mm+/-10%
Set distance				0~13 mm
Standard detection object				Iron 55551
Response frequency				DC:>=1kHz AC:50Hz

DelP2 distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP65 ICE specification
material	Housing: Nickel plated brass; Detection surface: ABS

AUTHENTICATION

FAQ

We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.
