IP65 V/F Control Frequency Inverter VSD VFD for Water Pump
| Price: |
US $ 112/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S2100S |
| Item Name: |
IP65 Frequency Inverter for Water Pump |
| Indication: |
Operating Status/Alarm Definition/Interactive Gui |
| Rated Voltage Frequency: |
1pH/3pH AC 220V 50/60Hz;3pH AC380V 50/60Hz |
| Pid Control: |
Built-in Pid Control |
| Output Current: |
5A-24A |
| Multi-Speed: |
15 Speeds Can Be Set |
| RS485: |
Stnadard RS485 Communication Function |
| Advantages: |
Big Saving on Installation;Big Performance;Easy Ha |
| Altitude: |
Lower Than 1000m |
| Protective Structure: |
IP 65 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
Water Pump etc |
| Brand: |
Machtric |
Product Description

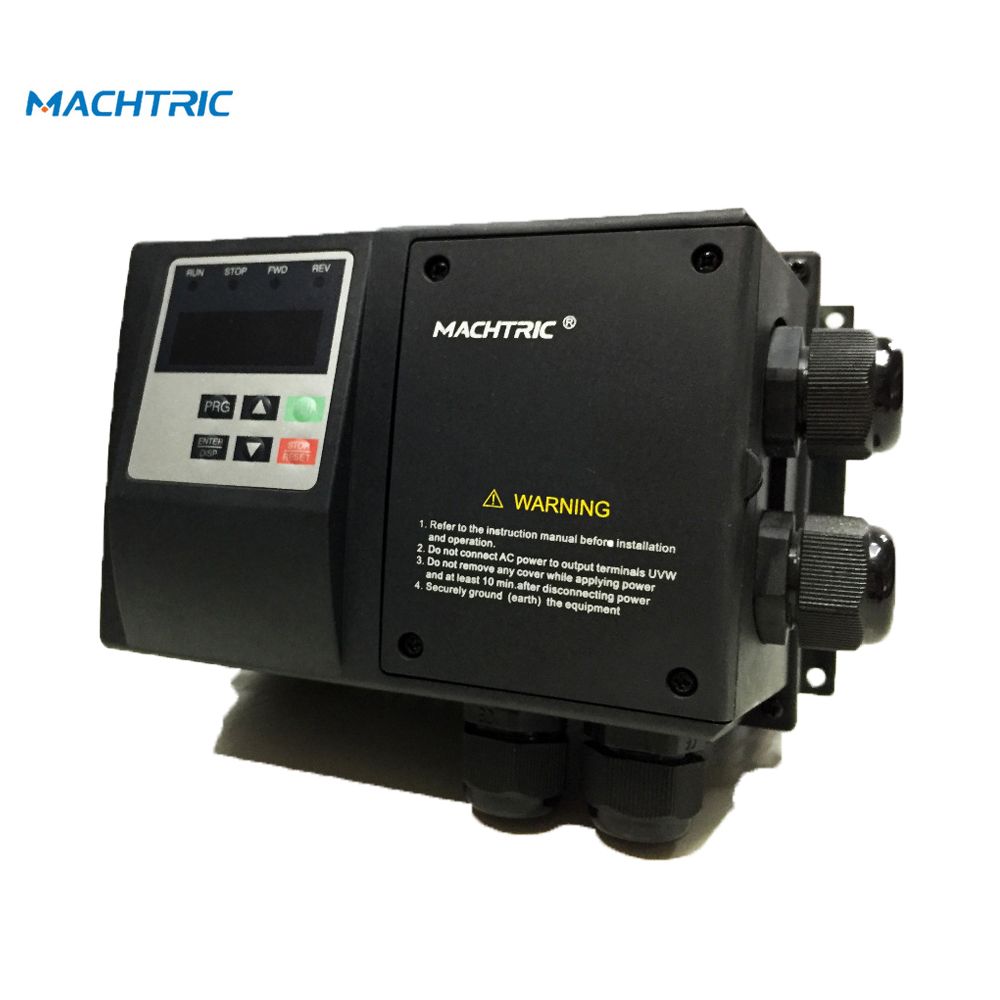

IP65 V/F Control Frequency Inverter VSD VFD for Water Pump
1.Product Advantages: Big saving on installation:With a buit in RFI fliter,the S2100S IP65 Inverter can be positioned closed to the motor which cuts the cost of shielded motor cables.Choose the version with integrated insulator to simplify your external connections.
Big performance:The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity,a wide range of supply and fieldbus options,and excellent I/O.
Big advantages of easy handling:The S2100S IP65 inverters intergrate the EPM memory modulea simple plug in chip that stores all the drive settings.The EPM moudule can be programmed off-line and the settings transfered from drive to drive in seconds.In the unlikely event that a drive fails,the EPM guarantees you minimum downtime.
2.Guidence:| Model | Suitable Motor | Output Current | Assembly Dimension (mm) |
| W | H | D | A | B | b |
| S2100-2S0.75GS | 0.75KW | 5 |
188 |
122 |
134 |
105 |
178 |
M4 |
| S2100-2S1.5GS | 1.5KW | 7 |
| S2100-2S2.2GS | 2.2KW | 11 |
| S2100-4T0.75GS | 0.75KW | 2.7 |
188 |
122 |
134 |
105 |
178 |
M4 |
| S2100-4T1.5GS | 1.5KW | 4 |
| S2100-4T2.2GS | 2.2KW | 5 |
| S2100-4T3.7GS | 3.7KW | 8.6 |
235 |
154 |
179 |
129 |
225 |
M4 |
| S2100-4T5.5GS | 5.5KW | 12.5 |
| S2100-4T7.5GS | 7.5KW | 17.5 |
| S2100-4T11GS | 11KW | 24 |
3.Product Specification:| Items | S2100S |
| Input | Rated voltage,Frequency | 1PH/3PH AC 220V 50/60Hz,3PH AC 380V 50/60 Hz |
| Voltage Range | 220V: 170V-240V, 380:330V-440V |
| Output | Voltage Range | 220V:0-220V;380V:0-380V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifunctional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifunctional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
Other functions | PID control | Built-in PID control
|
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency setting | Analog input:0-10v,4 to 20mA can be selected;
Digital input:input using the setting dial of the operation panel
or RS485 or UP/Down
Note:AVI terminals can be used to select and analog voltage input (0-10v)
and analog current input (4-20mA) through the switch J2. |
| Multi-speed | Four multifunction input terminals,15 section speed can be set. |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built-in 2 group of counters |
| Protection Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other protections | Output shortcircuit,over current,and parameter lock and so on. |
Environment | Ambient Temperature | -10°C to 40°C(non-freezing) |
| Ambient Humidity | Max. 95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
Structure | Cooling Mode | Forced air cooling (5.5kW or more) |
| Protective Structure | IP65 |

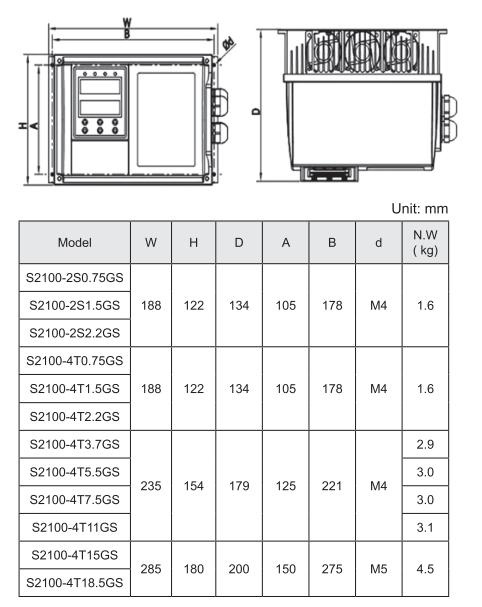

4.Inverter Outline Dimension Drawings:

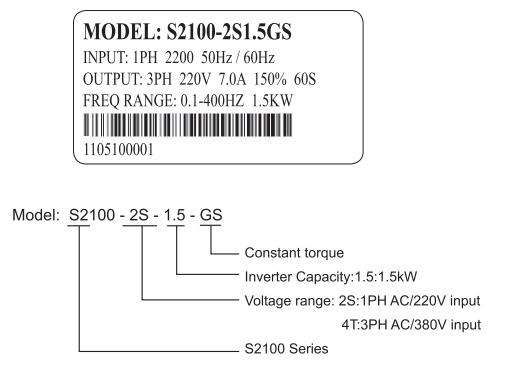

5.Nameplate:

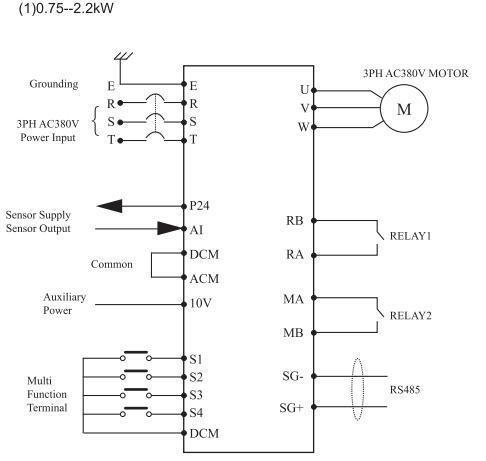

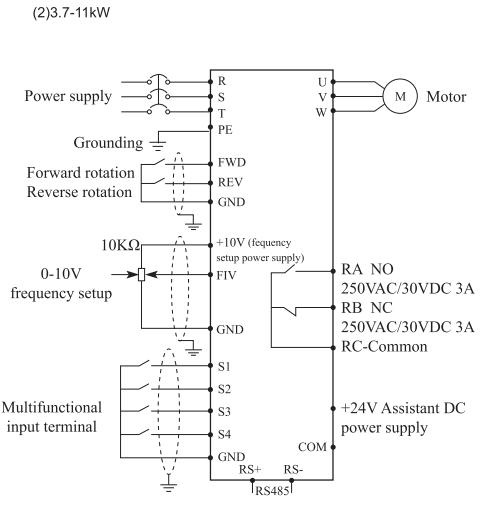

6.Basic Wiring Diagram:
6.Contact Us:
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
