| Prod Model: |
S2100S |
| Markets: |
North America,South America,Oceania,Mid East,Eastern Asia |
| Power Range: |
0.75kw~11kw |
| Protection Degree: |
IP65 |
| Pid Control: |
Built-in Pid Control |
| Control Mode: |
V/F Control |
| Export Markets: |
Global |
| Ambient Temperature: |
10~40non-Freezing |
| Output Range Of Frequency: |
0.01~400.0Hz |
| Over Load Capacity: |
150% of Rated Output Current and Run for 65 Second |
| Voltage: |
220V/380V |
| Altitude: |
Lower Than 1000m |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |

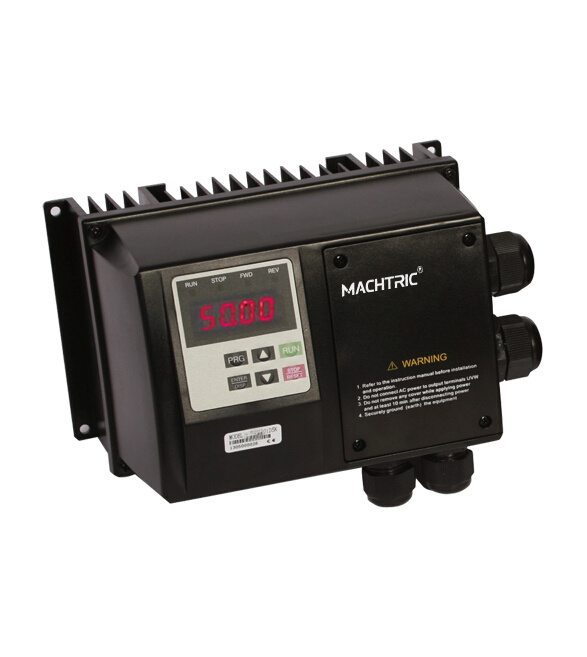

Product Description
Protection: IP65
Power range: 0.4-11kw
Phase: 1/3 Phase
Input Voltage: 220V: 170~240V, 380V: 330~440V
Output Voltage: 220V: 170~240V, 380V: 330~440V
product specification:
| Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definition /interactive guidance;eg,frequency setting,the output frequency/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto raise torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing function including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zero speed,counter,external abnormality,program operation and other information and warnings |
| | |
8 multifunitinal output terminals, 1 inverter can control 4 circular variable frequency pumps |
| | Acceleration/deceleration Time Setting | 0~6000 s acceleration/deceleration time can be set individually |
Other
functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function (MODBUS) |
| Frequency Setting | Analog input 0~10V, 0~20, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN |
| Multi-sVPed | Eight multifunction input terminals,15 section sVPed can be set |
| Automatic Voltage regulation | Automatic Voltage regulation function can be selected |
| Counter | Built-in 2 group of counters |
| Overload | 120%,60second (variable torque) |
| Over Voltage | Over Voltage protection can be set |
| Under Voltage | Under Voltage protection can be set |
| Other Protections | Overheat,output short circuit,over current,and parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC~40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000. |
| Vibration | Max. 0.5 g |
| Structure | Cooling Mode | Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling |
| Protective Structure | IP 65 |
Applications:
This series are widely used in the industries of plastic, textile;
Food, machine tools, powder, ventilating equipment,drives used outdoors, so on.
3. Model for choosen with dimensions
Model |
Suitable Motor |
Output Current |
Assembly Dimension(mm) |
W |
H |
D |
A |
B |
b |
S2100-2S0.75GS |
0.75KW |
5 |
188 |
122 |
134 |
105 |
178 |
M4 |
S2100-2S1.5GS |
1.5KW |
7 |
S2100-2S2.2GS |
2.2KW |
11 |
S2100-4T0.75GS |
0.75KW |
2.7 |
188 |
122 |
134 |
105 |
178 |
M4 |
S2100-4T1.5GS |
1.5KW |
4 |
S2100-4T2.2GS |
2.2KW |
5 |
S2100-4T3.7GS |
3.7KW |
8.6 |
235 |
154 |
179 |
125 |
221 |
M4 |
S2100-4T5.5GS |
5.5KW |
12.5 |
S2100-4T7.5GS |
7.5KW |
17.5 |
S2100-4T11GS |
11KW |
24 |
