IP65 Wall Mounted Fixed Voc Gas Detector
| Price: |
US $ 418.76-2654.68/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MOT500-VOC |
| Analog Digital Output: |
4-20mA Output(0-5V,0-10V Optional) |
| Material: |
Aluminum,Explosion and Corrosion Proof |
| Display: |
LCD Dispalyed |
| IP Rating: |
IP 65 |
| Explosion Proof Sign: |
Exdll CT4 (Ia) |
| Power: |
24VDC |
| Modbus Digital Output: |
RS485 Output |
| Operating Pressure: |
0-200kpa |
| Relay Output: |
2-3 Relays Output |
| Sampling: |
Diffusion |
| Gas: |
Voc |
| Type: |
Semiconductor |
Product Description

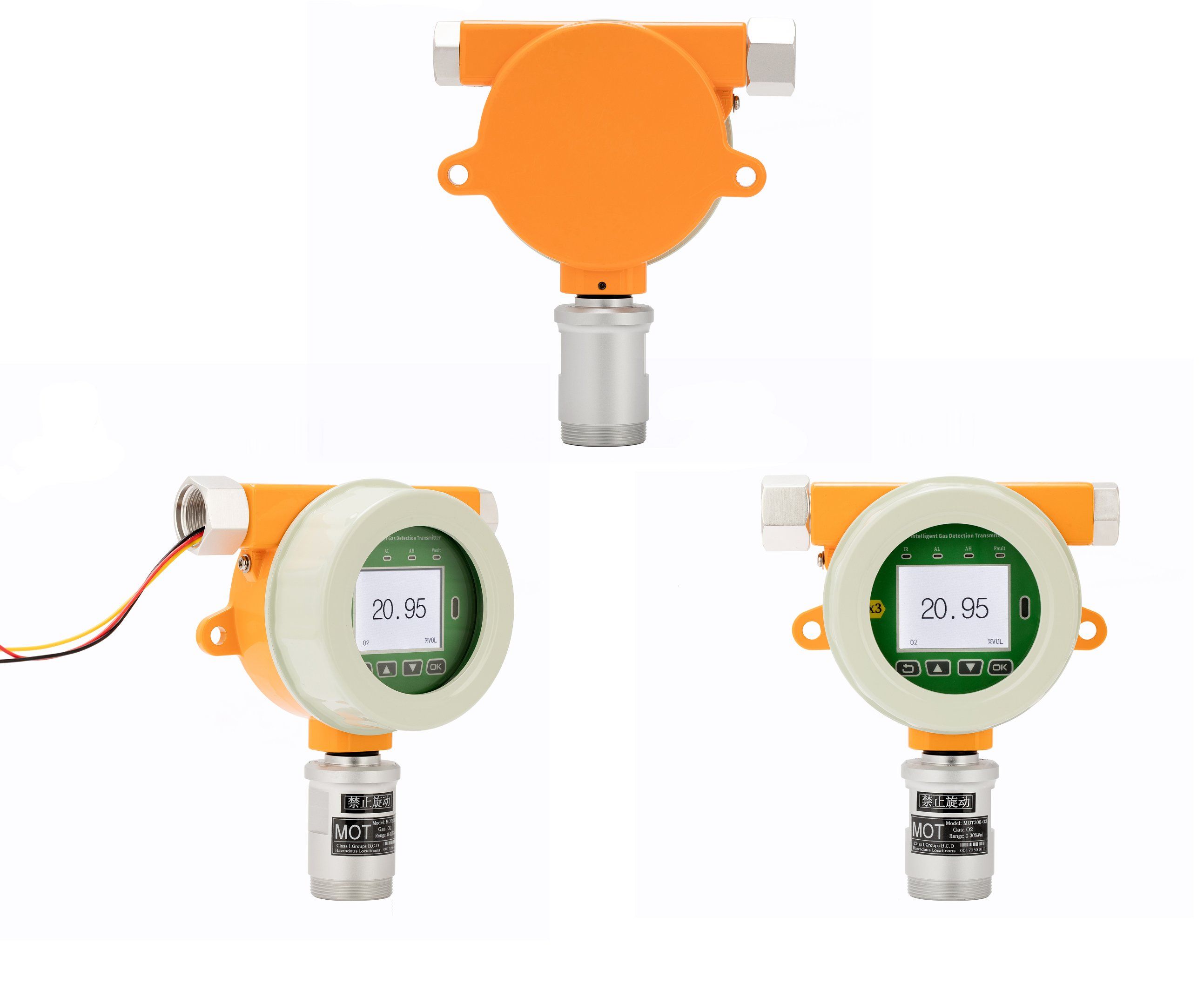

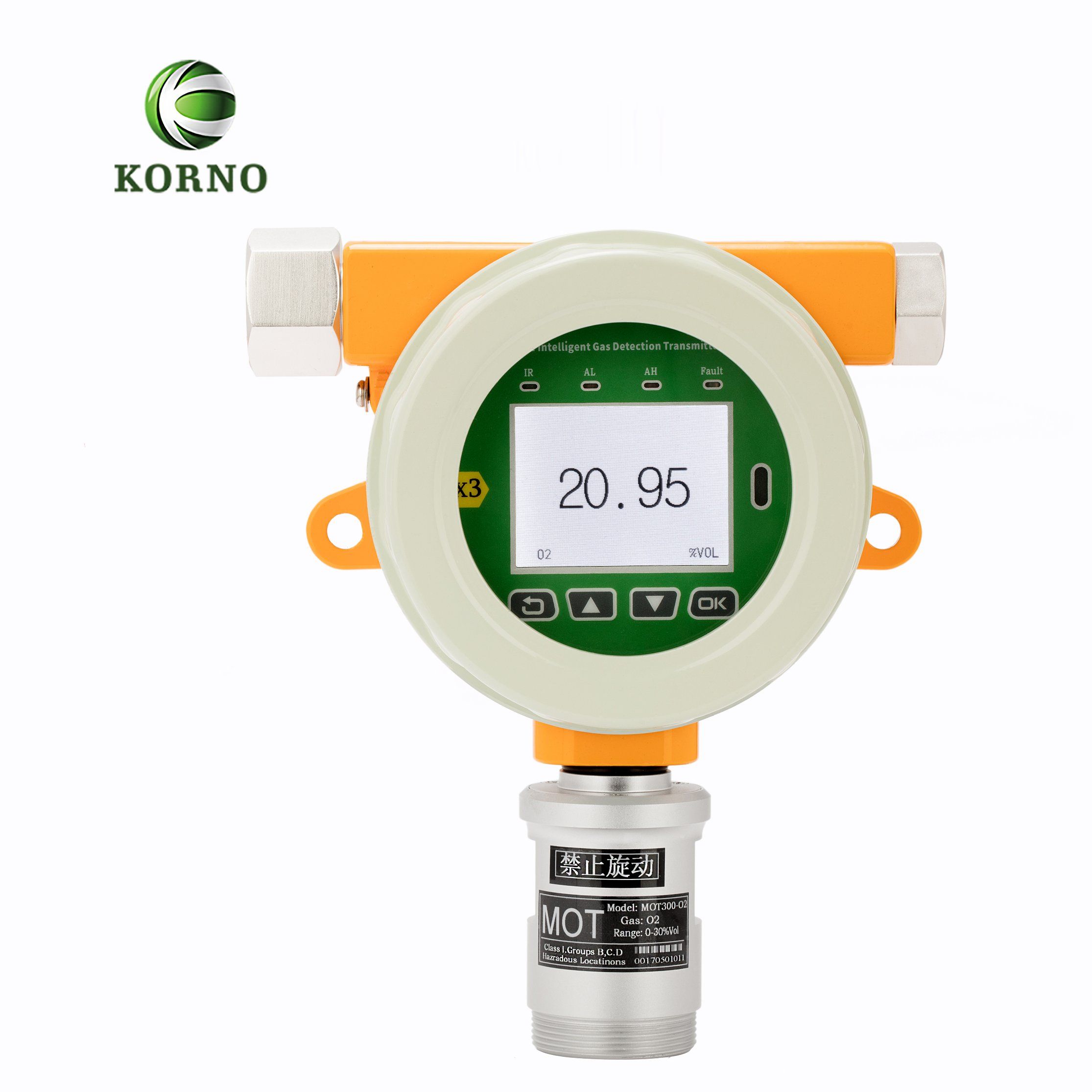

IP65 Wall Mounted Fixed VOC Gas Detector
MOT500-VOC
>>> Key Feature☆★ RS485 & 4-20mA outputs as standard
☆★ 2 relays outputs as standard(can be 3 relays if needed)
☆★ IP65 rating
☆★ Explosion proof construction,ExdII CT6
☆★ 2.4 inches LCD HD color screen
☆★ compatible with most controlling device ,PLC and DCS etc
>>> Specifications | Product Type: | Online,Organic volatile gases(VOC) |
| Sensor: | Semiconductor Gas sensor |
| Detection Pattern: | Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detection |
| Detection Range: | 0-10,50,100,200,500,1000,2000,5000,6000,10000ppm |
| Resolution: | 0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-10000PPM) |
| Detection Accuracy: | ≤±3%F.S | Linearity error: | ≤±1%F.S |
| Reaction Time: | ≤20S(T90) | Zero drift: | ≤±1%(F.S/Year) |
| Recovery Time: | ≤20S | Repeatability: | ≤±1%F.S |
| Relay output: | Two relays output,Contact rating:24VDC 3A/220VAC 3A |
| Explosion Proof Sign: | ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807 |
| Outputs: | Analog:4-20mA signal,0-5V,0-10V
Modbus: RS485 signal
Pulse signal or TCP/IP signal,optional |
| Alarm Setting: | Two alarm set points
Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarm |
| Controllers: | Compatible with DN3000/DN9000,as well as most DCS/PLC systems |
| IP Rating : | IP65 |
| Material: | Aluminum
,Explosion and corrosion proof | Connection: | 3/4″NPT,1/2″NPT |
| Dimensions: | 200×160×80mm(L×W×H) | Weight: | 1.5 Kg(Net weight) |
Operating
Temperature: | -30 ~ 60ºC | Relative Humidity: | ≤90%RH,Non-condensing |
Operating
Pressure: | 0 ~ 200Kpa | Operating Voltage: | 24VDC(9~30VDC) |

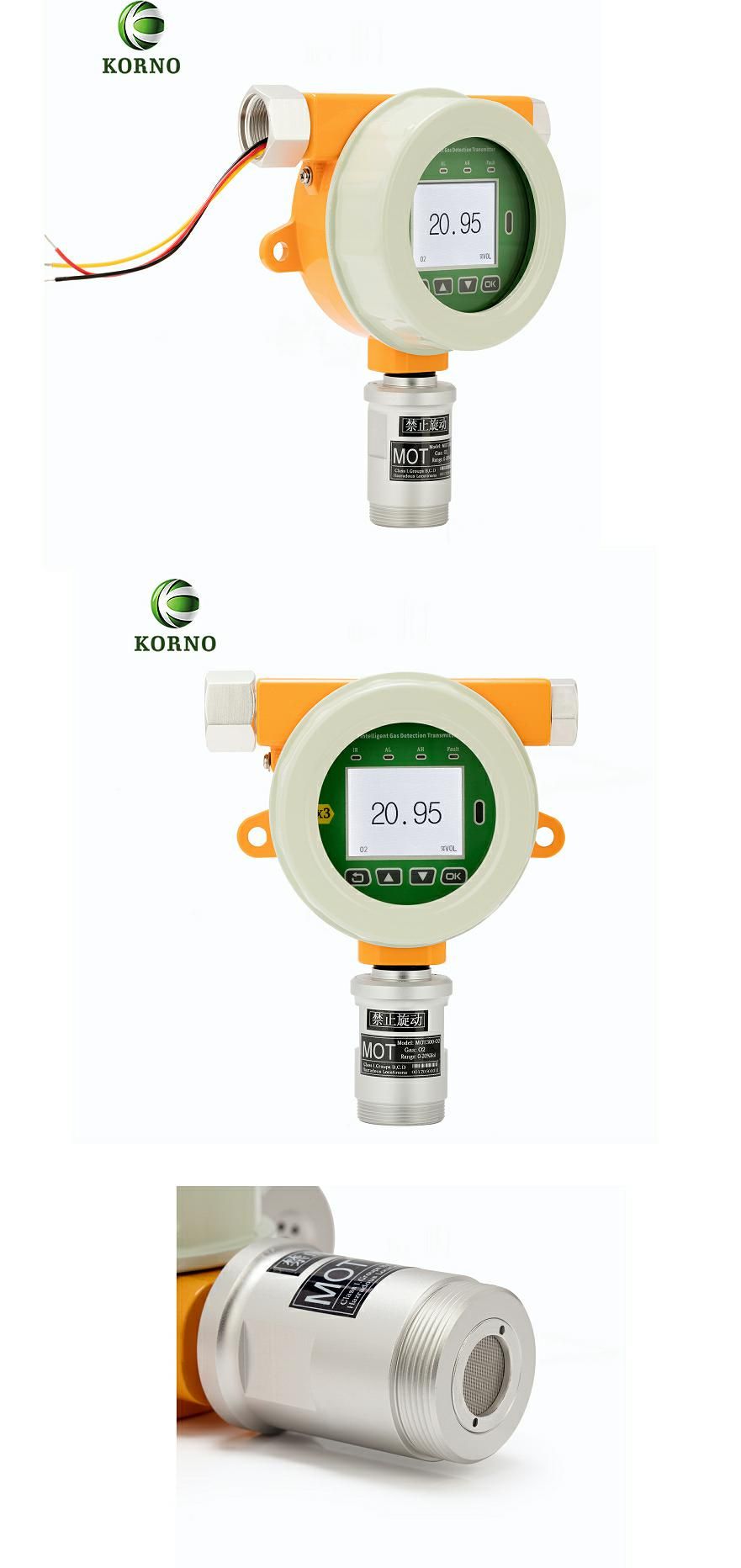

>>> Details:
Certificates:
Company Information: Shenzhen Korno Import& Export Co.,Ltd,is one of the top gas detector manufacturer in China,with more than 10 years research and production experience.Our products mainly include handle gas detector,Portable gas detector,Online gas detector,Controller,Gas pretreatment System etc.
The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service. In addition, with the powerful and professional R&D team, advanced and perfect concept of sales service made the products of our company a high reputation and market share both at home and abroad.
Our service:
- All products and accessories have been 100% tested before shipping.
- We provide 12-Mounths warranty for non-deliberate damage.
- OEM & ODM are welcomed~
Contact US:
Shenzhen Korno Import& Export Co., Ltd is one of the top gas and dust particle detector manufacturer in China, with more than 10 years research and production experience. Our products mainly include Handheld Gas Detector, Portable Gas Detector, Online Gas Detector, Controller, Gas Pretreatment System ect. And we have passed ISO9001: 2015, ISO14001: 2015, OHSAS: 2007, CMC and Explosion-proof certification for our products.
We have associated factory named Shenzhen Korno Electornic Technology Co., Ltd, the factory was established in 2008 with 45 employees and occupies an area of more than 1000 square meters
We have our own R&D departments, processing plants, assembly plants, after-sale technical support departments, domestic sales, overseas sales departments, etc.
The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service.
Our main market is Asia, Europe and America, more than 30 countries.
Our customers are: Mordoch University, HUANGKUANG University, Humboldt University Berlin, S. P. Refinery. Co., Ltd, China National Petroleum Corporation, etc.
More >

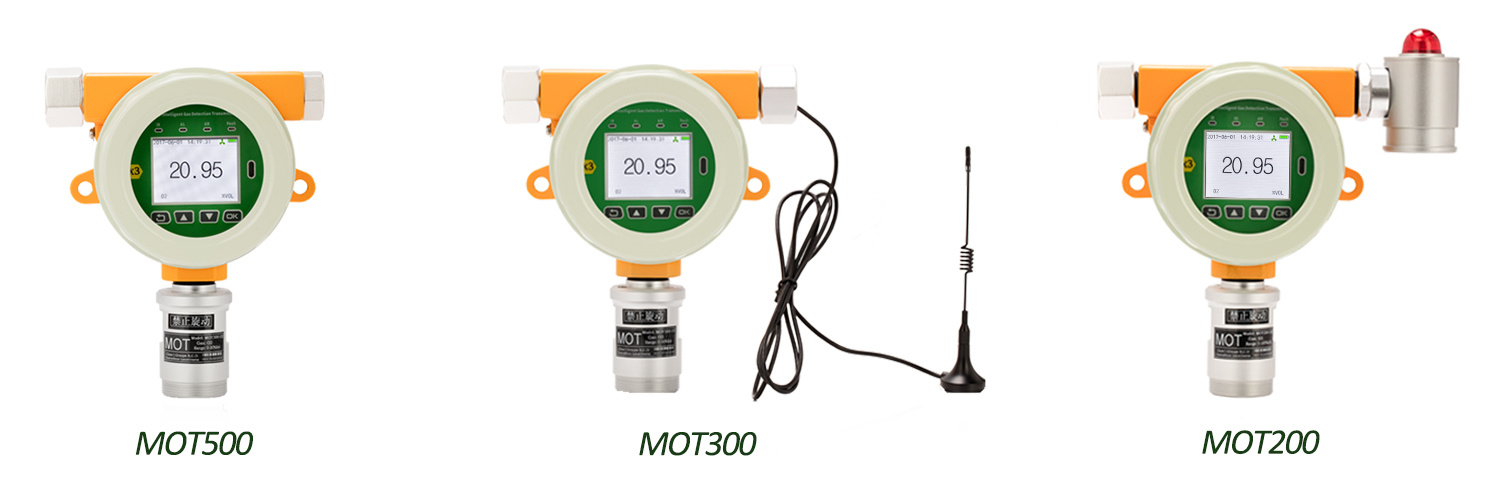

Other Products with This Manufacturers
