Prod Model: |
KWT |
Mounting Plate Thickness: |
2mm |
Service: |
OEM/ODM/Customized |
Conwell: |
Factory |
Structure: |
Protection |
Application Range: |
Industrial |
Type: |
Electrical Panel Box |
Size: |
300*250*150mm |
Certification: |
Ce, RoHS |
Brand: |
Conwell |
Shell Protection Grade: |
IP65 |
Product Description
Product Description:
1. Material:
Enclosure: sheet steel 1.2mm till size BJS1-88/300 then 1.5mm
Door: sheet steel 1.2mm till size BJS1-66/300 then 1.5mm
Mounting plate:2.0mm
2.Surface finish:
Enclosure and door:Dipcoat-primed,powder-coated in textured Ral7032 or Ral7035 outside
Mounting plate: RAL2000 or galvanized
RAL2000 or galvanized
3.Protection:
Protection degree:IP66
Impact resistance:IK10
4.Supply includes:
Enclosure of all-round solid construction
gland plate with sealing gasket,door with lock.
5.Product Size:
Reference | Height | Width | Depth |
KWT1-2020/150 | 200 | 200 | 150 |
KWT1-3025/150 | 300 | 250 | 150 |
KWT1-3025/200 | 300 | 250 | 200 |
KWT1-33/150 | 300 | 300 | 150 |
KWT1-33/200 | 300 | 300 | 200 |
KWT1-34/200 | 300 | 400 | 200 |
KWT1-43/150 | 400 | 300 | 150 |
KWT1-43/200 | 400 | 300 | 200 |
KWT1-44/200 | 400 | 400 | 200 |
KWT1-46/250 | 400 | 600 | 250 |
KWT1-46/300 | 400 | 600 | 300 |
KWT1-54/150 | 500 | 400 | 150 |
KWT1-54/200 | 500 | 400 | 200 |
KWT1-54/250 | 500 | 400 | 250 |
KWT1-55/250 | 500 | 500 | 250 |
KWT1-64/150 | 600 | 400 | 150 |
KWT1-64/200 | 600 | 400 | 200 |
KWT1-64/250 | 600 | 400 | 250 |
KWT1-65/150 | 600 | 500 | 150 |
KWT1-65/200 | 600 | 500 | 200 |
KWT1-65/250 | 600 | 500 | 250 |
KWT1-66/250 | 600 | 600 | 250 |
KWT1-66/300 | 600 | 600 | 300 |
KWT1-68/300 | 600 | 800 | 300 |
KWT1-75/200 | 700 | 500 | 200 |
KWT1-75/250 | 700 | 500 | 250 |
KWT1-86/200 | 800 | 600 | 200 |
KWT1-86/250 | 800 | 600 | 250 |
KWT1-86/300 | 800 | 600 | 300 |
KWT1-86/400 | 800 | 600 | 400 |
KWT1-88/200 | 800 | 800 | 200 |
KWT1-88/300 | 800 | 800 | 300 |
KWT1-810/300 | 800 | 1000 | 300 |
KWT1-106/250 | 1000 | 600 | 250 |
KWT1-106/300 | 1000 | 600 | 300 |
KWT1-108/250 | 1000 | 800 | 250 |
KWT1-108/300 | 1000 | 800 | 300 |
KWT1-108/400 | 1000 | 800 | 400 |
KWT1-1010/300 | 1000 | 1000 | 300 |
KWT1-1012/300 | 1000 | 1200 | 300 |
KWT1-128/300 | 1200 | 800 | 300 |
KWT1-128/400 | 1200 | 800 | 400 |
KWT1-1210/300 | 1200 | 1000 | 300 |
Other sizes avaliable on request .Cut-outs and drilled holes to your specifications.
Should you have any questions or problems, please send e-mail,call us or talk with us by Skype.

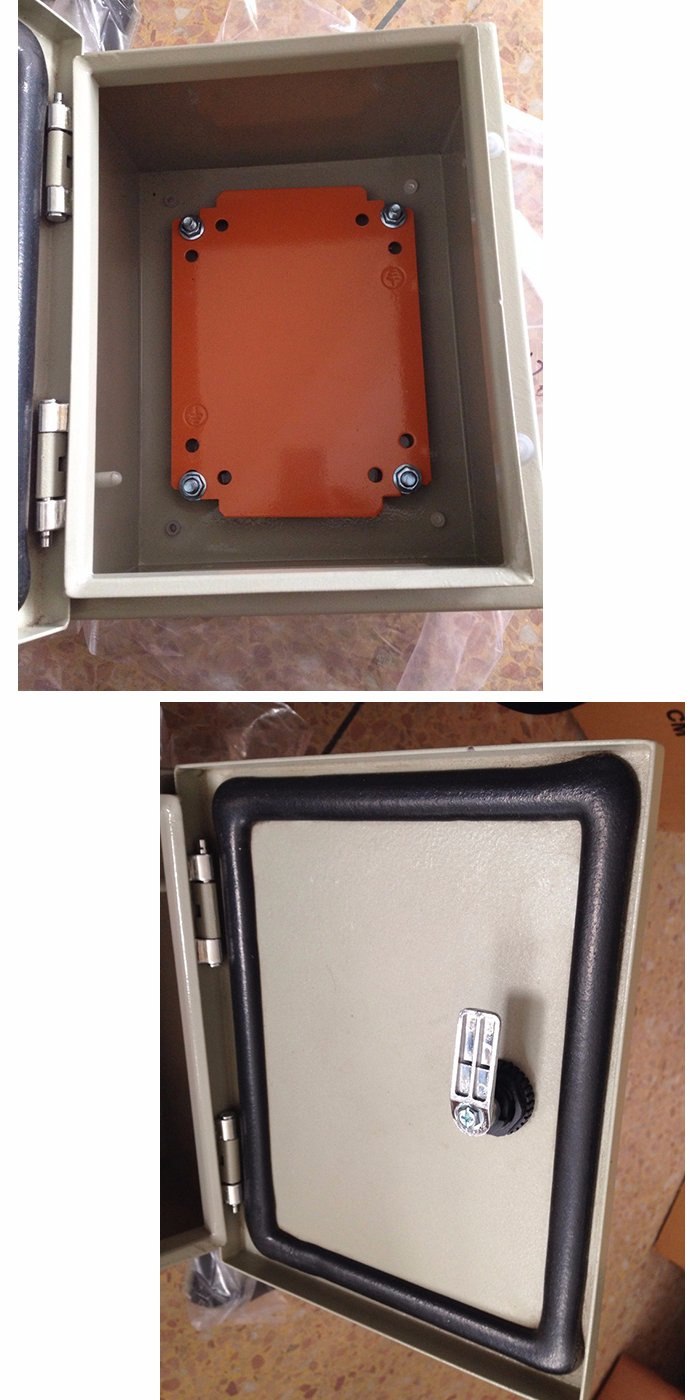

6.Product Picture:
![](/proimages/44f3j00iuFtZPJdMQom/ip65-waterproof-metal-distribution-box-power-metal-box-electrical-enclosure.jpg)
![](/proimages/44f3j00hrFTZVdmSQqw/ip65-waterproof-metal-distribution-box-power-metal-box-electrical-enclosure.jpg)
Warranty Service:
We 100% Gurantee your Satisfaction
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 3 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial
factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.
3. Shipping and handling fees are not refundable for return or exchange items.
