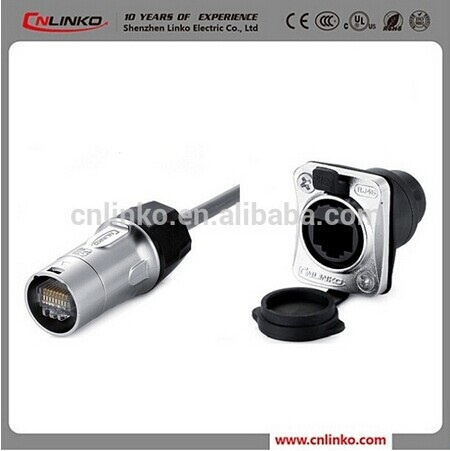

IP65 Waterproof RJ45 Connector/8p8c Ethernet Connector

Name: IP65 Waterproof RJ45 Connector/8p8c Ethernet Connector
Brand: all-electronics-online.com
SKU: 789335605
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 5.2/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YT-RJ45-CPE-11-001 & YT-RJ45-JSX-16-001
Gender:	Male
Application:	UHF

Product Description

IP65 waterproof rj45 connector/8p8c ethernet connector

Product Data Sheet:

YT-RJ45-CPE-11-001, YT-RJ45-JSX-16-001
Specifications:
Connecting mode:	Plug/unplug,
Protection level:	IP65
Cable specification:	0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	8
Current rating(A):	1.5A
Operating voltage(AC.V.rms):	1000V
Contact resistance:	<30mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	1/4 bayonet connect
Prevent the combustion level:	UL94-V0
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Industrial ethernet in audio, business, amusement	- Industrial indoor and outdoor event in network environment
- Live stage action	- DMX lighting

Packaging & Shipping & Payment:
Packaging: 10PCS/Small Box, 100PCS/Middle Box, 240PCS/Carton
Shipping: by express , by air , by sea
Payment: T/T , western union, paypal
