Anji Huacheng Electrics Co., Ltd. >> IP66 304 & 316 Stainless Steel Electrical Box

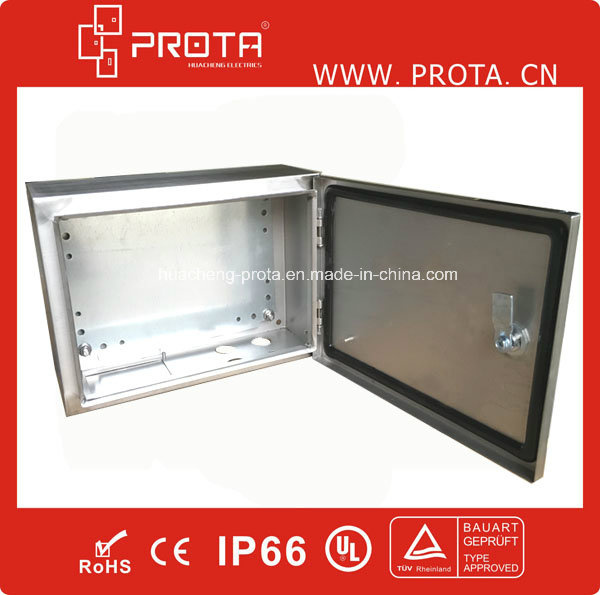

IP66 304 & 316 Stainless Steel Electrical Box

IP66 304 & 316 Stainless Steel Electrical Box
Price: US $ 20-300/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: PTX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: SUS304L&SUS316L Stainless Steel
Surface Finish: Wire Drawing Finish
Thickness: 1.2mm~1.5mm or Customized as Per Your Request
Type: Distribution Metering Box
Structure: Protection
Certification: ISO9001:2008,RoHS
Application Range: Electrical Distribution
Shell Protection Grade: IP66
Brand: Prota

Product Description

Material:Stainless steel 304 or 316
Thickness:Body and door 1.2mm & 1.5mm; mounting plate 1.5mm & 2.0mm
Surface finish:Wire drawing, mounting plate is galvanized
Protection level:IP66(Based on EN60529)
Standard configuration:Body, Front door with foam PU sealing gasket and lock system, mounting plate
Other accessories:Earthing wire, canopy, waterproof cable connection, wall mounting brackets or your requirements.
Packinglabel on box , packing in individual cartons

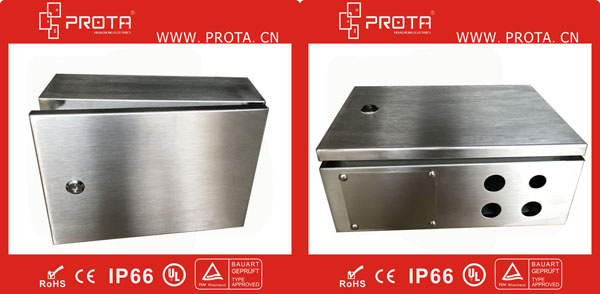

Picture Show

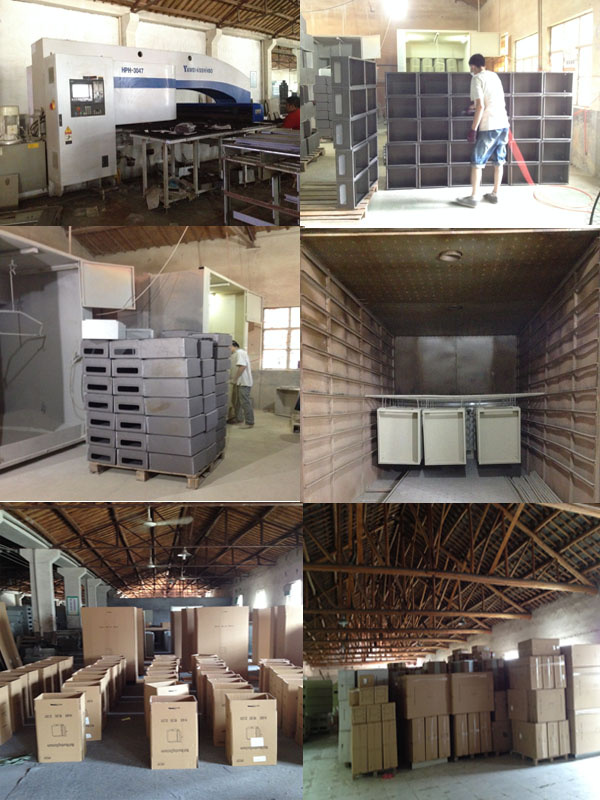

Company Information

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.



As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
