IP66 3p 32A Weatherproof Isolator Switch

Name: IP66 3p 32A Weatherproof Isolator Switch
Brand: all-electronics-online.com
SKU: 669358075
Availability: InStock
Rating: 5 (119 reviews)

Price:	US $ 5.2-6.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	56SW332
Markets:	Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Materials:	PC, Copper
Type:	Low-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor-Low Voltage

Product Description

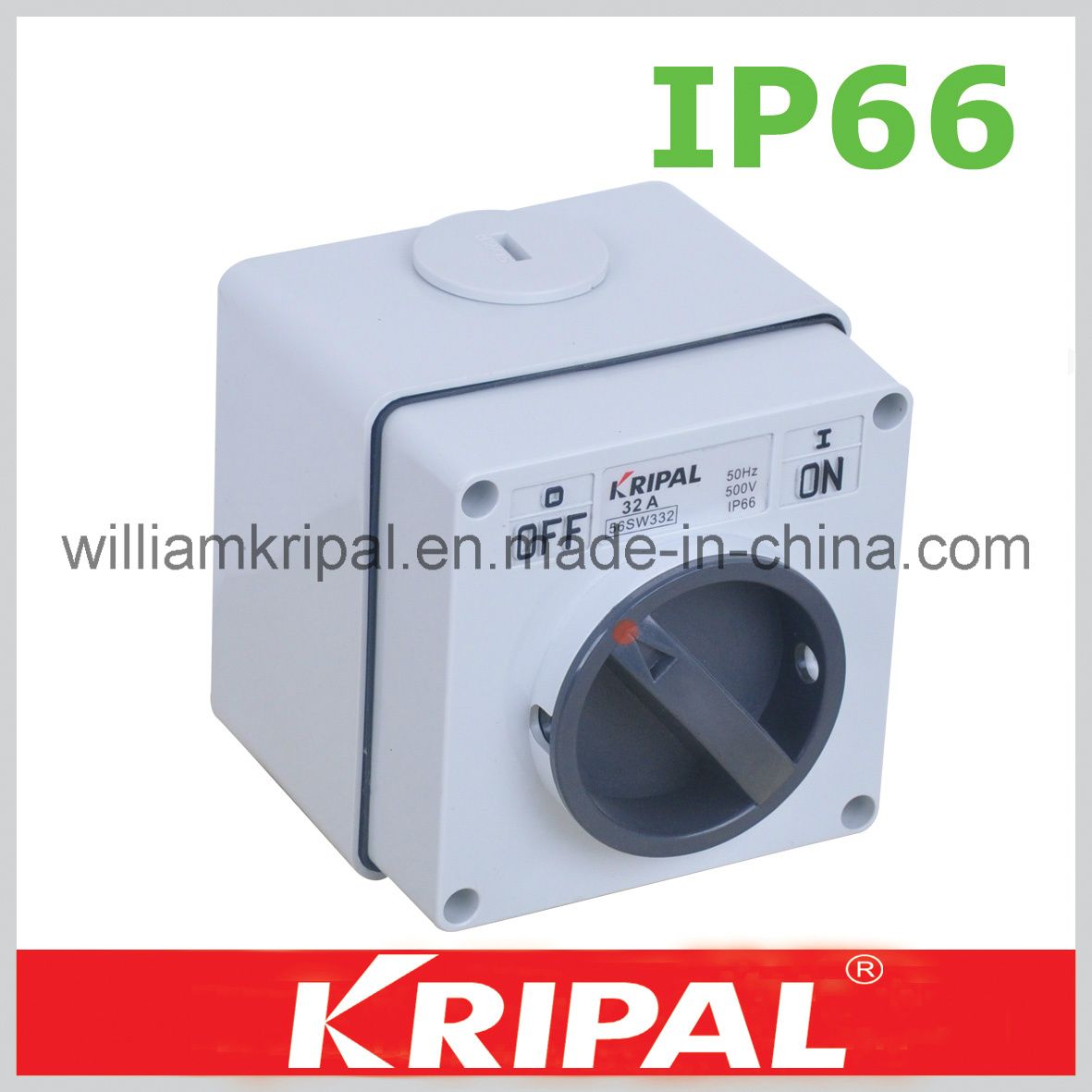

Weatherproof Isolator Switch

56SW332: IP66 500V pin 32A

56 Series Surface Switches are available from 250V, 10A to 500V 50A. They incorporate a positive, rotary switch action. 'ON' and 'OFF' Positions are clearly marked and there is provision for two padlocks.

Hole diameter is 8mm. If locking is required in the 'ON' position, simply drill a hole where necessary.

To provide easier wiring of our 56 Series Three Pole 50A Switch, a deeper two gang enclosure and centrally mounted option (Cat. No. 56SW363/2), allows additional room for wiring associated with this application.

Earth and neutral connectors accommodating 3 x 6mm2 cables are supplied

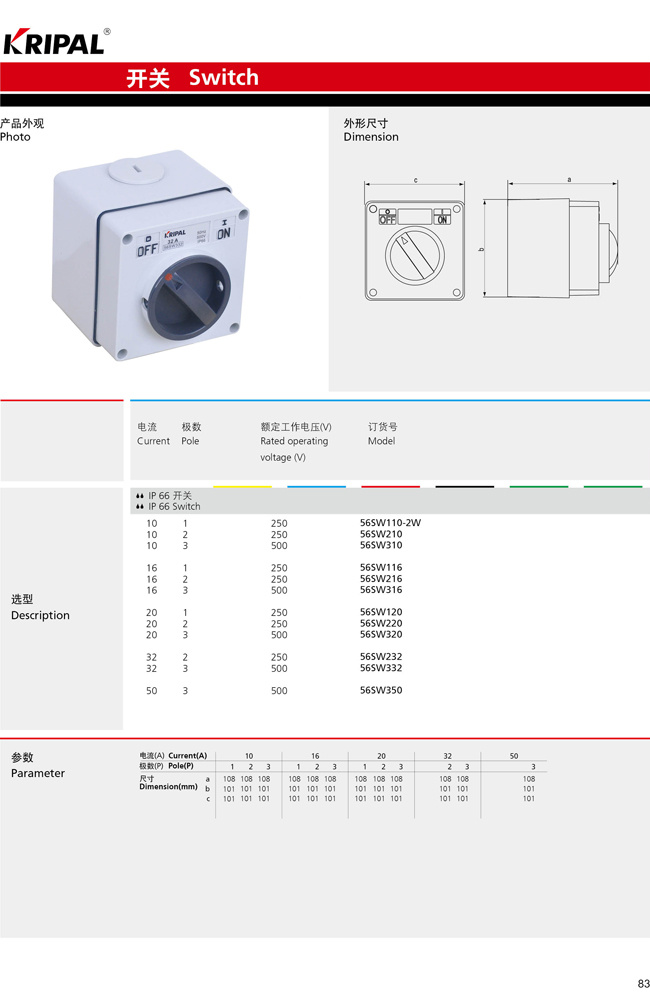

Range:
56SW110, 56SW116, 56SW120, 56SW132, 56SW210, 56SW216, 56SW220, 56S232, 56SW250, 56SW310, 56SW320, 56SW350, 56SW363, 56SW110,

catalogue number		56sw 110	56sw 110/2	56sw 110/21	56sw 210	56sw 116	56sw 216	56sw 120	56sw 220	56sw 132	56sw 232	56sw 150	56sw 250
rated operational voltage ue(-50HZ)	volts	250	250	250	250	250	250	250	250	250	250	250	250
rated thermal current enclosed	amps	10	10	10	10	16	16	20	20	32	32	50	50
description		1 way single pole	2 way single pole	inter mediate changeover	1 way double pole	1 way single pole	1 way double pole	1 way single pole	1 way double pole	1 way single pole	1 way double pole	1 way single pole	1 way double pole
calve cross dictions solid or stranded mm2	max min	0.75 6	0.75 6	0.75 6	0.75 6	1 16	1 16	1 16	1 16	1 16	1 16	6 35	6 35
switch ratings	as3133 250	10AX M50	10AX M50	10AX M40	10AX M40	16AX M120	16AX M120	20AX M150	20AX M150	32AX M180	32AX M180	50AX M250	50AX M250
switch ratings fluorescent	BS3676 250V	8AX	8AX	8AX	8AX	16AX	16AX	20AX	20AX	32AX	32AX	---	---
switch ratings en 60947-3 AC23A 240V AC3 240	KW/AMPS KW/AMPS	--- --- --- ---	--- --- --- ---	--- --- --- ---	--- --- --- ---	2.2 15 1.5 11	2.2 15 1.5 11	3.0 21 2.2 15	3.0 21 2.2 15	4.0 28 3.0 21	4.0 28 3.0 21	5.5 35 4.0 28	5.5 35 4.0 28

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
