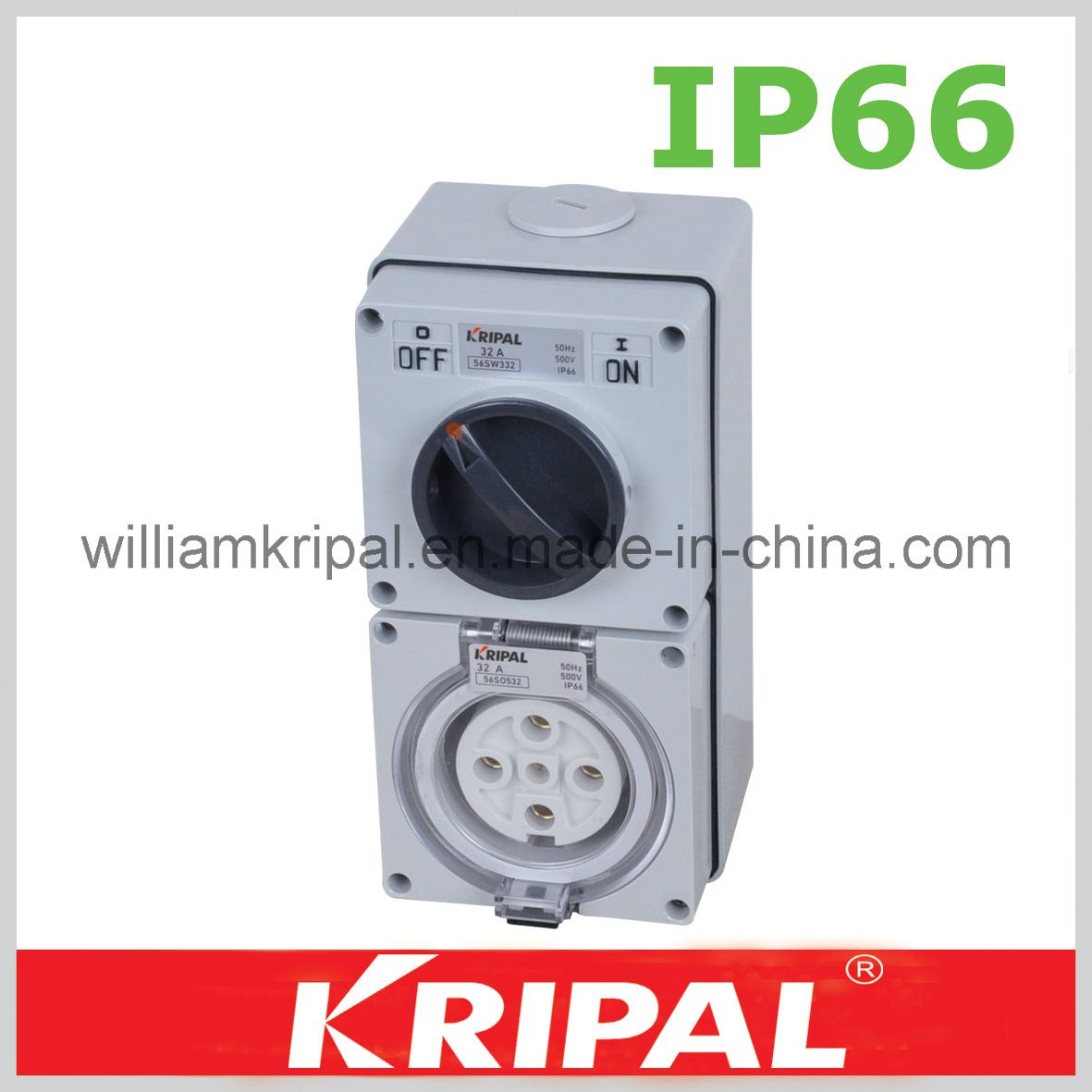

IP66 5pin 32A Weather Protected Switch Socket

Prod Model:	56CV532
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	PC, Copper
Style:	Fixed Socket-Outlet
Type:	With Switch
Grounding:	Standard Grounding
Application:	Residential/General-Purpose
IP Rating:	IP66

Product Description

Weather protected switch socket

IP66 500V 5 pin 32A

Color: RAL7035

Samples; Provided

Warranty: 2 years

Australia Standard combinated switch socket

V0 degree fire-resistant PP material

Used together with 56 series industrial plugs.

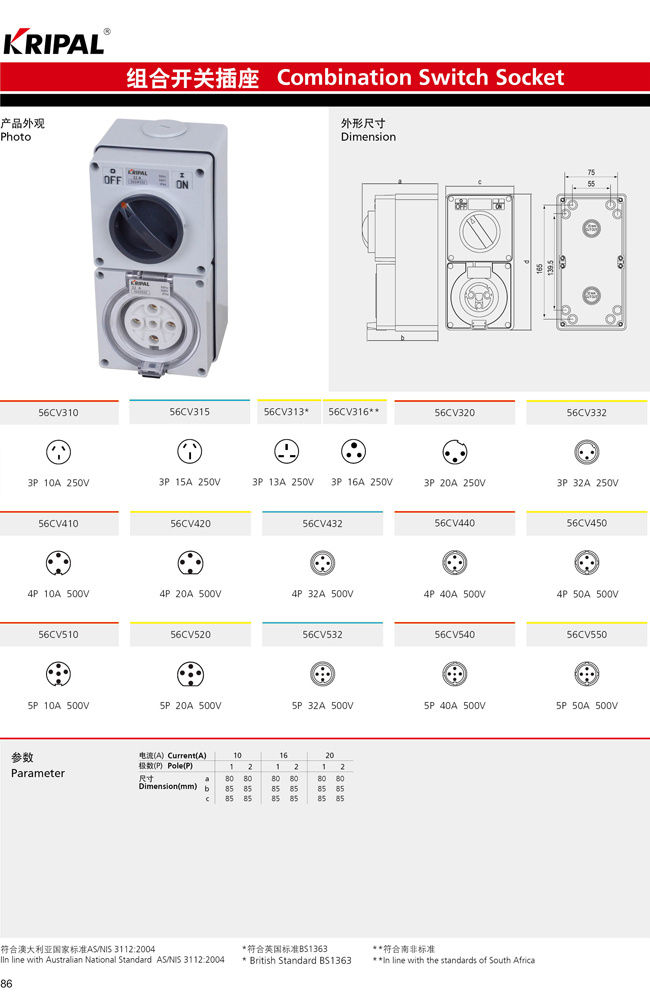

We can supply 56CV series waterproof combination switch based on Australian standard, IP56 &IP66 including:

56CV310, 56CV315, 56CV410, 56CV416, 56CV420, 56CV432, 56CV440, 56CV450, 56CV510, 56CV516, 56CV520, 56V532, 56CV540, 56CV550


All 500V Switched Sockets rated 32A and above have an internal interlocking feature (plugs cannot be withdrawn or inserted when the switch is in the ON position. ) This feature is also available for 16A and 20A upon request.

Optional keylocking OFF facility (quote "CVK" when ord




~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

ZHEJIANG KRIPAL ELECTRIC CO., LTD

Founded: In 1987;
People of the staff: 500;
Engineers: More than 30
QA/QC: More than 20
Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001
The land space of the company: Amounts to 20000m2

What we do: Products' design, mold building, production of parts (injection & punching), assembling, and products' inspection

KRIPAL products:
Isolator switch, changeover switch, rotary switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker AC contactor, thermal overload relay, industrial power distribution box and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
