Name: IP66 Combination Swicthed Sockets (IP66)
Brand: all-electronics-online.com
SKU: 803788885
Availability: InStock
Rating: 4.5 (55 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	IP66
IP Degree:	IP66
Type:	Low-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	Australia Certificate
Common Model:	Ukf
Brand:	Lgl

Product Description

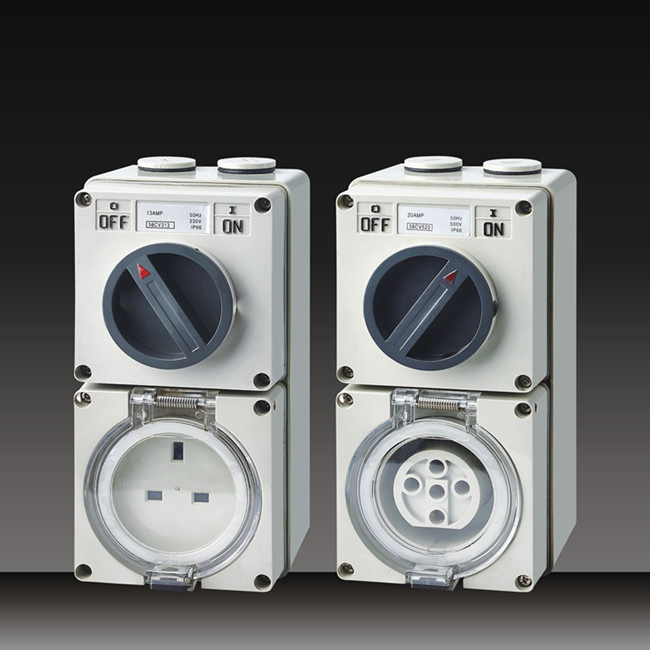

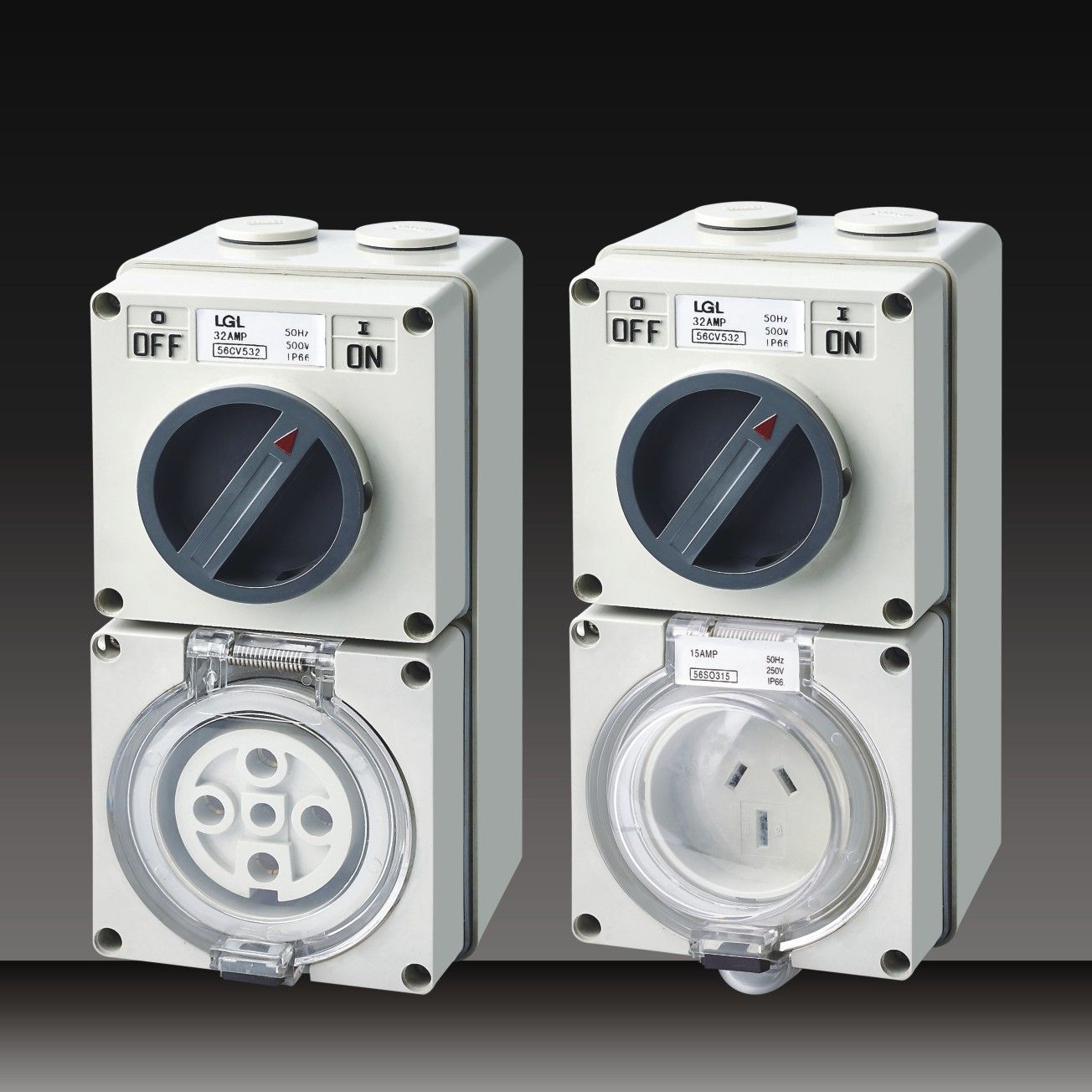

110-250V Combination Switched Sockets
The 56 Series includes an extensive range of one pieces combination switched sockets.
Optional keylocking OFF facility(quote "CVK" when ordering keylock type,e.g.cat no.56CVK310).
For NEON indicator option add "N" after catalogue number.

Catalogue Number		56SO 310	56SO 315	56SO 313	56SO 316/110	56SO 316/240	56SO 320	56SO 332
Rated Operational Voltage Ue(-50Hz)	Volts	250	250	230	110	230	230	250
Rated Thermal Current Enclosed	Amps	10	15	13	16	16	20	32
Description		Switched NZ/Aust Socket	Switched NZ/Aust Socket	Switched British Spuare Pin Socket	Switched CEE17-4h Socket (Yellow)	Switched CEE17-4h Socket (Blue)	Switched AS1323 Socket	Switched AS1323 Socket
Switch Description	1way Single Pole	1way Double Pole	1way Double Pole	1way Double Pole	1way Double Pole	1way Double Pole	1way Double Pole	1way Double Pole
Utilisation Category AS3133 250V AC23A 240V	Amps Amps	10AX M50 15 2.2	16AX M120 15 2.2	10AX M120 15 2.2	16AX M120 15 2.2	16AX M120 15 2.2	20AX M120 21 3.0	20AX M120 28 4.0
Cable Cross Section Solid or Stranded mm²	Min Max	0.75 6	1.0 1.6	1.0 1.6	1.0 1.6	1.0 1.6	1.0 1.6	1.0 1.6
Socket Number of Socket Pins (Including Earth)		3	3	3	3	3	3	3
Cable Cross Section Solid or Stranded mm²	Min Max	10 10	10 10	10 10	10 10	10 10	10 10	10 10
IP Rating		IP66	IP66	IP66	IP66 without plug IP44 with plug	IP66 without plug IP44 with plug	IP66	IP66
