IP66 Distribution Box and Electric Box

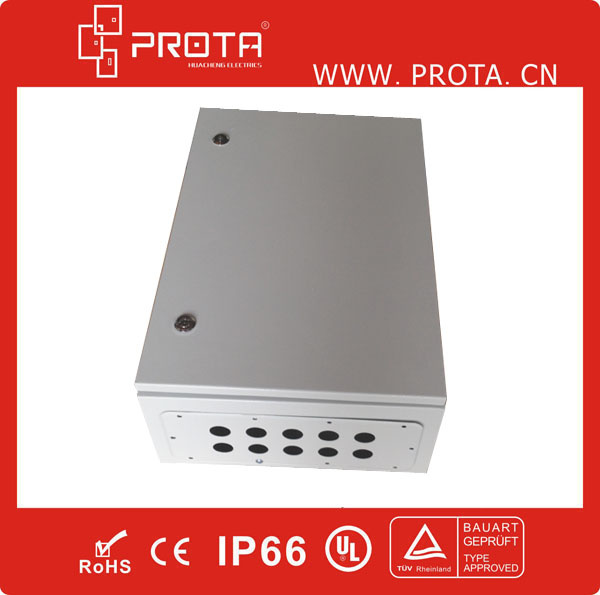

Name: IP66 Distribution Box and Electric Box
Brand: all-electronics-online.com
SKU: 770775255
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 8-180/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cold-Rolled Sheet Steel
Color:	Ral 7032/Ral 7035/Customize
Surface Finish:	Epoxy Thermosetting Powder Coating
Thickness:	1.2mm~1.5mm or Customized as Per Your Request
Type:	Distribution Metering Box
Structure:	Protection
Certification:	ISO9001:2008,RoHS
Application Range:	Electrical Distribution
Shell Protection Grade:	IP66
Brand:	Prota

Product Description

Supply Includes
Mounting plate, locking system, gland plate, sealing gasket and fixing accessories.

Material
Cold-rolled sheet steel

Thickness
Door: 1.2mm or 1.5mm
Body: 1.2mm or 1.5mm
Mounting plate: 1.5mm or 2.0mm
When the enclosure is less than 800mm high, body and door is 1.2mm THK, mounting plate is 1.5mm THK; if over 800mm high, body and door is 1.5mm THK, mounting plate is 2.0mm THK.
Surface Finish:Epoxy thermosetting powder coating, textured finish
Color:RAL 7032, RAL 7035 or as customer's request.
Protection Degree:IP66

Craftsmanship feature
1,There are strengthening strips with pilot holes is welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2,The foam PU sealing gasket inside the door.
3,The door can be opened 130°by the plugging hinges
4,The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.
5,There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.
6,The door can be switched by both left and right side.

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
