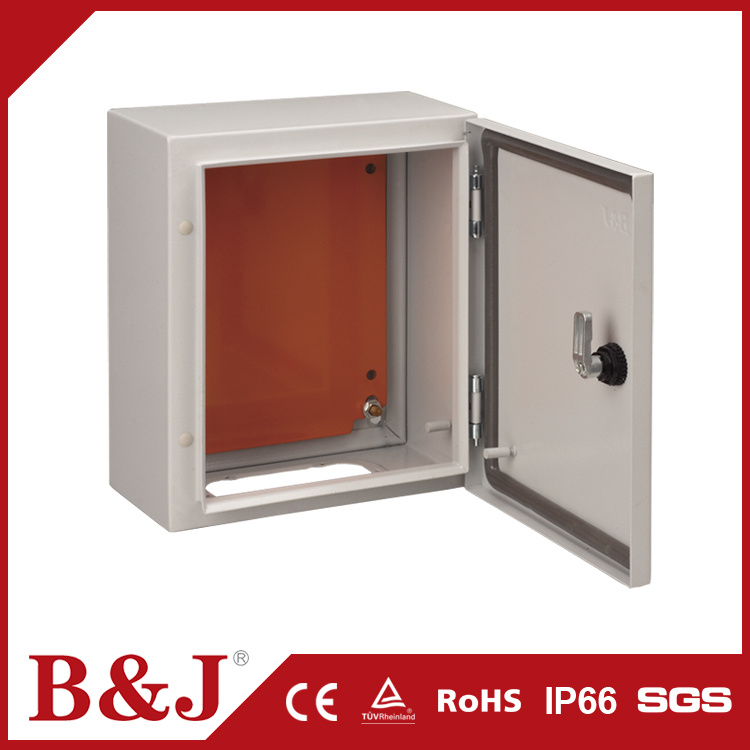

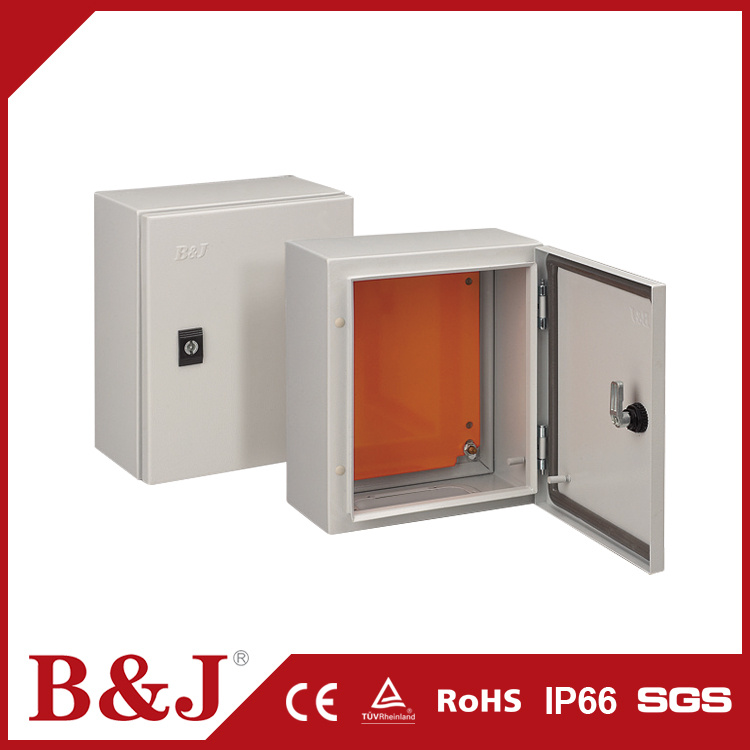

IP66 Distribution Metal Electrical Box
| Price: |
US $ 10-120/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
BJS1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Bjs1 |
| Material: |
Sheet Steel |
| Thickness: |
1.2mm, 1.5mm, 2.0mm |
| Paint Finish: |
Epoxy Polyester Coating |
| Lock: |
Available on Request |
| Color: |
Ral7035 or Ral7032 |
| Customised Size: |
Accepted |
| OEM: |
Offered |
| Accessories: |
Wall Mount Brackets to Be Offered Seperately |
| Type: |
Power |
| Structure: |
Protection |
| Certification: |
RoHS,Ce,TUV,IEC |
| Size: |
From200X200X150mm to 1400X1200X300mm |
| Application Range: |
Power Electrical |
| Shell Protection Grade: |
IP66 |
| Brand: |
B&J |
Product Description
IP656 distribution metal electrical Box
Dimensions(mm):| Reference | Height | Width | Depth | | Reference | Height | Width | Depth |
| BJS1-2020/150 | 200 | 200 | 150 | | BJS1-7040/200 | 700 | 400 | 200 |
| BJS1-2520/150 | 250 | 200 | 150 | | BJS1-7040/201 | 700 | 400 | 300 |
| BJS1-3020/150 | 300 | 200 | 150 | | BJS1-7050/150 | 700 | 500 | 150 |
| BJS1-3020/200 | 300 | 200 | 200 | | BJS1-7050/200 | 700 | 500 | 200 |
| BJS1-3025/150 | 300 | 250 | 150 | | BJS1-7050/250 | 700 | 500 | 250 |
| BJS1-3025/200 | 300 | 250 | 200 | | BJS1-7050/300 | 700 | 500 | 300 |
| BJS1-3025/250 | 300 | 250 | 250 | | BJS1-7060/200 | 700 | 600 | 200 |
| BJS1-3030/150 | 300 | 300 | 150 | | BJS1-7060/250 | 700 | 600 | 250 |
| BJS1-3030/200 | 300 | 300 | 200 | | BJS1-7060/300 | 700 | 600 | 300 |
| BJS1-4030/150 | 400 | 300 | 150 | | BJS1-8060/200 | 800 | 600 | 200 |
| BJS1-4030/200 | 400 | 300 | 200 | | BJS1-8060/250 | 800 | 600 | 250 |
| BJS1-4040/150 | 400 | 400 | 150 | | BJS1-8060/300 | 800 | 600 | 300 |
| BJS1-4040/200 | 400 | 400 | 200 | | BJS1-8080/200 | 800 | 800 | 200 |
| BJS1-5030/150 | 500 | 300 | 150 | | BJS1-8080/250 | 800 | 800 | 250 |
| BJS1-5030/200 | 500 | 300 | 200 | | BJS1-8080/300 | 800 | 800 | 300 |
| BJS1-5030/250 | 500 | 300 | 250 | | BJS1-8080/400 | 800 | 800 | 400 |
| BJS1-5030/300 | 500 | 300 | 300 | | BJS1-1060/200 | 1000 | 600 | 200 |
| BJS1-5040/150 | 500 | 400 | 150 | | BJS1-1060/250 | 1000 | 600 | 250 |
| BJS1-5040/200 | 500 | 400 | 200 | | BJS1-1060/300 | 1000 | 600 | 300 |
| BJS1-5040/250 | 500 | 400 | 250 | | BJS1-1070/200 | 1000 | 700 | 200 |
| BJS1-5040/300 | 500 | 400 | 300 | | BJS1-1070/250 | 1000 | 700 | 250 |
| BJS1-5050/150 | 500 | 500 | 150 | | BJS1-1080/200 | 1000 | 800 | 200 |
| BJS1-5050/200 | 500 | 500 | 200 | | BJS1-1080/250 | 1000 | 800 | 250 |
| BJS1-5050/250 | 500 | 500 | 250 | | BJS1-1080/300 | 1000 | 800 | 300 |
| BJS1-5050/300 | 500 | 500 | 300 | | BJS1-1010/250 | 1000 | 1000 | 250 |
| BJS1-6040/150 | 600 | 400 | 150 | | BJS1-1010/300 | 1000 | 1000 | 300 |
| BJS1-6040/200 | 600 | 400 | 200 | | BJS1-1010/400 | 1000 | 1000 | 400 |
| BJS1-6040/250 | 600 | 400 | 250 | | BJS1-1260/200 | 1200 | 600 | 200 |
| BJS1-6040/300 | 600 | 400 | 300 | | BJS1-1260/250 | 1200 | 600 | 250 |
| BJS1-6050/150 | 600 | 500 | 150 | | BJS1-1260/300 | 1200 | 600 | 300 |
| BJS1-6050/200 | 600 | 500 | 200 | | BJS1-1280/200 | 1200 | 800 | 200 |
| BJS1-6050/250 | 600 | 500 | 250 | | BJS1-1280/250 | 1200 | 800 | 250 |
| BJS1-6050/300 | 600 | 500 | 300 | | BJS1-1280/300 | 1200 | 800 | 300 |
| BJS1-6060/150 | 600 | 600 | 150 | | BJS1-1210/250 | 1200 | 1000 | 250 |
| BJS1-6060/200 | 600 | 600 | 200 | | BJS1-1210/300 | 1200 | 1000 | 300 |
| BJS1-6060/250 | 600 | 600 | 250 | | BJS1-1210/400 | 1200 | 1000 | 400 |
| BJS1-6060/300 | 600 | 600 | 300 | | BJS1-1212/300 | 1200 | 1200 | 300 |
| BJS1-6060/400 | 600 | 600 | 400 | | BJS1-1212/400 | 1200 | 1200 | 400 |
Packaging & Shipping
Packing Details: 1 Piece Per Carton
Delivery Time:10-30days after prepayment
Our Services
Warranty Service:
We 100% Gurantee your Satisfaction
1 Pls report us if there are any problem, we will solve it ASAP.
2 This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.
3 Shipping and handling fees are not refundable for return or exchange items.
Philosophy of the Company:
Excellent design,Excellent make.Excellent service.
FAQ
1.Could I Put My Own Logo On It?
Sure.Customers' Logo can be made by silk-screen printing or embossed.
2.Should I Pay Extra For Logo Printing ?
According to different situation.
3.How About The Quality ?
We have the CE & IP66 Certification issued by TUV.
100% QC in produce process and before package.
4.Could I Buy 1pcs Sample First And Small Order ?
Of course. We accept trial order and small order, especially for new customers.
5.How Much For 1pcs Sample ?
For small size sample 1pcs is free.But need to check the actual stock.
6.If I Have Custom-made Requirement, Do You Have Person To Design According To My Concept?
Certainly.our design team will do for you.
7.How Long To Make A Sample?
7~21days which depends on the samples' complexity.
8.Is The Sample Fee Refundable Or Not?
Sure, refundable once order confirmed.
If there is any product meet your requirement, please contact NOW
Zhejiang B&J Electrical Co., Ltd. With 20 years' experience in electrical industry, is the leading manufacturers of distribution boxes in China, specialized in producing and reserching all kinds of distribution box, wall mounting distribution box, knock down cabinet, floor standing cabinet, stainless steel box and plastic box. We have a professional team of engineers; Salemans. Service group and highly developed production and researching equipments. For our products, we have CE, RoHS, TUV and IP66, IP68 certificate. We established good commercial relationships with company from American, Europe, Asian pacific, Middle East etc. Our comprehensive product range got compliment from our customers of more than 50 coutries and areas around the world
The company aim to 'Excellent design, Excellent manufacture, Excellent service' With our professional technologies, production expertise and spirit of innovation, we can assure you that our products will meet your requirement.
Sincerely hope we can have a good cooperation in nearly future and assisting in growth for mutual benefit.
