IP66 Socket Outlets (IP66)

Prod Model:	IP66
IP Degree:	IP66
Type:	Low-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	Australia Certificate
Common Model:	Ukf
Brand:	Lgl

Product Description

110-250V Socket Outlets

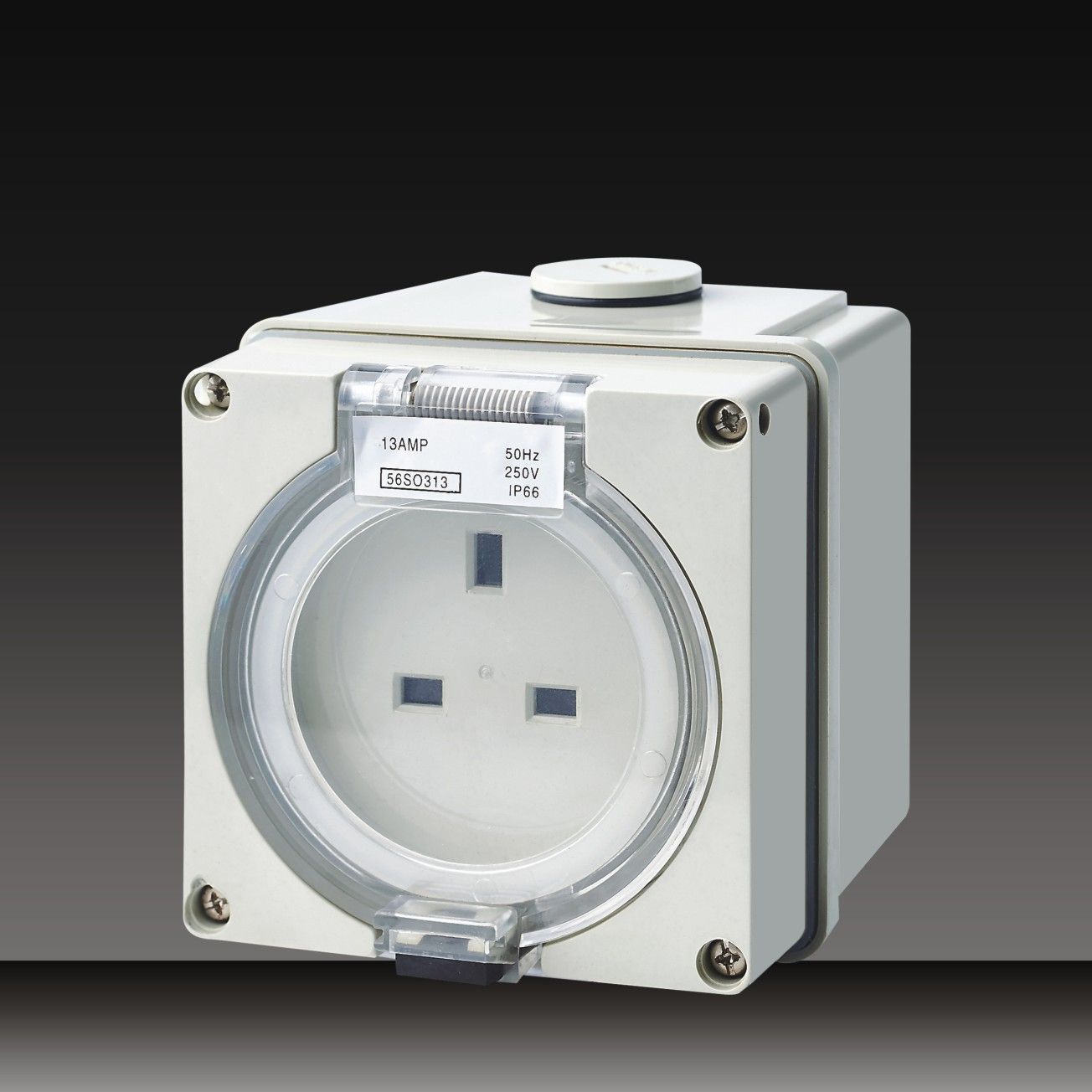

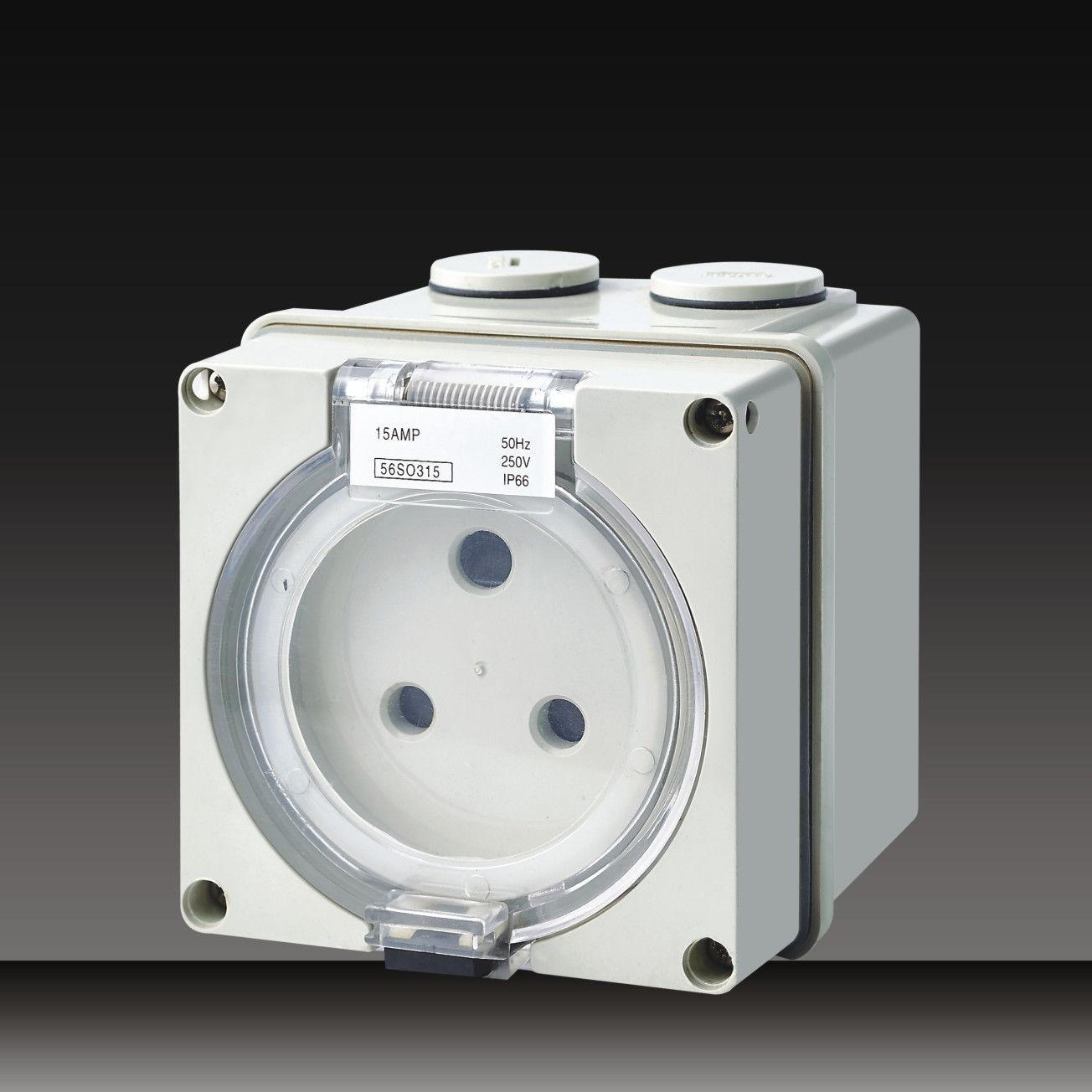

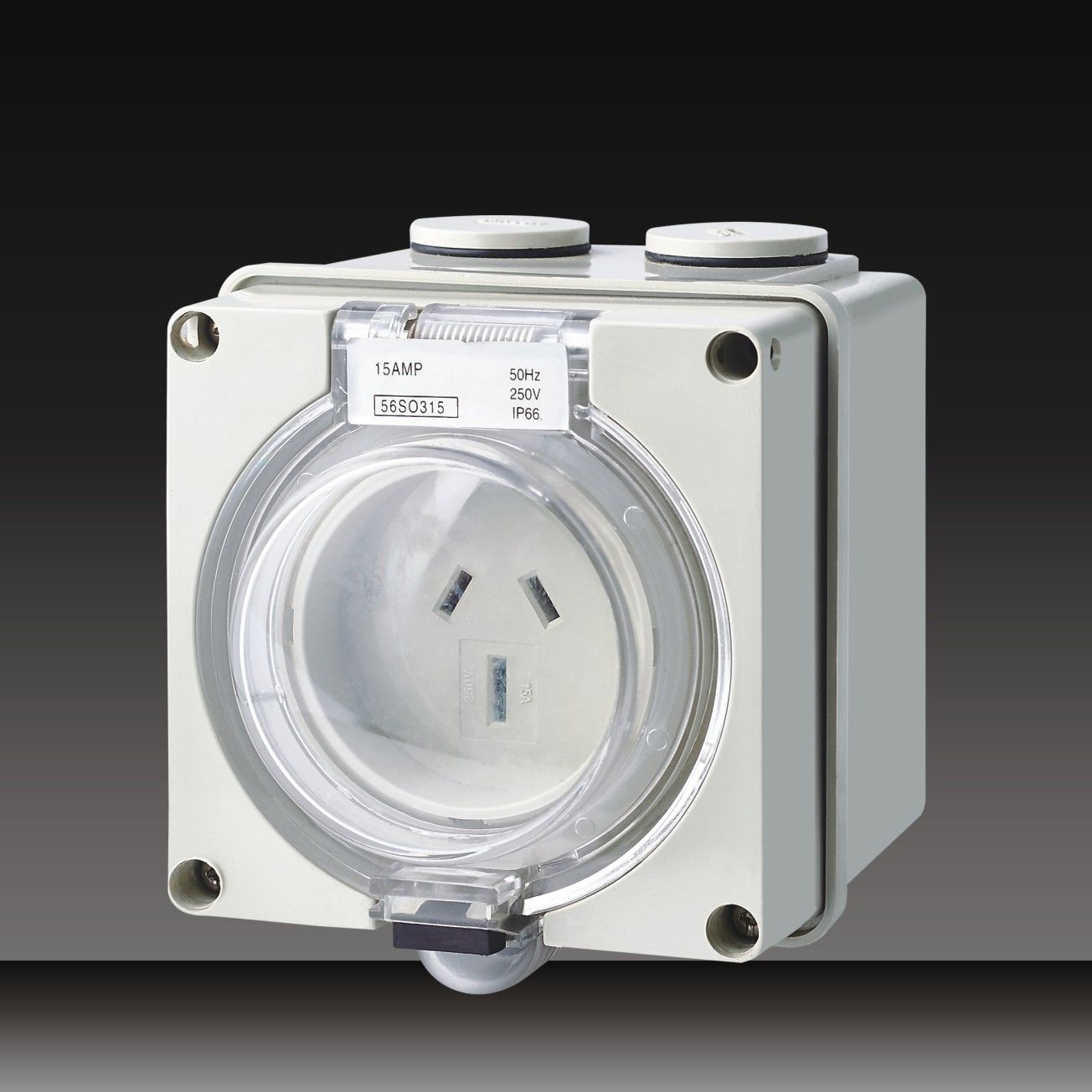

IP56 series 110-250V Socket Outlets feature a patented transparent hinged flap which snaps shut and locks over the socket when the plug is withdrawn,forming an automatic IP66 seal.The flap is transparent so the pin configuration can be readily identified without opening.

Catalogue Number		56SO 310	56SO 310/2	56SO 315	56SO 313	56SO 316/110	56SO 316/240	56SO 320	56SO 332
Rated Operational Voltage  Ue(-50Hz)	Volts	250	250	250	250	110 yellow	230 blue	250	250
Rated Thermal Current  Enclosed	Amps	10	10	15	15	16	16	20	32
Number of Socket Pins  (Including Earth)		3	3	3	3	3	3	3	3
Description		NZ/Aust	NZ/Aust Twin Socket Outlet	NZ/Aust	BS Square Pin	CEE17.6h	CEE17.6h	AS3123	AS3123
Cable Cross Section Solid or Stranded mm²	Min Max	0.75 10	0.75 10	0.75 10	0.75 10	0.75 6	0.75 6	1.0 1.0	1.0 1.0
IP Rating		IP66	IP66	IP66	IP66	IP66 without plug IP44 with plug	IP66 without plug IP44 with plug	IP66	IP66



Catalogue Number		56SO 416	56SO 416K	56SO 420	56SO 432	56SO 435	56SO 440	56SO 450	56SO 516	56SO 520	56SO 532	56SO 535	56SO 540	56SO 550	56SO 616	56SO 716	56SO 720
Rated Operational Voltage  Ue(-50Hz)	Volts	500	500		500	500	500	500	500	500	500	500	500	500	500	500	500
Rated Thermal Current  Enclosed	Amps	16	16	20	32	35	40	50	16	20	32	35	40	50	20	16	20
Number of Socket Pins  (Including Earth)		4	4	4	4	4	4	4	5	5	5	5	5	5	5	7	7
Cable Cross Section Solid or Stranded mm²	Min Max	1 10	1 10	1 10	1 16	1 16	1 16	1 25	1 10	1 10	1 16	1 16	1 16	1 25	1 10	1 10	1 10
IP Rating		IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66

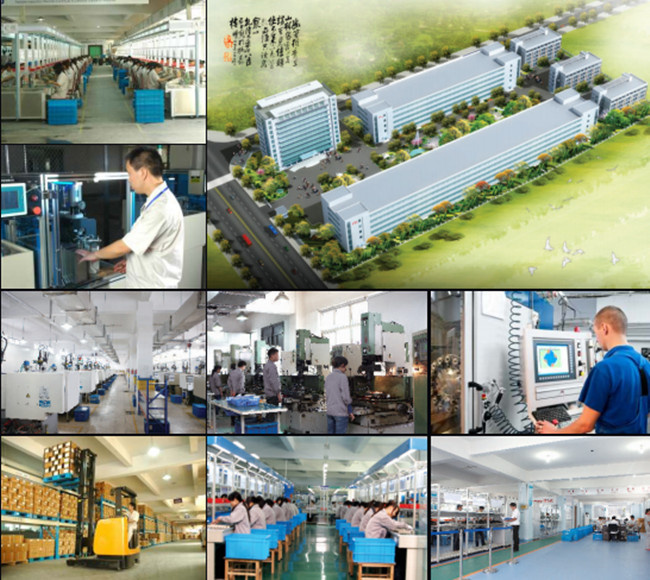

COMPANY PROFILE
