IP66 Waterproof Socket and Plugs

IP66 Waterproof Socket and Plugs
Price: Negotiable/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T
Prod Model: AB66P
Function: Waterproof Plug
Certification: SAA
Standard: Australia
Shape: 3,4,5
Interface Type: Power Supply
Brand: Tx

Product Description

Product Description
Australia 56PA332 32A 3 Pin 250V 500V Industrial Plug Socket


Model No

Description (56PA series)

Phase

Available

Voltage

IP Degree

56PA320

3Pin

20A

250/500V

IP66

56PA332

3Pin

32A

250/500V

56PA410

4Pin

10A

500V

56PA420

4Pin

20A

500V

56PA432

4Pin

32A

500V

56PA440

4Pin

40A

500V

56PA450

4Pin

50A

500V

56PA510

5Pin

10A

500V

56PA520

5Pin

20A

500V

56PA532

5Pin

32A

500V

56PA540

5Pin

40A

500V

56PA550

5Pin

50A

500V


2. Australia plug,three phase 3 round pin angle plug,australia type plug Features
Australia plug,three phase 3 round pin angle plug,australia type plug(56PA332) industrial socket with SAA
1, Gland Nut(with 50mm threaded cable entry)
For alternative facility termination
Note: IP Ratings only apply to cable terminations as per wiring instructions
2, Cable Gland
Very flexible with positive grip to ensure reliable sealing
3, IP66 Rating(in accordance with AS1939)
When engaged in the 66C switched socket outlet,with the hydrant ring fully engaged, an international protection  rateing of IP66 is achieved
4, Internal Cable Clamp
Grips two ways and is fast-fixing,preventing the cables(s) from twisting
5, Transparent Polycarbonate Body
Allows instant examinations of connections
6,Stainless steel Combination Head Screws
Easy installation and corrosion resistance
7, Sturdy Terminal Housing
For years of Reliable service and durability
8,Wide lock Ring
Can be unscrewed and tightened with ease,even when hands are gloved. Provides full sealing with a built-in, sponge-like gasket
9,Clear Pin Surround
Providing quick and sure location of plug in socket and the protection of pins

Single phase 3 round pin angle plug
Availables in...20A. 32A
Voltage: 250/500V
Code: 56PA320/56PA332

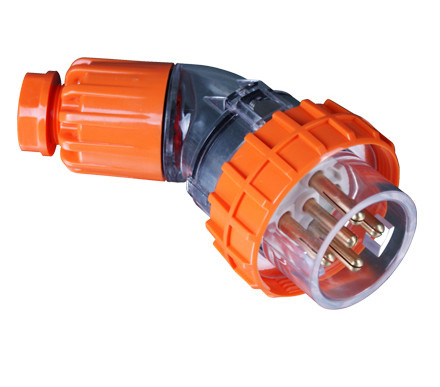

Three phase 4 round pin angle plug
Availables in 10A. 20A. 32A. 40A. 50A
Voltage: 500V
Code: 56PA410/56PA420/56PA432/56PA440/56PA450

Three phase 5 round pin angle plug
Availables in 10A. 20A. 32A. 40A. 50A
Voltage: 500V
Code: 56PA510/56PA520/56PA532/56PA540/56PA550

Certificates: SAA, IQNET, CQC
Other protections: waterproof, UV resistance, Dust-proof, Anti-corrosion, Pollution proof.
Package: inner color box, outside standard carton. 54.5*23.5*45cm/carton, 100Pcs/carton.
Standards of 56 series plugs:
Pin configurations for plugs, sockets and switched socket outlets comply with AS/NZS3123 and switches with appropriate parts of AS/NZS3947.3 & AS/NZS3133.
Features of 56P plugs series:

1, Gland Nut(with 50mm threaded cable entry)
For alternative facility termination.
Note: IP Ratings only apply to cable terminations as per wiring instructions
2, Cable Gland
Very flexible with positive grip to ensure reliable sealing
3, IP66 Rating(in accordance with AS1939)
When engaged in the 66C switched socket outlet, with the hydrant ring fully engaged, an international protection rateing of IP66 is achieved
4, Internal Cable Clamp
Grips two ways and is fast-fixing, preventing the cables(s) from twisting
5, Transparent Polycarbonate Body
Allows instant examinations of connections
6, Stainless steel Combination Head Screws
Easy installation and corrosion resistance
7, Sturdy Terminal Housing
For years of Reliable service and durability



8, Wide lock Ring
Can be unscrewed and tightened with ease, even when hands are gloved. Provides full sealing with a built-in, sponge-like gasket

9, Clear Pin Surround
Providing quick and sure location of plug in socket and the protection of pins

Note - IP Ratings only apply to cable terminations as per wiring instructions.

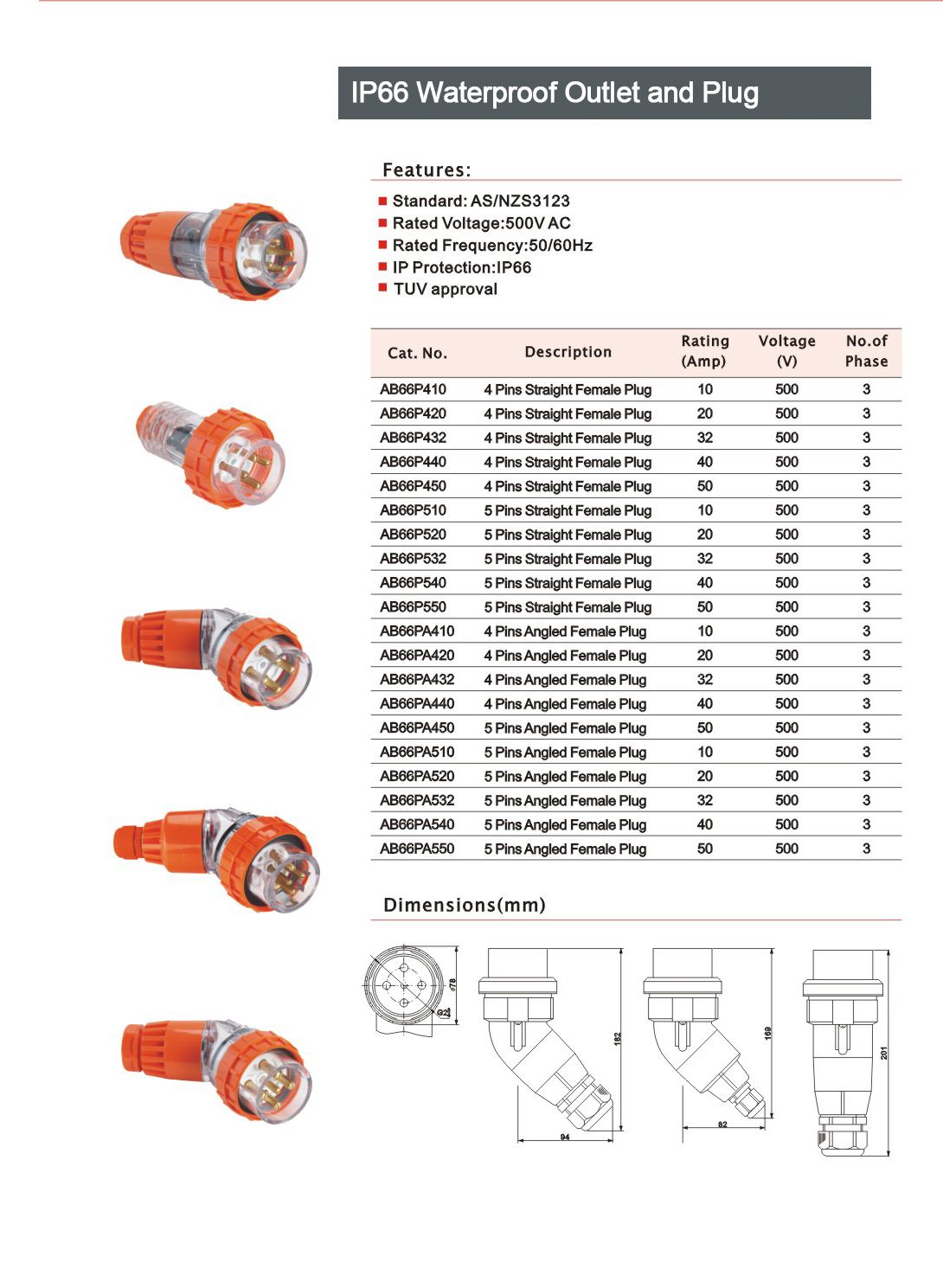

Plug Configurations of 56P Industrial Plugs

specification:



Moderl NODescriptionIP Degree
56PA3203 Pin 20A250V/500VIP66
56PA3323 Pin 30A250V/550VIP66
56PA4104 Pin 10A500VIP66
56PA4204 Pin 20A500VIP66
56PA4324 Pin 32A500VIP66
56PA4404 Pin 40A500VIP66
56PA4504 Pin 50A500VIP66
56PA5105 Pin 10A500VIP66
56PA5205 Pin 20A500VIP66
56PA5325 Pin 32A500VIP66
56PA5405 Pin 40A500VIP66
56PA5505 Pin 50A500VIP66
