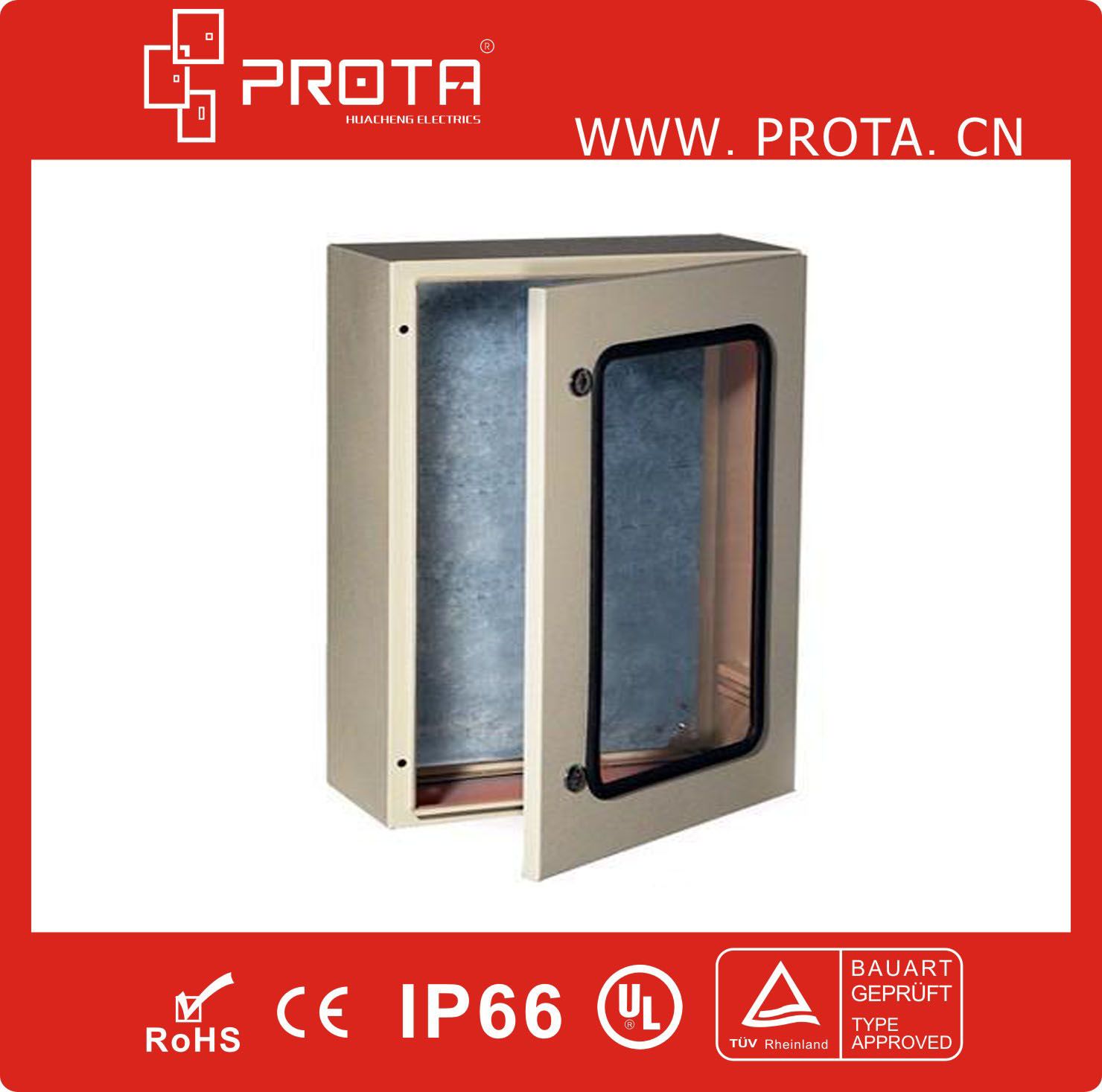

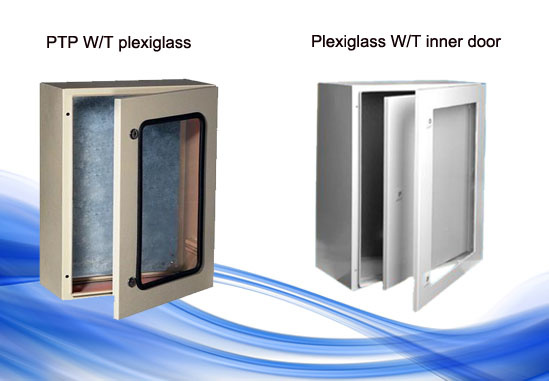

IP66 Waterproof Wall Mounted Enclosure with Plexiglass Inner Door

Name: IP66 Waterproof Wall Mounted Enclosure with Plexiglass Inner Door
Brand: all-electronics-online.com
SKU: 769100065
Availability: InStock
Rating: 4.8 (49 reviews)

Price:	US $ 18-260/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PTP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Finish:	Textured Powder-Coated, Gloss Coating
Material:	Cold Rolling Steel, 304AISI/316L Stainless Steel
Color:	Ral 7032/Ral 7035/Customize
Surface Finish:	Epoxy Thermosetting Powder Coating
Thickness:	1.2mm&1.5mm
Type:	Distribution Metering Box
Structure:	Protection
Application Range:	Electrical Distribution
Shell Protection Grade:	IP66

Product Description

Standard Configuration
1,Standard configuration: mounting plate, locking system, galvanized mounting plate, gland plate, sealing gasket and fixing accessories.

2,Material and thickness: cold-rolled sheet steel

Door: 1.2mm or 1.5mm

Body: 1.5mm or 2.0mm

Mounting plate: 1.5mm or 2.0mm

When the enclosure is less than 800mm high, body and door is 1.2mm THK, mounting plate is 1.5mm THK; if over 800mm high, body and door is 1.5mm THK, mounting plate is 2.0mm THK.

3,Surface: epoxy thermosetting powder coating, textured finish

4,Color: RAL 7032, RAL 7035

5,protection degree: IP 66

Craftsmanship Feature

1,There are strengthening strips with pilot holes is welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)

2,The foam PU sealing gasket inside the door.

3,The door can be opened 130°by the plugging hinges

4,The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.

5,There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.

6,The door can be switched by both left and right side.

Selection Table

Model No.	H(mm)	W(mm)	D(mm)
PTP2215	200	200	150
PTP3215	300	200	150
PTP3315	300	300	150
PTP4315	400	300	150
PTP5315	500	300	150
PTP32520	300	250	200
PTP3320	300	300	300
PTP4420	400	400	200
PTP5520	500	500	200
PTP6620	600	600	200
PTP7620	700	600	200
PTP8620	800	600	200
PTP32525	300	250	250
PTP4325	400	300	250
PTP5325	500	300	250
PTP5425	500	400	250
PTP6425	600	400	250
PTP7525	700	500	250
PTP8625	800	600	250
PTP9625	900	600	250
PTP4330	400	300	300
PTP5530	500	500	300
PTP6430	600	400	300
PTP7630	700	600	300
PTP8630	800	600	300
PTP9630	900	600	300
PTP4440	400	400	400
PTP5540	500	500	400
PTP6640	600	600	400
PTP6540	600	500	400
PTP7640	700	600	400

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
