Zhejiang APEKS Electric Co., Ltd. >> IP66 Watertight 24 Modules Socket Box/Distribution Box/ Power Box

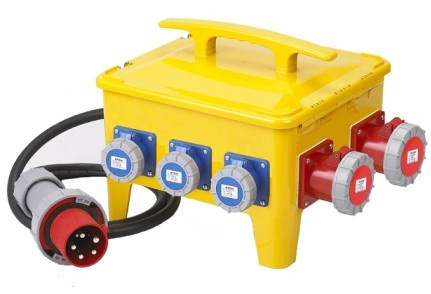

IP66 Watertight 24 Modules Socket Box/Distribution Box/ Power Box

IP66 Watertight 24 Modules Socket Box/Distribution Box/ Power Box
Price: US $ 150-300/Piece
Trade Terms: FOB
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: AP2400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ampere: 16A/32A/63A
Structure: Protection
Type: Power Distribution
Certification: Ce
Form: Thermoplastic Injection
Operation Voltage: 230V/400V
Size: 370X340X330mm
Application Range: Products Are Designed Especially for Entertainment
Shell Material: Polycarbonate
Shell Protection Grade: IP66
Brand: Apeks or OEM

Product Description

AP2400

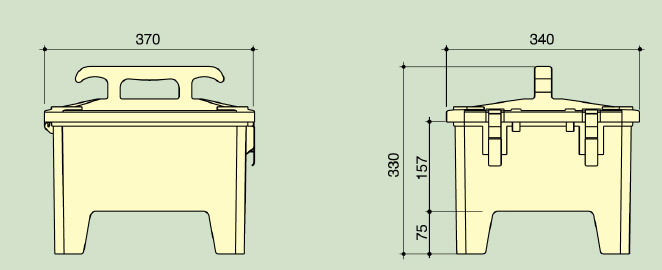

Dimensions:


Trade Mark: APEKS
Pre-wired for Installation
Fusing under the cover
Can be locked by a padlock
Protection degree: IP66 (waterproof)(watertight)
Material: Flame Retardant Thermoplastic RoHS Reach
Operation Temperature: -25C~+40C
Certificates: S, CB, CE, TUV, ISO9001: 2008, RoHS, REACH
Standards: IEC/EN60439-1, IEC/EN60439-4
Package: Polybag + 1pcs/Inner Box + 1pcs/Export carton

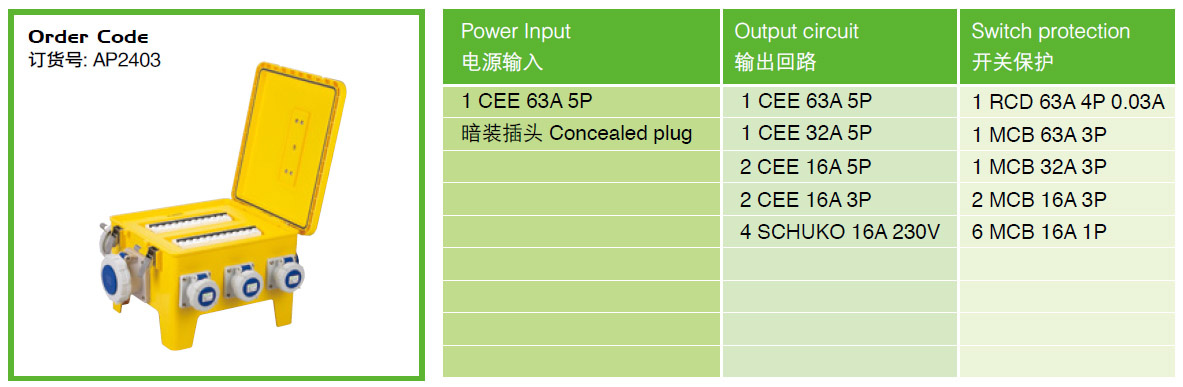

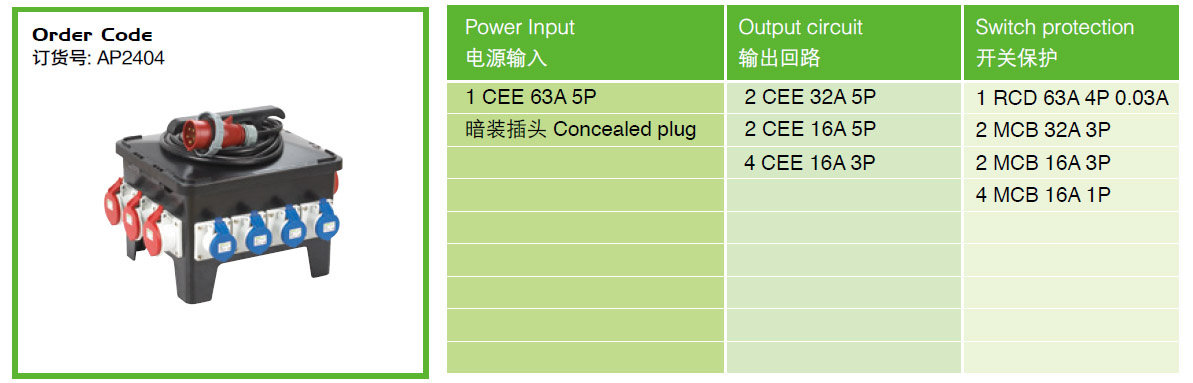

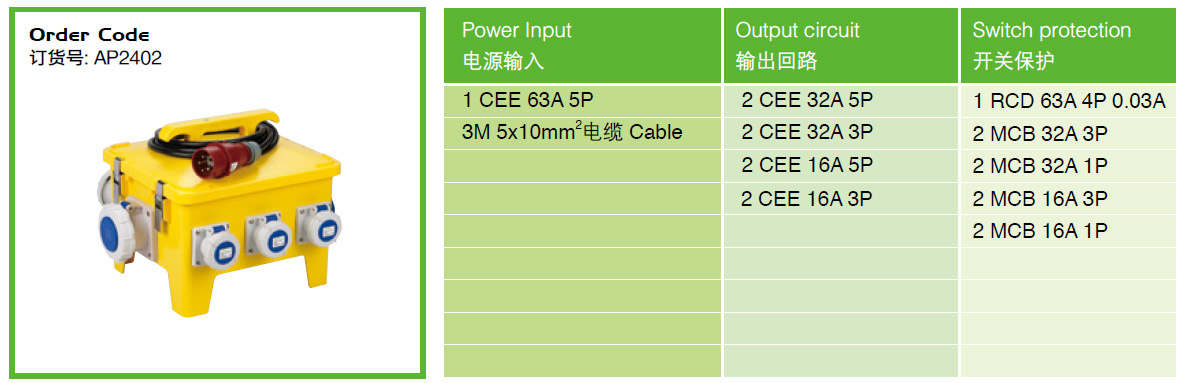

Sample Configuration:
Input:
1 CEE plug 63A 3P+N+E 415V~IP67
5G10.0 sq mm cable 2.2M
Output:
2 Socket 32A
2 Socket 16A
2 Socket 16A
2 Socket 32A H
Protection fuse
1 RCD 63A 4P 0.03A 400V~
2 MCB 32A 3P 400V~
2 MCB 16A 3P 400V~
2 MCB 32A 1P 230V~
2 MCB 16A 1P 230V~
The box could include 24pcs of 1P MCB( the width of 1P MCB is 18mm)
The Socket(SCHUKO) could be changed to British, French, Danish, Swiss and Australian Sockets

Model Selection:





OEM and Customization is available and welcomed!

Apeks Electric Co., Ltd. is a specialist for industrial plugs, socket outlets and combination of distribution board system in China. We offer industrial electrical connection solutions in various fields, such as buildings and public works, mining, harbors, industrial equipments, transportation, chemical industry, entertainment/recreation and so on.

Our products cover industrial plugs and socket, aviation plug and connector, heavy duty connector, mini circuit breaker, distribution boxes and rotary switch, most of which have got the CE, CB, CCC and SEMKO approval and strictly conform to the international standard like IEC60309, IEC60898, IEC60947 etc. With reliable quality, competitive price, prompt delivery and good service, our products enjoy high reputation in the international market.

Apeks Electric Co., Ltd., an ISO9001 certificated enterprise, owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained technicians and skilled workers. We can self-design, develop and manufacture standard product ranges. Furthermore, we work out "tailor-made" solutions to meet the specific needs for our customers. We use latest generation materials and exploit the most innovating technologies in order to manufacture new products of high performances and to benefit existing products.

We have an individual mould workshop which has capacity in mold development, design, manufacturing and plastic injection. It produces about 300 sets of various types of mold per year. Standard workshop covers 2000 square meters, and it is well equipped with advanced CAD/CAM facilities, including CNC machining centers, EDM machine, wire-cutting machine, precision milling machine and grinding machine, various lathes and welding equipment. It has 20 staffs now including 5 professional engineers. Most of them have many years working experience in Taiwan-funded mould company. The technician team uses PRO-E, Solidworks, and Auto-CAD for moulds and plastic parts design, with strong mould design and drawing reading ability. These ensure good technical communication with our customers. Skilled and qualified QC can ensure the quality of our products.

Never losing sight of the need for safety, energy conservation, environmental protection and personal service, we promise to provide for and protect what came before us and what must remain after us. At Apeks, we look forward to serving you and believe that You simply get more when you choose Apeks.
