IP67 16A 2p+E Interlocked Socket Switch

Name: IP67 16A 2p+E Interlocked Socket Switch
Brand: all-electronics-online.com
SKU: 738059255
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	7012
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials:	PC, Nylon, Copper, Silver
Pole:	3
Function:	Industry
Rated Continuous Current:	16A

Product Description

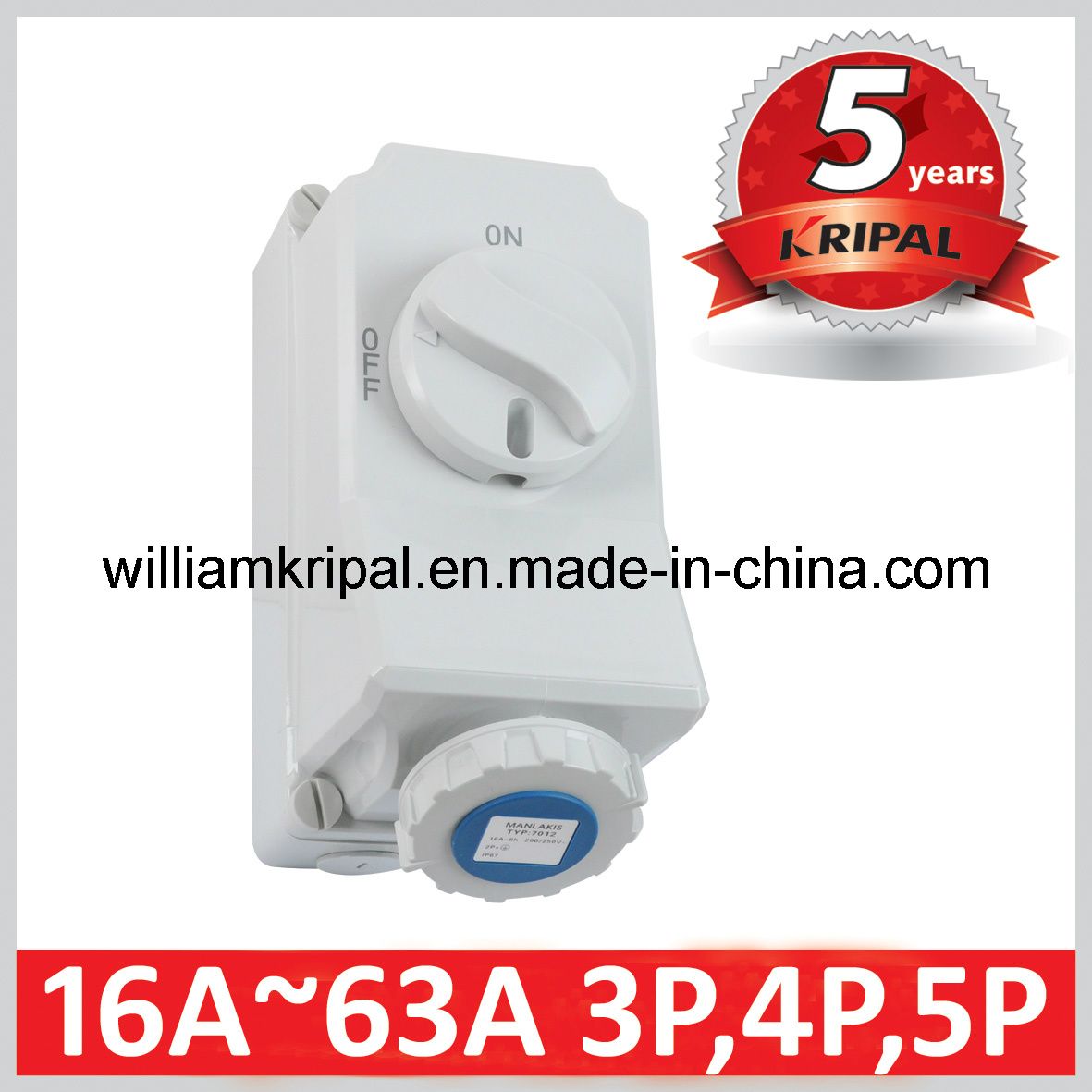

IP67 interlocked socket switch

1. Rated current: 16A;

2. No. Of poles: 2P+E

3. Voltage range: 220V-250V;

4. Power type: Single Phase

5. Protection degree: IP67;

6. Conductor cross-sectional area (mm2): 1.5-4

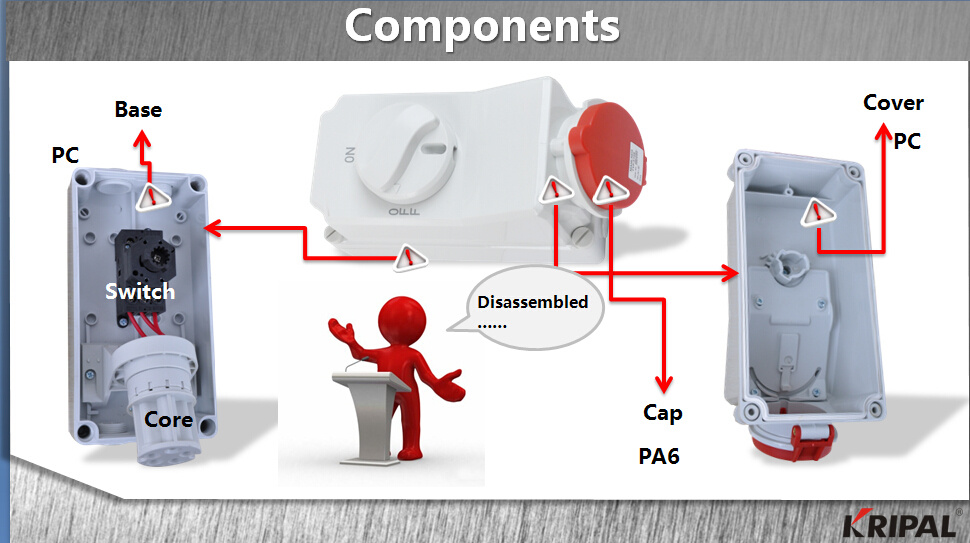

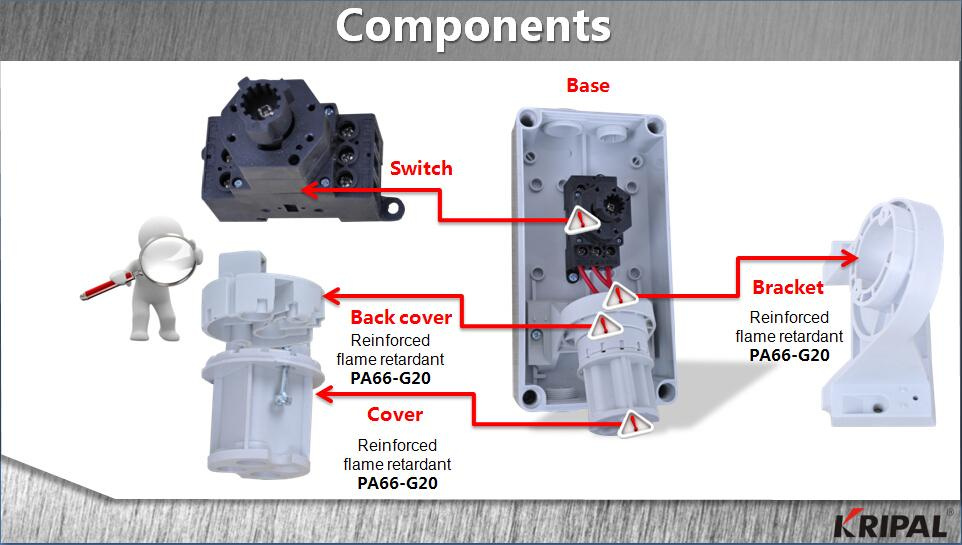

7. Material: NYLON PA6, PC, copper

8. Color: RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).

9. Advantages: Waterproof, dust-proof, impact resistance, anti-corrosion

10. Standards: EN/IEC60309-2, DIN VDE 0623

11. Warranty: Five years

12. Samples: Provided freely

13. Lead time: 20 days

14. Payment terms: T/T, L/C

We can provide full range of industrial plug socket
Protection	IP44/IP67
Current	16A, 32A, 63A, 125A, 250A, 420A
Pins	2P+E, 3P+E, 3P+N+E
Voltage	20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
PLUG & SOCKET	Low voltage plug socket <50V
	Industrial plug, industrial socket
	Wall mounted socket, wall mounted plug
	Panel mounted socket, panel mounted plug
	Interlocked switched socket
BOX	Industrial portable socket box
	Industrial plastic socket box
	Power maintenance box (stainless)
	Power maintenance box (plastic)
	Industrial lighting box (plastic)
	Industrial lighting box (metal)
	Distribution box for exhibition box
	T. V / Film power distribution box
	Distribution box with power and compress air outlet
Accessories	Cap for 16A, 32A, 63A, 125A plug

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
