IP67 1p/2p/3p/4p 20A/32A/45A/63A Waterproof Isolation Switch

Name: IP67 1p/2p/3p/4p 20A/32A/45A/63A Waterproof Isolation Switch
Brand: all-electronics-online.com
SKU: 786609935
Availability: InStock
Rating: 4.8 (133 reviews)

Price:	US $ 5.8-6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UKF
Material:	ABS/PC
Conductor Material:	Copper
IP Class:	IP67
Rated Voltage:	250VAC
Type:	Low-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Electric
Grounding:	Single Ground
Series:	Single-Stage
Run:	Turn the Horizontal
Switching Mode:	Single Throw-in
Certification:	CE
Brand:	Deson
Common Model:	Ukf

Product Description

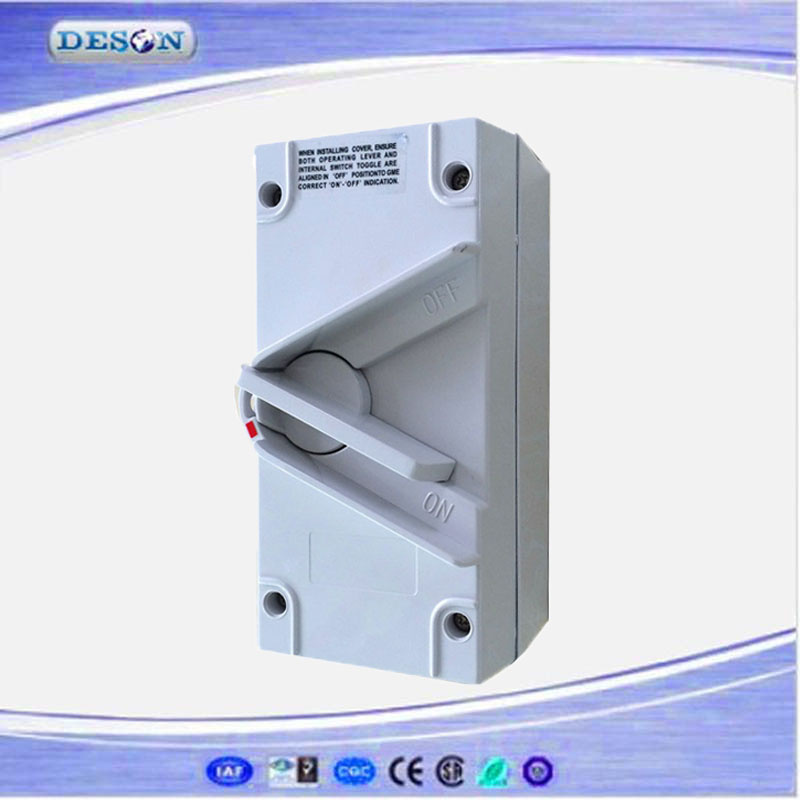

IP67 1P/2P/3P/4P 20A/32A/45A/63A Waterproof Isolation Switch

DESCRIPTION

UKF&UKW isolator is rigidly built to withstand more than just the vagaries of the weather,

it is designed also for frequent switching even on severe load such as switching of motor loads

or other highly inductive load.Suitable to be mounted in outdoor and indoor for diverse environmen

FEATURES

1,Switching ON&OFF on-Load

2,Padlockable handle with 7mm hole in OFF position

3,Dual 25mm threaded conduit entries on top and bottom

4,IP66 rating prevents from heavy dust and water ingress

TECHNICAL PARAMETER

1,Standard:IEC/EN60947-3,AS/NZS 3947

2,Utilization Category:AC22A/A23A

3,Rated Voltage:250/440V AC

4,Number of Pole:1,2,3,4 pole

5,Rated Frequency:50/60HZ

6,IP Potection:IP66

SPECIFICATION

Cat.No.	Rating(Amps)	Designation	IP Rating
UKF120	20A	single pole	IP66
UKF132	32A
UKF145	45A
UKF163	63A
UKF220	20A	double pole	IP66
UKF232	32A
UKF245	45A
UKF263	63A
UKF320	20A	triple pole	IP66
UKF332	32A
UKF345	45A
UKF363	63A
UKF420	20A	four pole	IP66
UKF432	32A
UKF445	45A
UKF463	63A
