IP67 24V 30W LED Waterproof Switching Power Supply

Name: IP67 24V 30W LED Waterproof Switching Power Supply
Brand: all-electronics-online.com
SKU: 690852711
Availability: InStock
Rating: 5 (71 reviews)

Price:	US $ 3.8-5.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-30-24
IP Code:	IP67
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Item Name:	24V Power Supply
Size:	2203020mm
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Brand:	Weho

Product Description

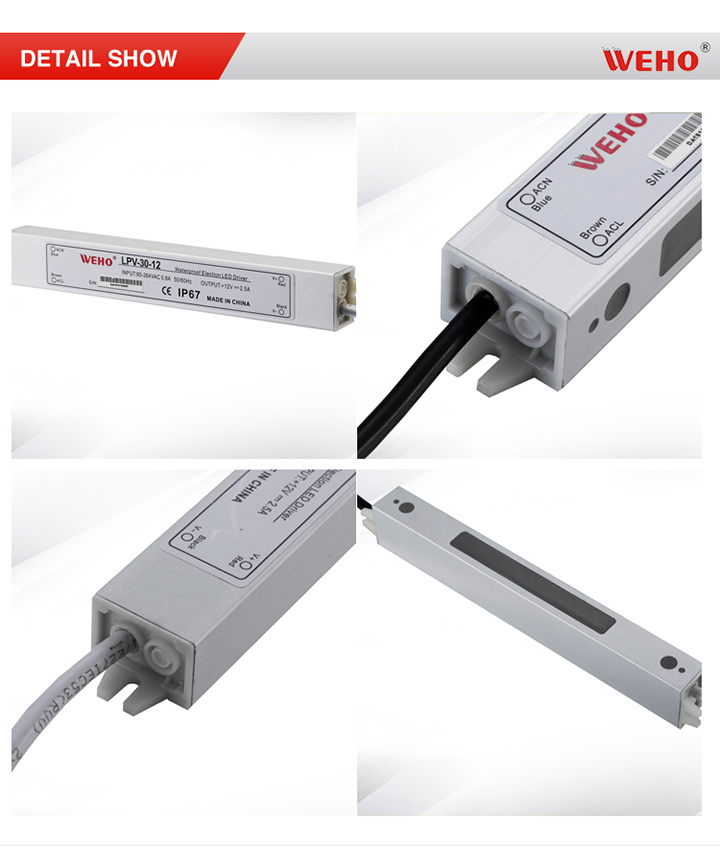

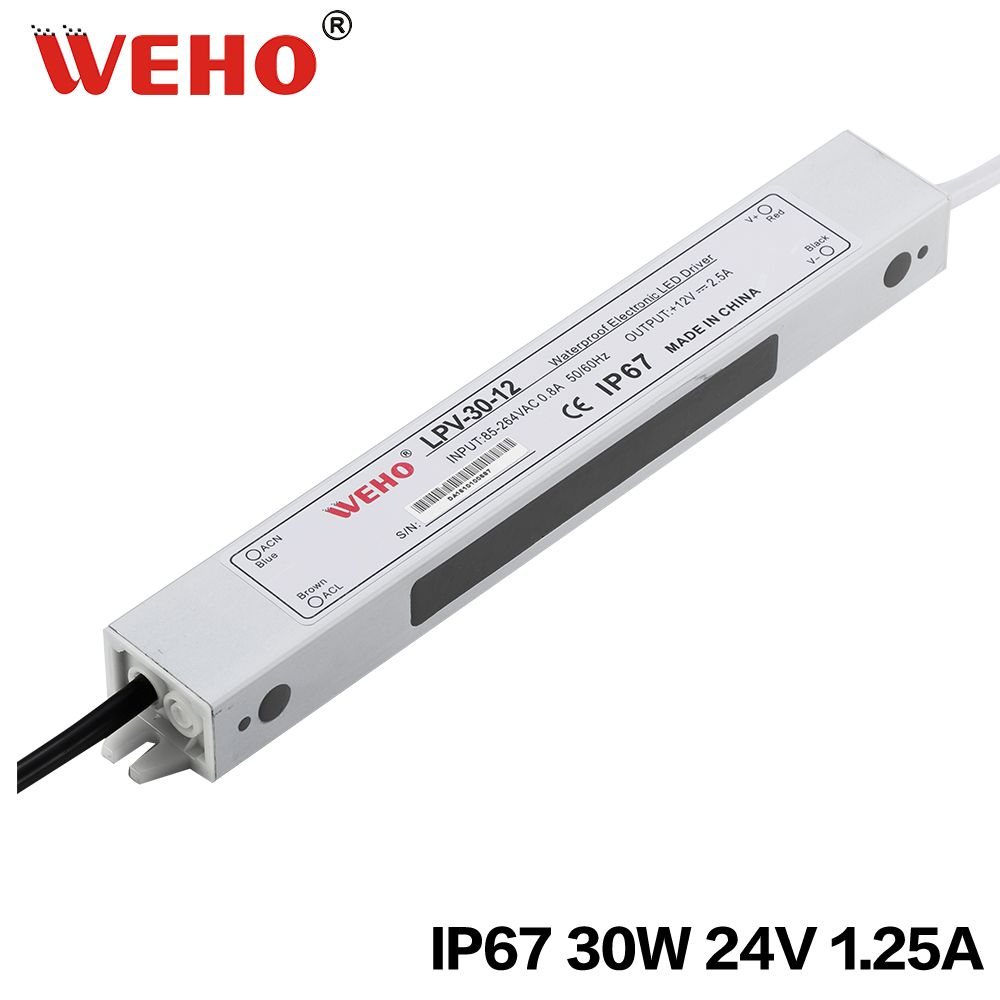

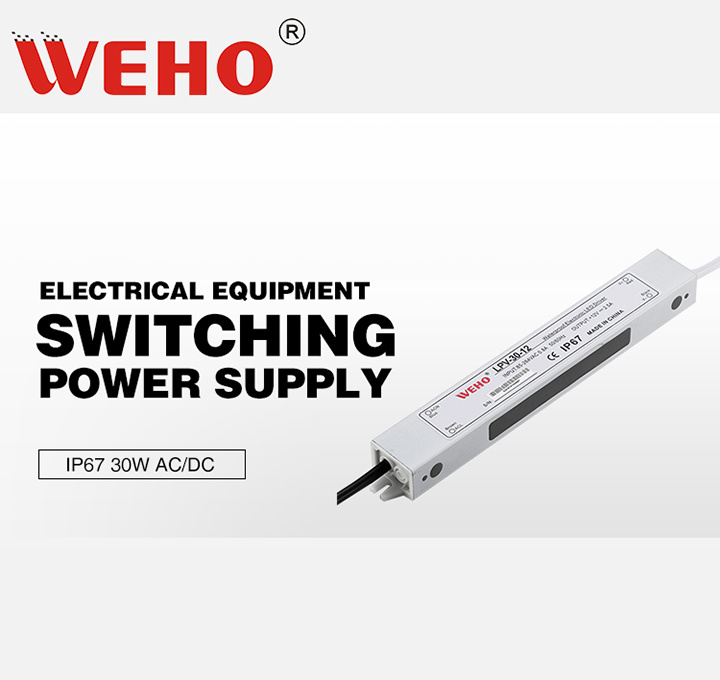

IP67 24V 30W LED Waterproof Switching Power Supply

Model	LPV-30-12	LPV-30-24
DC output voltage	12V	24V
Output voltage error	±1%	±1%
Rated output current	2.5A	1.25
Output current range	0-3A	0-1.5A
Wave and noise	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%
Load stability	±0.5%	±0.5%
DC output power	30W	30W
Efficiency	86%	87%
AC input voltage range	85-264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.5mA/240VAC
Over load protection	105%~150% rated output power
	Protection:Hiccup mode
Over voltage protection	13~16V	28~32V
	Protection:Shut down output voltage
short circuit protection	Protection:Hiccup mode
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity	-10~+60°C, 20~90%RH
Store temperature and humidity	-20~+85°C, 10~95%RH
Overall dimension	220×20×30mm
Weight	0.25Kgs
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!
