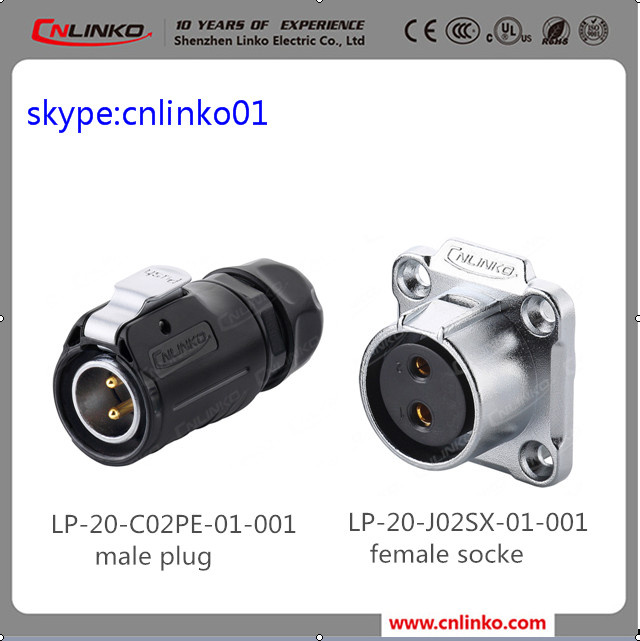

IP67 2pin Outdoor Electrial Power Waterproof Connector

Name: IP67 2pin Outdoor Electrial Power Waterproof Connector
Brand: all-electronics-online.com
SKU: 803688855
Availability: InStock
Rating: 5 (103 reviews)

Price:	US $ 2.7-2.8/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YP-20-C02PE-01-001
Product Name:	Waterproof Connector
Product Type:	2 Pin
Color:	Black and Yellow or as Your Demand
Material:	PBT
Certification:	3c, UL, IP65/IP67
Rated Current:	20A
Rated Voltage:	500V
Assembly Wire:	Soldering
Gender:	Male
Application:	Audio & Video

Product Description

ip67 2pin male female waterproof connector plug
LP-20 series electrical connectors IP65/IP67
1.multi-pins(2-12 PINGS) for varies industrial demands
2.PBT material shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
3.Alloy metal socket is with fully electromagnetic
4.gold-plated contact, high performance of corrosion resistance and electrical
5.2-7 pins for power,9pns and 12pins for signal
6.crrent rating:5A/12A/20A
7. protection level:IP65/67

LP-20-C02PE-01-001
Specifications:
Connecting mode:	plug/unplug
Protection level:	IP65/IP67
Cable specification:	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.7×2
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	500V
Contact resistance:	<1MΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machiner
