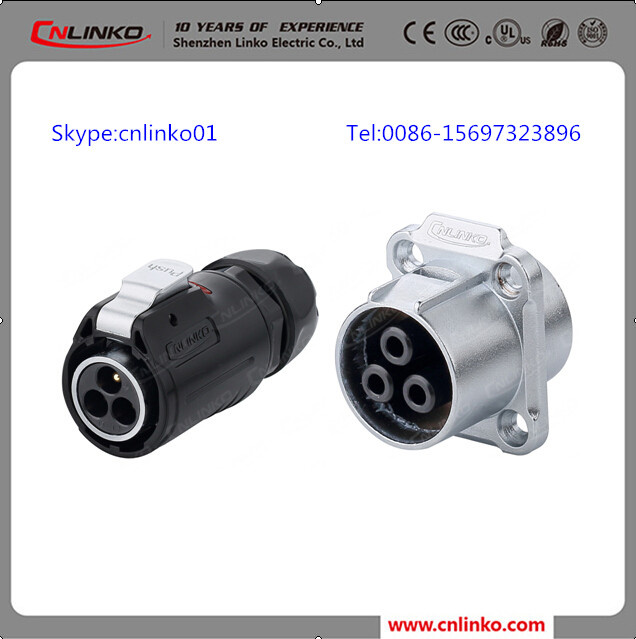

IP67 3 Pin Power Connector for Industrial Equipment

Prod Model:	LP-24-C03PE-01-001, LP-24-J03SX-01-001
Rated Current:	20A
Operating Voltage (AC.V.RMS):	500V
Contact Resistance:	<1mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP67
Assembly Wire:	Solder
Hardware:	Zinc Alloy(Pearl Hard Chromium)
Durability:	>500 Times
Connecting Mode:	Plug/Unplug
Copper Needles:	Copper Alloy(Gold-Plated)
Application:	Industrial Equipment, LED Screen
Gender:	Male and Female

Product Description

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727075705_10798.jpg

LP-24 Series of products, containing RJ45, USB, power, fiber optics and other models with hole size 24MM to meet different needs of industry, and we use Zinc alloy with nickel-plated to guarantee quality and apply with International environment protection of Industrial equipment as well.
LP24 series with multi-industry extension, USB, telecommunications, signal, fiber optic, HDMI, etc., and customized specialty, pin series, such as: 3pin, power+9 pin, signal......

1.24MM Installation hole figure.
2.Zinc alloy material against high frequency noise and electromagnetic interference gold-plated contact, high performance of corrosion resistance and electricalconductivity effectively deal with temperature rise.
3.PBT shell performance stable,compression, anti-explosion and anti-deformation.
4.Unique LINKO clamp , 4 holes for installation ensure stable.
5.Protection level: IP65/IP67.
6.Approved by UL.

Cable specification: 2.5mm2~4mm2/14~12 AWG
Diameter range: Φ8mm~Φ12mm
Contact diameter × number: Φ3.0×3
Rated Current: 20A
Operating voltage (AC.V.rms): 500V
Contact resistance: <1mΩ
Temperature rise: 20A contact temperature below 30oC, 25 Acontact temperature below 40oC, 30A contact temperature below 50oC.


Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP67	Durability:	>500 times
Working temperature:	-40oC~80oC	Connecting mode:	plug/unplug
Assembly wire:	solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

Packaging & Shipping

1. Normally, our price is based on our box packing for splice connectors;
2. Customized packing is welcome, MOQ of printing customized box is 1000 pcs/model for splice connectors
3. Delivery Detail: 3-5 working days after received deposit for splice connectors;
4. You may choose our shipping partner or your own partner for splice connectors;
5. 100% T/T in advance is required after confirming the order for  splice connectors.


Our Services

1. CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
2. Supply OEM service.
3. We have professional quality control system and R&D department to strictly manufacture each product for splice connectors;
4. 100,000 pcs per month for splice connectors;
5. National level laboratory, and have flexible production line, to make quick action to urgent customized needs for waterproof wire connectors;
6. We will supply the best service to you.

FAQ
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits. See below assembly photos:

(all in all: cable to cable; cable to machines)

Q2: What classes do connectors have?

Shape	Frequency	Function
circular	high-frequency	for printed board; cabinets;
rectangular	low frequency	socket connectors; for audio equipment, power, signal, etc.

Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.

Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.

Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
