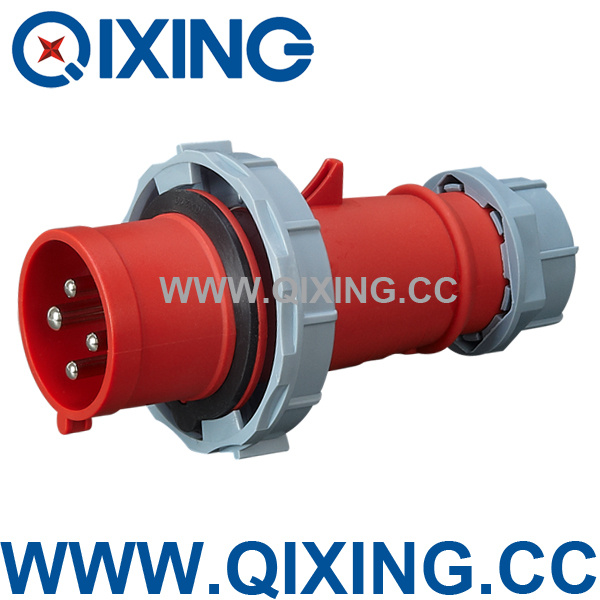

IP67 32A Sandproof Reefer Container Industrial Plug Socket Connector

Prod Model:	Industrial plug socket connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Rating:	IEC 60309-1 & 60309-2
Standards And Certifications:	CE/CCC/CB
Gender:	Female
Earth Connact Position:	6h
Current Rating:	32A
Voltage Rating:	380-415V
Pole Format:	3p+E
Temperature:	-30, +80
Material:	Nylon PA6/PA66, Brass
Warranty:	1-Year Limited
Grounding:	Standard Grounding
Type:	Without Switch
Hole-Digit:	4 Pin
Cable Length:	According to Customer Requied
IP Rating:	IP67
Color:	Red
Customized:	Customized
Condition:	New
Application:	Residential/General-Purpose, Industrial
Certification:	CCC, CB, CE, RoHS

Product Description

Product Description

IP67 32A sandproof Reefer Container Industrial plug socket connector

Brass with Nickel-plated pin, Pa66/Pa6 material body.
Working Temperture: +80, -30º C

Rated Voltage: 380-415V Poles: 4 pin Rated Current: 32A

Conform to European / International standards EN/IEC 60309-2

Good corrosion protection in aggressive environments and at high degrees of air humidity due to nickel-plated contacts
Highly heat resistant contact carriers
Easy opening and closing of lid though integrated opening aid
Reduced installation time
Practical front and rear locking slides
Large cage type terminals which securely clamp the conductor

Our company focus on bringing in advanced technology and equipment, which adheres to the ISO9001: 2000 international quality system, quality certification. To be a export-oriented enterprises, QIXING also get international agencies of Product Certification in the following relevant fields: CB, CE, CCC, TUV, GS, SEMKO, ROHS. We are continuing to introduce high-level technical and business management talents, gradually gain first-class production technology. Company is specialized in industrial plugs, sockets, coupler(connector)and so on.

Once you choice QIXING, you will get the most reliable cooperator.
