| Prod Model: |
YP-20-J04PE-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector Pin: |
4pin Female Plug |
| Cable Specification: |
2.5mm2 ~ 4mm2 /14~12 AWG |
| Diameter Range: |
Od8-12mm |
| Rated Current: |
20A |
| Operating Voltage: |
500V |
Product Description

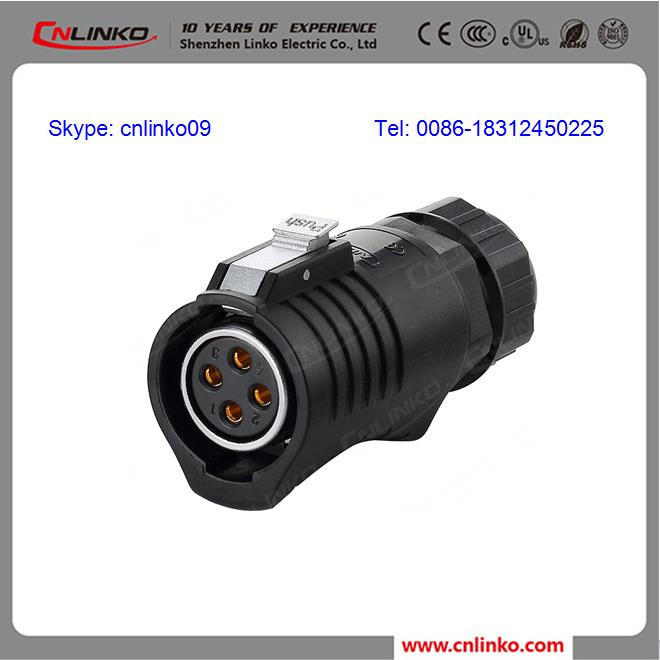

IP67 4pin power connector/4pin connector
Product Description
YP-20 Series connector is widely used the following field:
1.LED display
2.Lighting equipment ,
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
6. sealed connector
YP series electrical connectors IP65/IP68
1.multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
3.gold-plated contact, high performance of corrosion resistance and
4.electrical conductivity effectively deal with temperature rise.
5.PBT shell performance stable, compression, anti-explosion and anti-deformation
6.Unique Linko clip fastening clamp style jacket design.
7.protection level:IP65/IP68
8. sealed connector
YP-20-J04PE-01-001 female plug |
| Specifications: | |
| Connecting mode: | plug & unplug |
| Protection level: | IP65/IP68 |
| Cable specification: | 2.5mm2 ~ 4 mm2 /14~12 AWG |
| Diameter range: | Φ8mm ~Φ12mm |
| Contact diameter×Qty: | Φ2.7×4 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C. |
| | |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP68) |
| - Vibration resistance,impact resistance,stretching resistance |
| - 1/4 bayonet connect; socket with cover |
