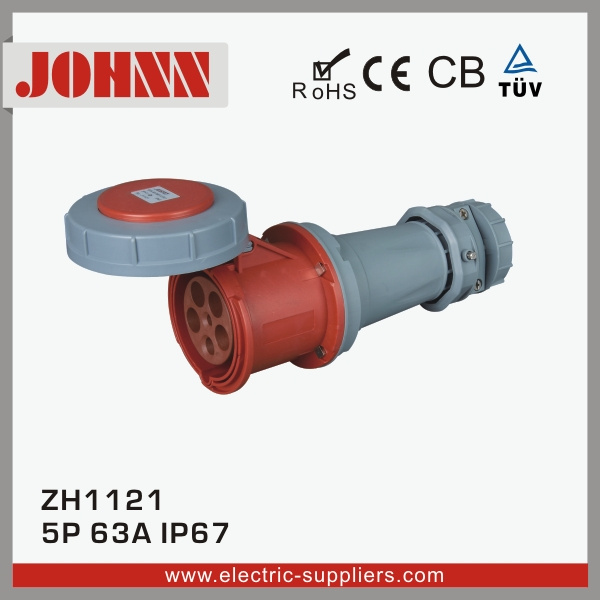

IP67 5p 63A Good Quality Waterproof Connector

Name: IP67 5p 63A Good Quality Waterproof Connector
Brand: all-electronics-online.com
SKU: 786930325
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	US $ 20.62/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZH1121
Rated Current:	63A
Grounding:	Standard Grounding
Color:	Red
Material:	Plastic
Protection Degree:	IP67
Poles:	5p
Copper Core:	Tinned Copper
Feature:	Safe / Waterproof / Durable
Delivery Time:	Within 25 Days After Rec
Delivery Methods:	by Sea / by Air / by
Standard:	Swiss Standard
Function:	AC Plug
Certification:	RoHS,Ce,CB,ISO9001
Shape:	EP
Nominal Voltage:	400V
Brand:	Johnn

Product Description

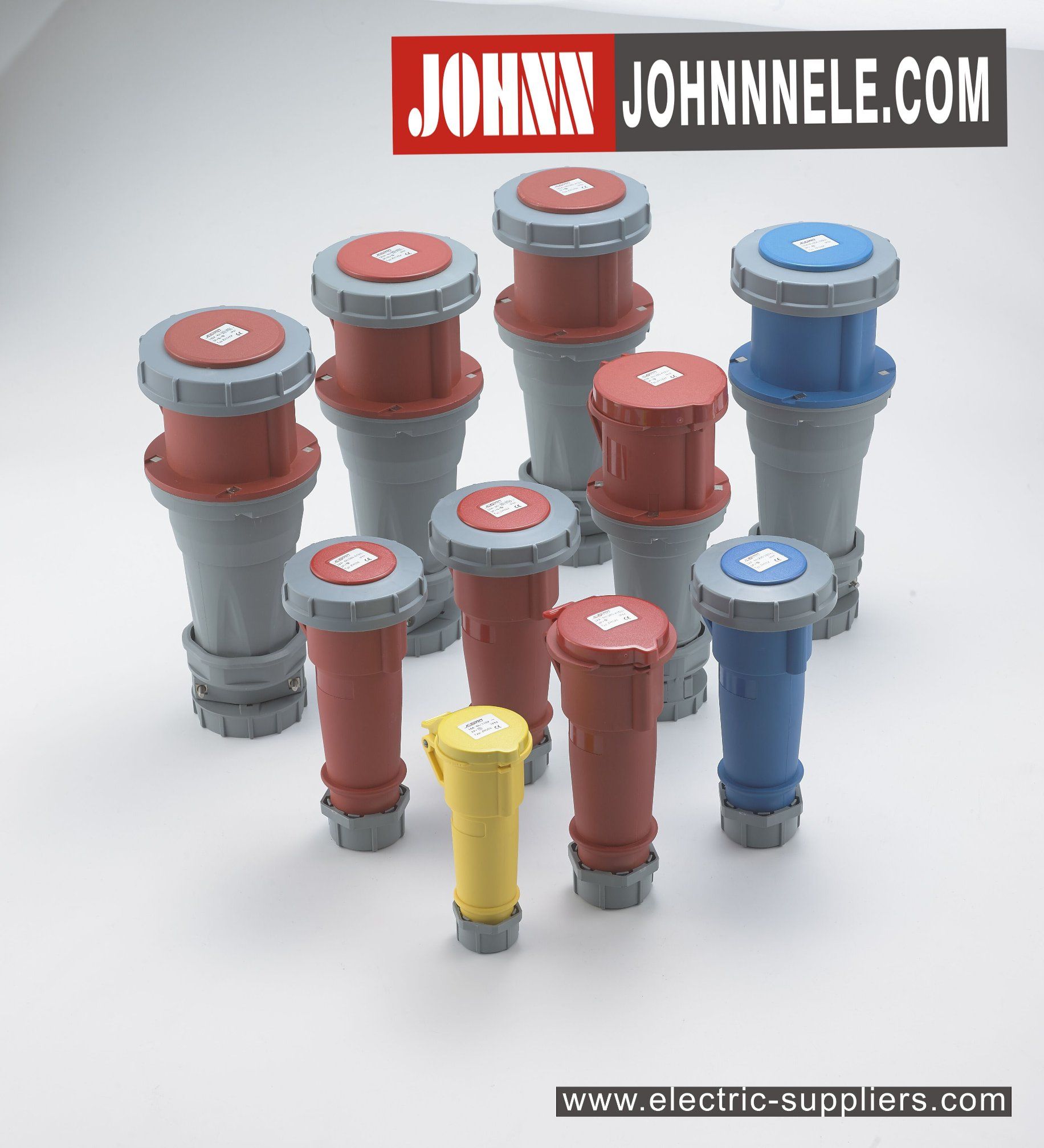

------ Picture of Industrial Connector ------

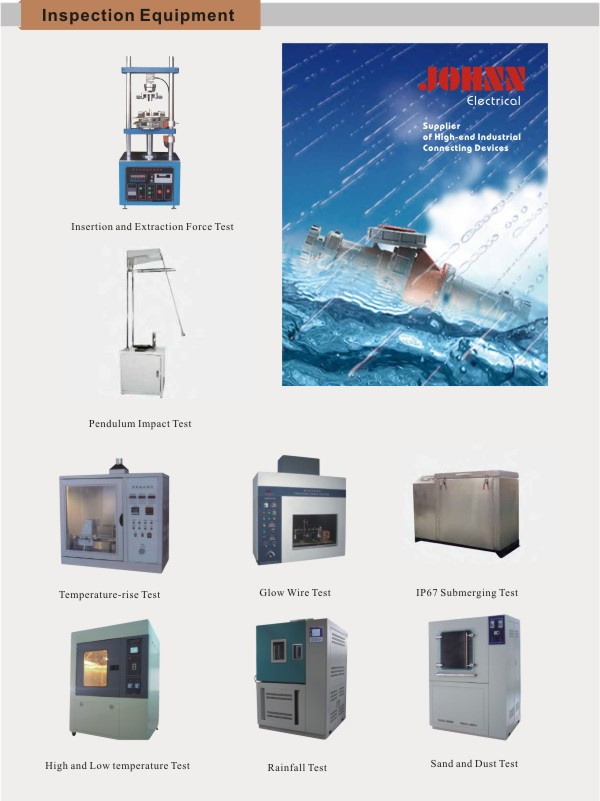

----Inspection Equipment----

----Company Information----

---- Detail of Industrial Connector ----

1. Model Number: ZH1121

2. Color: Red

3. Material: Plastic

4. Poles: 5P

5. Protection Degree: IP67

6. Rated Current: 63A

7. Rated Voltage: 400V

8. Copper Core: Tinned Copper

9. Grounding: Standard Grounding

10. Conductor cross sectional area: 10-16mm²

11. Feature: Safe / Waterproof / Durable

12. Certification: Rohs / CE / CB

------ Parameters of Industrial Connector ------

Current	Poles	110V 50a.60Hz	230V 50a.60Hz	400V 50a.60Hz	400- 440V	500V 50a.60Hz	>50-500V 100-300Hz	>50-500V a.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P 6h 9h 9h	3P 4P 5P 9h 6h 6h	4P 3h	3P 4P 5P 7h 7h 7h	3P 4P 5P 10h 10h 10h	3P 4P 5P 2h 2h 2h	PCS/BOX	G/PC
63A	3	ZH1573	ZH1574	ZH1575					5	801
	4	ZH1115	ZH1116	ZH1117		ZH1118			5	850
	5	ZH1119	ZH1120	ZH1121		ZH3352			5	896

Current		Poles		a	b	c	d	e	f	g
63A		3		260	104	95.8	77.4	112.5	109	34
		4		260	104	95.8	77.4	112.5	109	34
		5		260	104	95.8	77.4	112.5	109	34
Conductor cross-sectional area (mm²) Min To Max 10-16

Line with the German industrial standard DIN VDE 0623, the European / International standard EN / IEC 60309-2.

------ Packaging ------

1. Model Number: ZH1121

2. PCS/BOX: 5PCSc

3. PCS/CTN: 10PCS

4. Package Size: 55.5*49*25CM

5. Weight: 20/18KGS

------ Shipping & Payment------

1. Delivery Time: Within 25 days after receipt deposit.

2. Delivery Methods: By Sea / By Air / By Express ( DHL, FEDEX, TNT,UPS and etc ).

3. Payment: L/C / T/T / BL / Western Union / MoneyGram.

FAQ

Q-1. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q-2. Are you original Factory?
A: Yes, we have our own factory with many storage.
Q-3. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
