IP67 Connector M12 Male 5pin B-Code Circular Cable Connector

Name: IP67 Connector M12 Male 5pin B-Code Circular Cable Connector
Brand: all-electronics-online.com
SKU: 824582285
Availability: InStock
Rating: 5 (125 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC05C1RSG3BB34
Standard:	IEC 61076-2-101
Connection Type:	Single Ended Cable
Number Of Pins:	5 Pin

Product Description

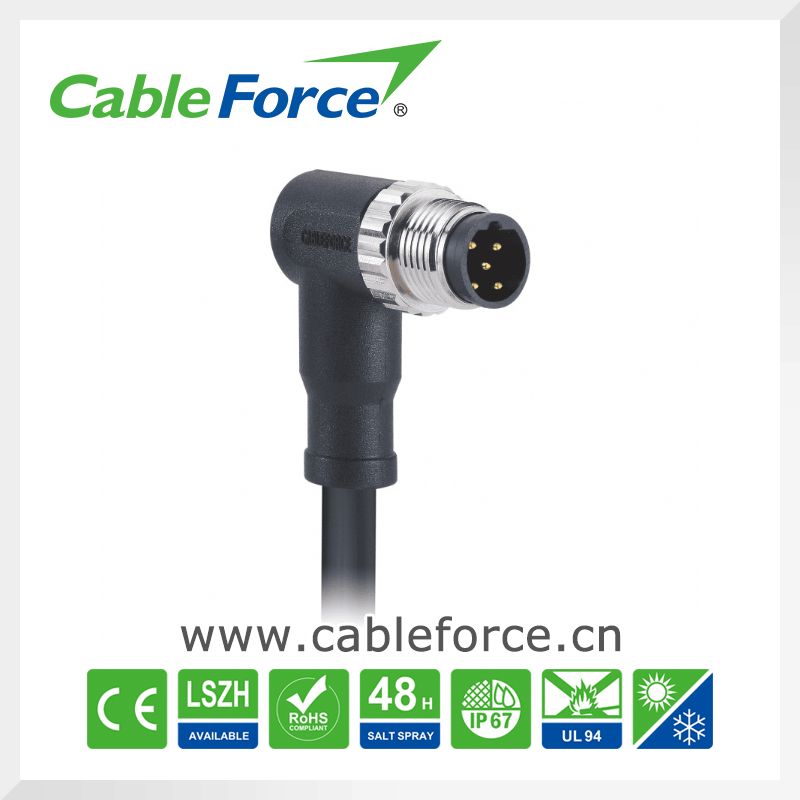

IP67 connector M12 male 5pin B-code circular cable connector

1. Descriptions
M12 Pre-molded (PUR/PVC)cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
(1) PUR and PVC cable for option
(2) Cable length: 1M, 2M, 3M or base on customer requirement
(3) Degree of protection IP 67
(4) 2, 3, 4, 5, 8, 12 poles per connector are available
(5) Anti-vibration locking screw design

2. Material data
Contacts plating: Gold plated, thickness 3μ"
Cable jacket material: By Custom
Overmold/ Shell: TPU
Connector contacts: Brass with gold plated
Coupling nut/screw: Brass with nickel plated screw

Standard	IEC61076-2-101	Gender	Male
Orientation	right angled	Coding	A-coding
Sealing	O-ring	IP rating	IP67
Wire termination	Soldering	Rated current	4 A
Shielding	Non-shielded	Rated voltage	60 V

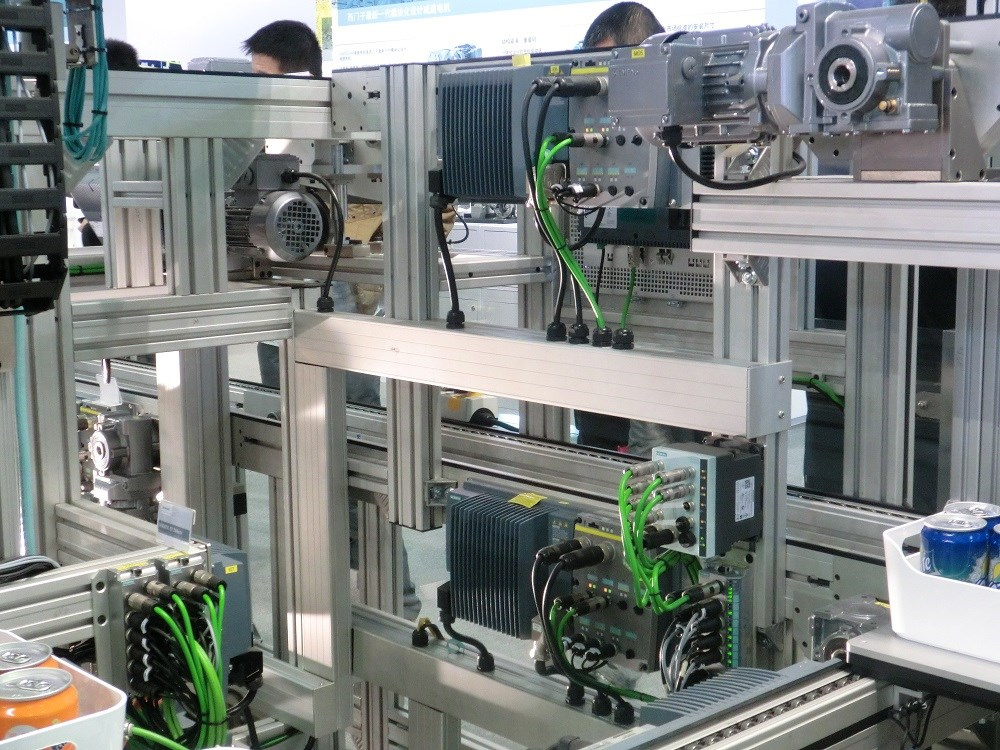

3. Applications
Standard sensor, actuator, encoder, servo motors
Factory automation and process control
Packaging, labeling and logistic devices
Industrial instrumentation
Commercial electronics PCBA
Industrial safety light curtain, light grid, switches
Power supply
Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
LED display panel & outdoor LED lighting

4.Quality statement

(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/ 90ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.

5.Product certificate

6.Company information

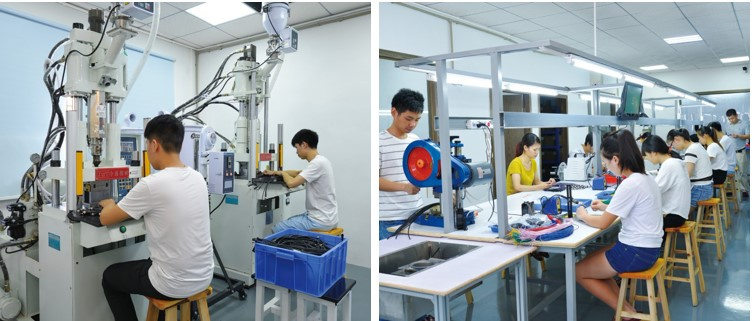

Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

7. Product packaging
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery: 1~ 3 weeks

8.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
