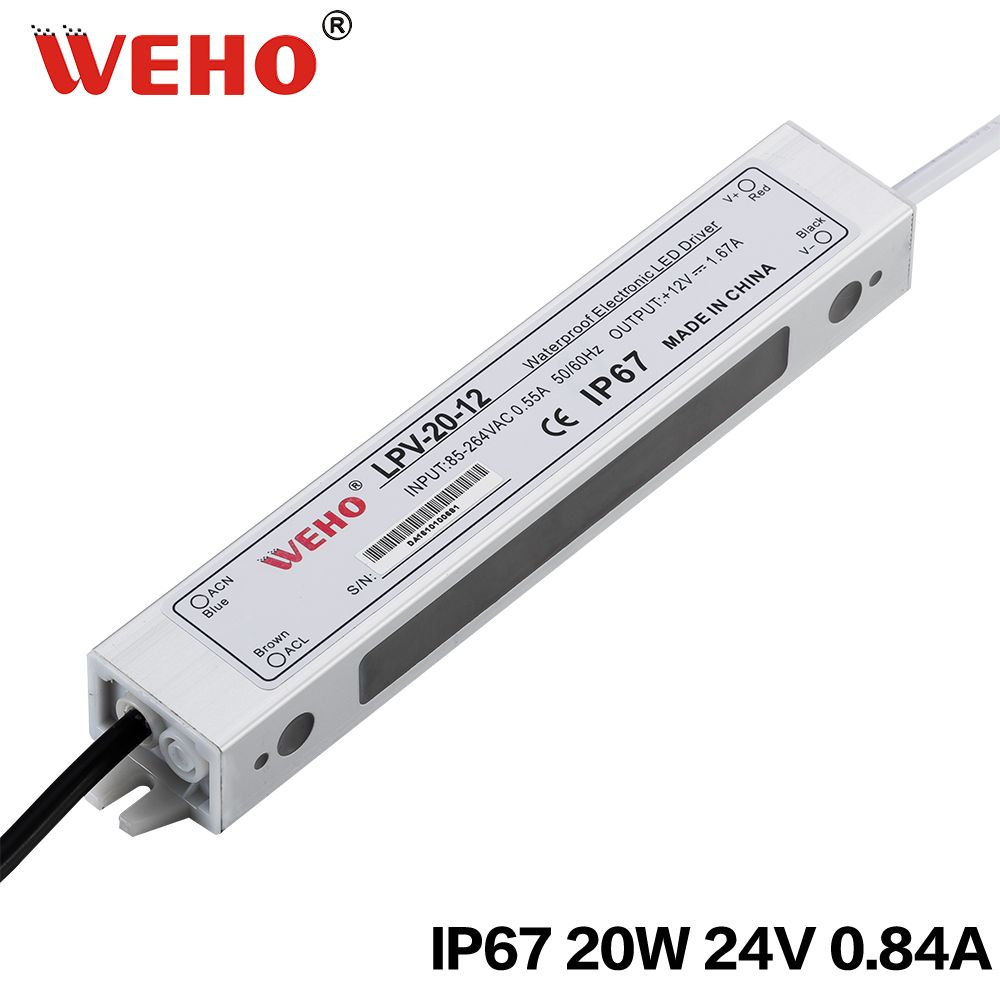

IP67 Constant Voltage 20W 24V 0.83A Waterproof Power Supply

Name: IP67 Constant Voltage 20W 24V 0.83A Waterproof Power Supply
Brand: all-electronics-online.com
SKU: 690852531
Availability: InStock
Rating: 4.4 (114 reviews)

Price:	US $ 2.69-3.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-20-24
IP Code:	IP67
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Item Name:	Waterproof Power Supply
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Brand:	Weho

Product Description

IP67 Constant voltage 20W 24V 0.83A waterproof power supply

Model Specification	LPV-20-12	LPV-20-15	LPV-20-24
DC Output voltage	12V	15V	24V
Rated output current	1.7A	1.4A	0.8A
Output current range	0~1.7A	0~1.4A	0~0.8A
Error	±5%	±5%	±5%
Wave and noise(Note:3)	100mVp-p	100mVp-p	150mVp-p
DC output power	20.4W	21W	19.2W
Efficiency	76%	78%	80%
Adjustable range for DC voltage	±10%	±10%	±10%
AC input voltage range	100~250VAC ,47~63Hz,240~370VDC
Input current	0.28A/230V
AC Inrush current	Cold-start current 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	115%-135% Type: hiccup mode Reset: auto-recovery
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each axes
High-temperature protection	≥105°C hiccup mode,Reset: auto-recovery
Water level	IP67
Setup, rise, hold up time	200ms 100ms 30ms
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10°C~+60°C,20%~90%RH
Overall dimension	1823020mm
Weight	0.23kgS 80pcs/ctns

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
