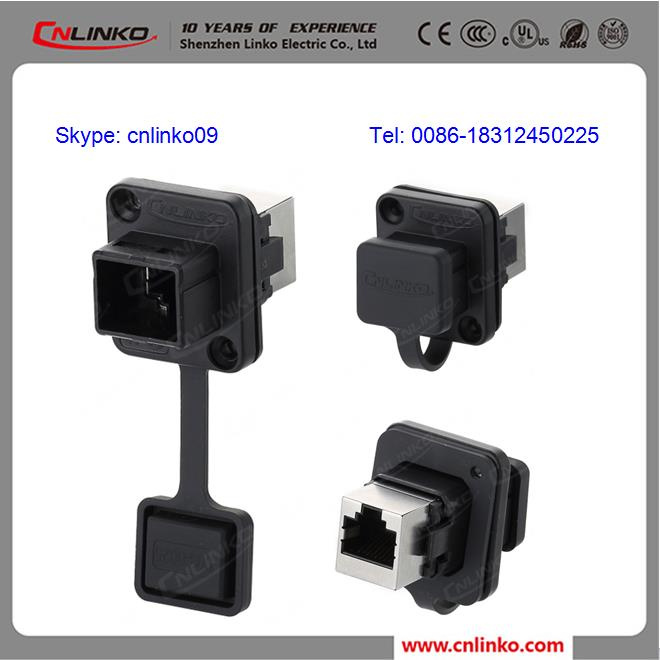

IP67 Ethernet Best RJ45 Waterproof Connector (YT-RJ45)

Name: IP67 Ethernet Best RJ45 Waterproof Connector (YT-RJ45)
Brand: all-electronics-online.com
SKU: 778242975
Availability: InStock
Rating: 4.6 (97 reviews)

Price:	US $ 3.5/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YT-RJ45-JSX-05-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Type:	RJ45
Cable Specification:	0.15-2mm2 / 26-24AWG
Diameter Range:	Od5.5-7mm
MOQ:	100sets
Assembly Wire:	1/4 Bayonet Connect
Gender:	Female
Application:	UHF

Product Description

IP67 ethernet best rj45 waterproof connector (YT-RJ45)

1.Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801,RJ45 connectorscompatible CAT5e,data transfer rate reach 10GBIT/S
2.Multi-style connecting modes:1/4 bayonet connect(YT01),quickly plug/unplug(YT09/04).
3.Applicable for harsh environments.
4.Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.
5.Sheath of cable applicable for common RJ45 plugs.
6. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof.
7.Electroplated shell against wind and rain.
8.Shielding system with high frequency noise immunity and electromagnetic interference protection.

YT-RJ45-JSX-05-002
Specifications:
Connecting mode:	Plug/unplug,
Protection level:	IP68
Cable specification:	0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	8
Current rating(A):	1.5A
Operating voltage(AC.V.rms):	1000V
Contact resistance:	<30mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	1/4 bayonet connect
Prevent the combustion level:	UL94-V0
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Our Service:

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
Cellphone: 0086-18312450225

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
