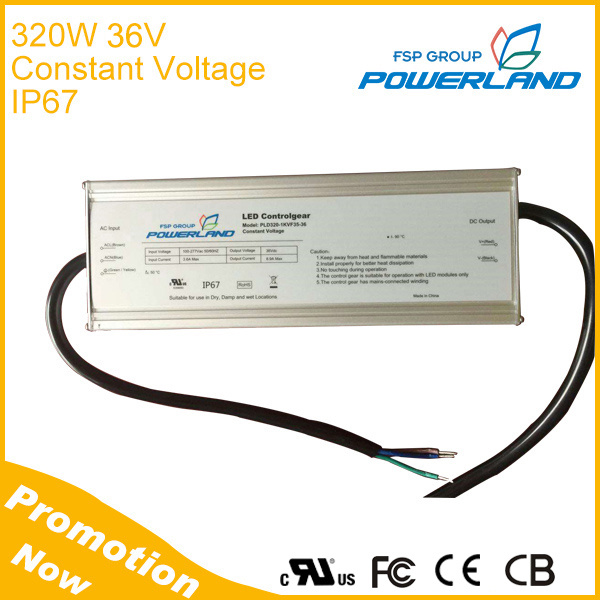

IP67 Grade 320W 36V Constant Voltage Power Supply for Grow Light

Name: IP67 Grade 320W 36V Constant Voltage Power Supply for Grow Light
Brand: all-electronics-online.com
SKU: 802472425
Availability: InStock
Rating: 4.7 (124 reviews)

Price:	US $ 52.00-55.00/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD320-1KVF35-36
Usage:	Digital Products
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Conventional Step-down Transformer
Power Supply Voltage:	90VAC-305VAC
Brand:	Fsp-Powerland

Product Description

UL Listed 320W 36V Constant Voltage Power Supply/ Led Driver
IP67 for Outdoor application
(Specially for Grow Light)

PLD320-1KVF35-36 is a constant voltage drivers with 90-305Vac universal input.
The output voltage is 36V, and designed with 93% efficiency and all-around protections.

Applications
Outdoor & Indoor Led Lights
Led lights with constant voltage
Street lights, high bay and low bay lights, Led Panels

Specifications

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
90~305Vac	320W	36V	8.8	93%	90ºC	4.0A	360W	<20%	>0.95

* Based on 25ºC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.

Features
100,000 hours lifetime at 70ºC Tcase
7 years warranty at 70ºC Tcase
IP67 ingress protection
Min. operating temperature @-40ºC
Constant Voltage output
Universal input voltage:90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 3kV, L/N-GND 6kV
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD320-1KVF35-36
Output Voltage	36V
Output Current	8.8A
Output Power	320W
Max. Current Ripple	±10%
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	4.0A
Max. Input Power	360W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	93%
Max. Open Circuit Voltage	39V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70ºC
Max. Case Temperature	90ºC
Surge Protection	3kV/6kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	230x84x42.5 mm (9.06x3.31x1.67 inch)
Mounting Length	244 mm (9.61 inch)
Overall Length	254 mm (10.00 inch)
Weight	1.68 kg (3.70 lb)
Life Time	100,000 hours @ full load, 70ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Electrical Specification

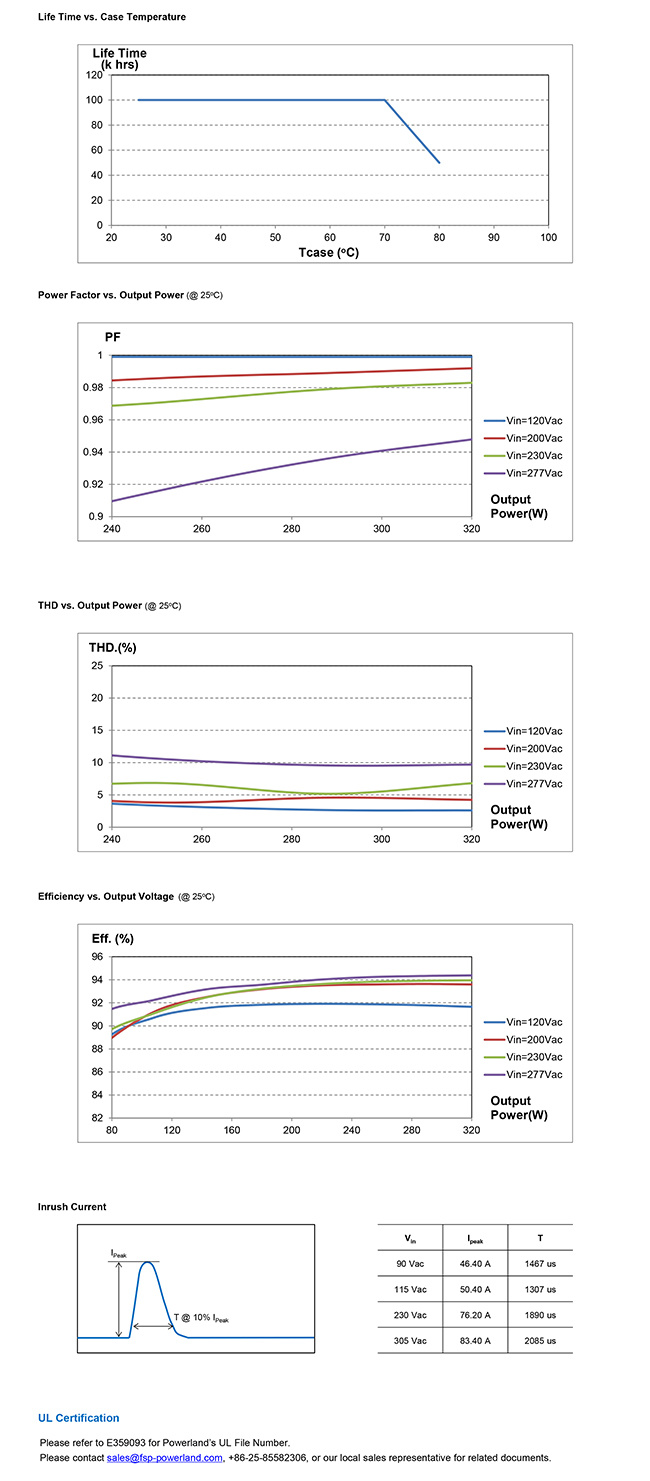

Performance Characteristics (Test wtih PLD100-1TCF14A-2100)
