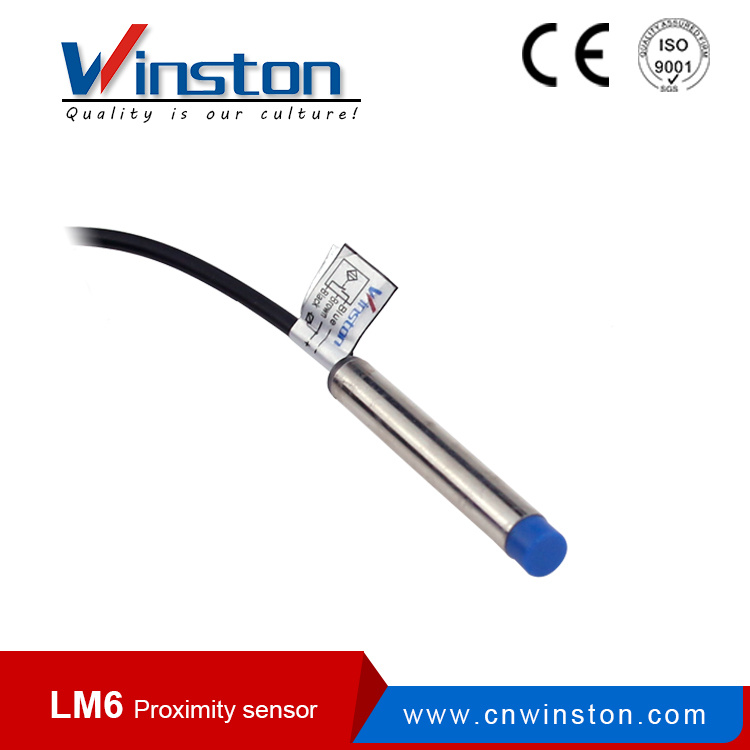

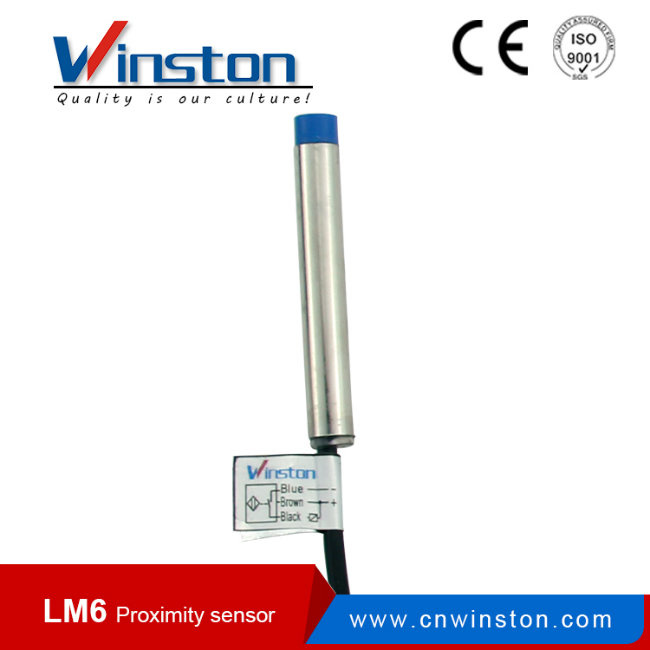

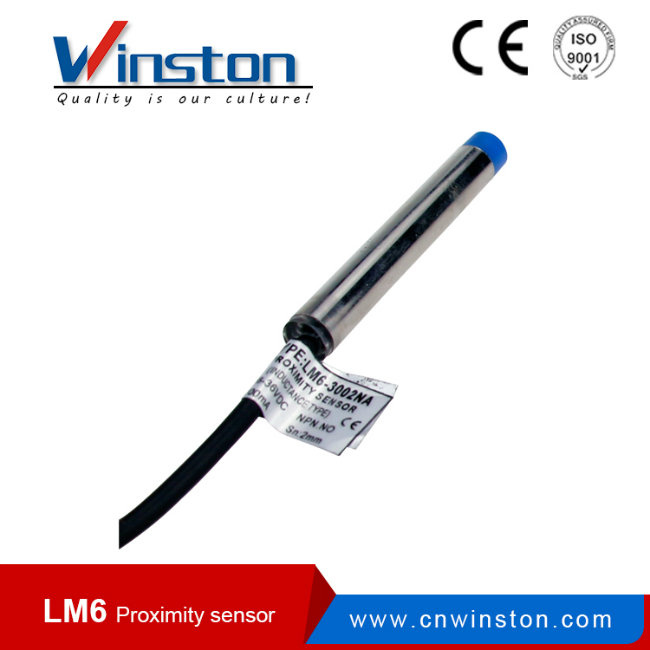

IP67 Inductive Proximity Sensor (LM6)

IP67 Inductive Proximity Sensor (LM6)
Price: US $ 5-8/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: LM6
Type: Proximity Switch
Composition: Combination Mode
Production Process: Copper
Output: Analog Sensor
Usage: Position Sensor
Theory: Inductive Proximity Switch
Material: Metal
Brand: Winston/OEM

Product Description

Model explanation of proximity switch




1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)

2. Outward appearance code(: Cylinder type; F: Angular column type and planeinstallation type)

3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)

5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;

L: Two-line DC output;: AC two-wire output;J: Relay output;NP: NPN+PNP output)

6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;

H: High temp resistance; R: Ring type)

Main features:

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Size:


Outward appearance illustrationLM6
FlushDetection distance1mm
DC 6-36VDCNPNNOLM6-3001NA
NCLM6-3001NB
NO+NC
PNPNOLM6-3001PA
NCLM6-3001PB
NO+NC
Two wire systemNOLM6-3001LA
NCLM6-3001LB
AC 90~ 250 VACSCR Control- lable siliconNO
NC
NO+NC
RELAY OUTPUT
NOn-flushDetection distance1.5mm
DC 6-36VDCNPNNOLM6-3002NA
NCLM6-3002NB
NO+NC
PNPNOLM6-3002PA
NCLM6-3002PB
NO+NC
Two wire systemNOLM6-3002LA
NCLM6-3002LB
AC 90~ 250 VACSCR Control- lable siliconNO
NC
NO+NC
Control outputDC150mA
SCR/RELAY
Output voltage dropDC/ACDC < 3V, AC < 10V
Consumption currentDC < 15mA, AC < 10mA
Standard detected object6× 6× 1(A3 iron)
Repeated precision0.01
DC/AC Response frequency500Hz
Working environment temperature-25º C ~+75º C
Insulation resistance≥ 30MΩ
Shell materialStainless steel
Protection gradeIP67
Alternative model at home and abroad

More picture




Packing




FAQ


Q: How to order our product ?

A:1). Please tell us the model and quantity and other request you need.

   2). We make the PI for you.

   3). After you confirm the PI, we arrange the order for you after receiving your payment.

   4). After the goods finished, we send the goods out to you and tell you the tracking number.

   5). We will track your goods until you receive the goods.



Q:  What's your warranty ?

A: Two years



Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.



Q: What's about MOQ?

A: First order MOQ=1pcs



Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.



Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.

Cautions


1. Dc switch should adopt insulation transformer and ensure stable voltage mains corrugation.



2. If any electric power live or dynamic line passes through the surrounding of switch lead-wire, in order to precent the switch form damage or error action, cover the metal bushing on the switch lead-wire and ground it to the earth.



3. Set the switch use distance within the rated distance to avoid the effects from temperature and voltage.



4. Wiring while power-on is strictly prohibited, connecting the wires strictly according to the wiring diagram and output return elmentary diagram.



5. If there areany special requirements to the switch like water proof, oil proof, acid proof, base proof, high temperature proof of with any other specifications, the users are required togive clear indication when placing an order, we can produce according to the requirements of the user.
