IP67 Mc4 Solar PV Connector for Solar Energy System

Prod Model:	043
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Material:	PPO
Rated Voltage:	TUV 1000 DC/ UL 600V DC
Test Voltage:	6kv(50Hz, 1min)
Contact Material:	Copper, Tin Plated
Contact Resistance:	Less Than 0.5 M Ohm
Degree Of Protection:	IP67
Pollution Degree:	2
Protection Class:	Class II
Flame Calss:	UL94-V0
Plug Force:	Less Than 50n
Type:	Socket Terminals
Material:	Copper
Application:	Solar Power System
Certification:	TUV, CE, RoHS
Brand:	Leader

Product Description

Production description:

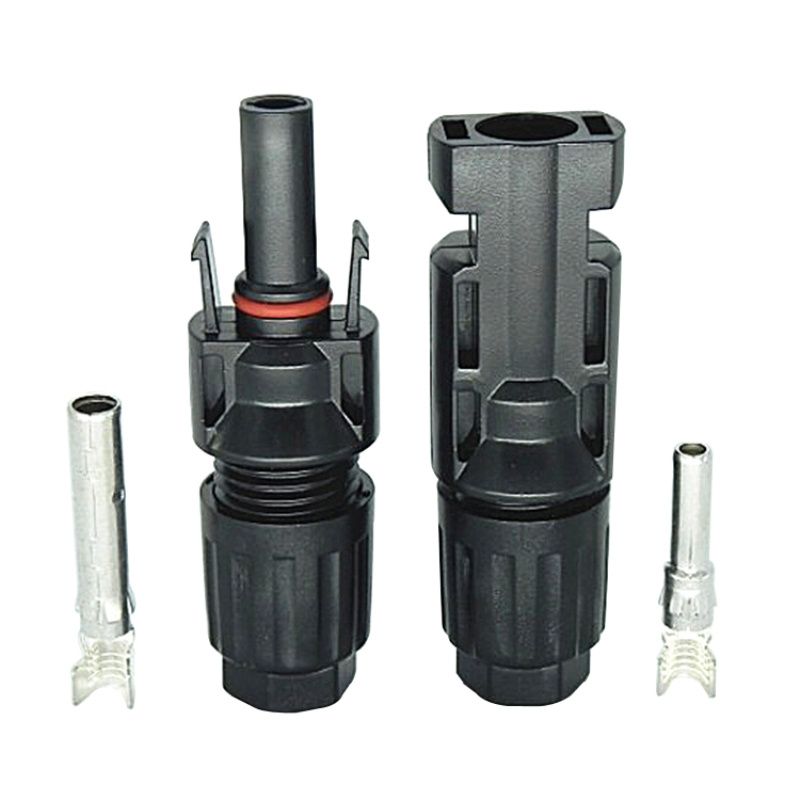

Come in Pairs ( 1 pair = 1 Male House + 1 Female House + 1 Positive Termanal + 1 Negative Terminal)
1)    simple, safe, quick effective field  assembly
2)    Low transition resistance
3)    Innovatively sealed, waterproof and dust resistant design: IP67
4)    High current and voltage carring capacity
5)    Self-locking design, high mechanical endurance
6)    Excellent plastic material, UL94-V0 fire rating, anti-aging, waterproof, and resistance to ultraviolet radiation for long-term outdoor application


Complete connector include	Male house, female house, positive and negative terminal
Insulation material:	Polycarbonate
Contact material	Copper, Tin plated
Contact resistance	Less than 0.5m oHm
Fixed form	HFW
Rated current	30A
Rated voltage	1000V
Test voltage	6000 V (50Hz, 1Min)
Degree of protection	IP67
Safety class	2
Flame calss	UL94-V0
Insertion force	Less than 50N
Withdrawal force	More than 300N
Ambient temperature range	-40 degree - +90 degree
Suitable cable	2.5-6.0mm2 AWG14/12/10

Our service:

We will give you a best service.
1) Reply inquiry in 24 hours.
2) Answer your questiong detailed.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which items you are interested and the reasonable price will be provided you upon.


FAQ:

Q: Is sample available and free?
A: Sample is avaible and free, but the freight cost should be pay by you.
The freight cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q: What's the delievery time?
A: It usually takes 4-27 days after confirming payment, but specific time should be based on the order quantity.
