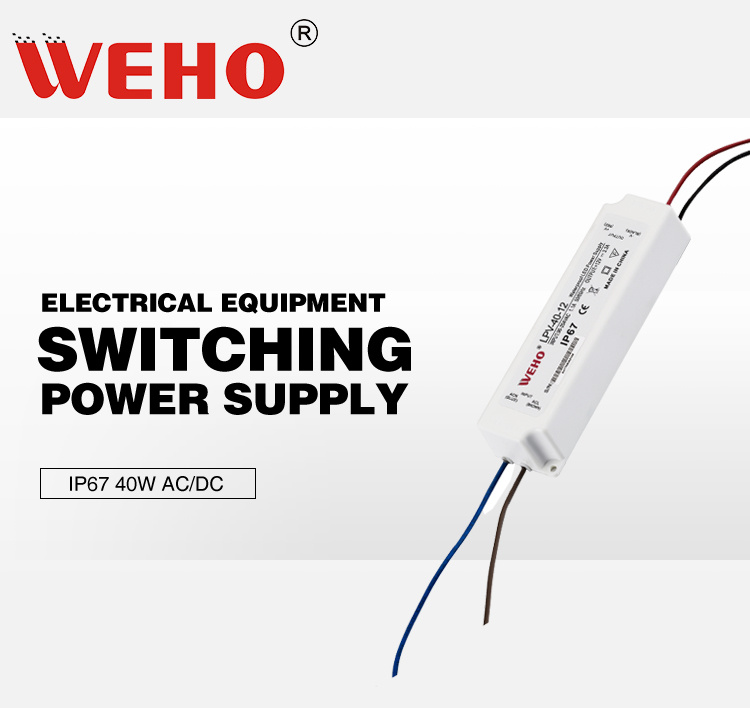

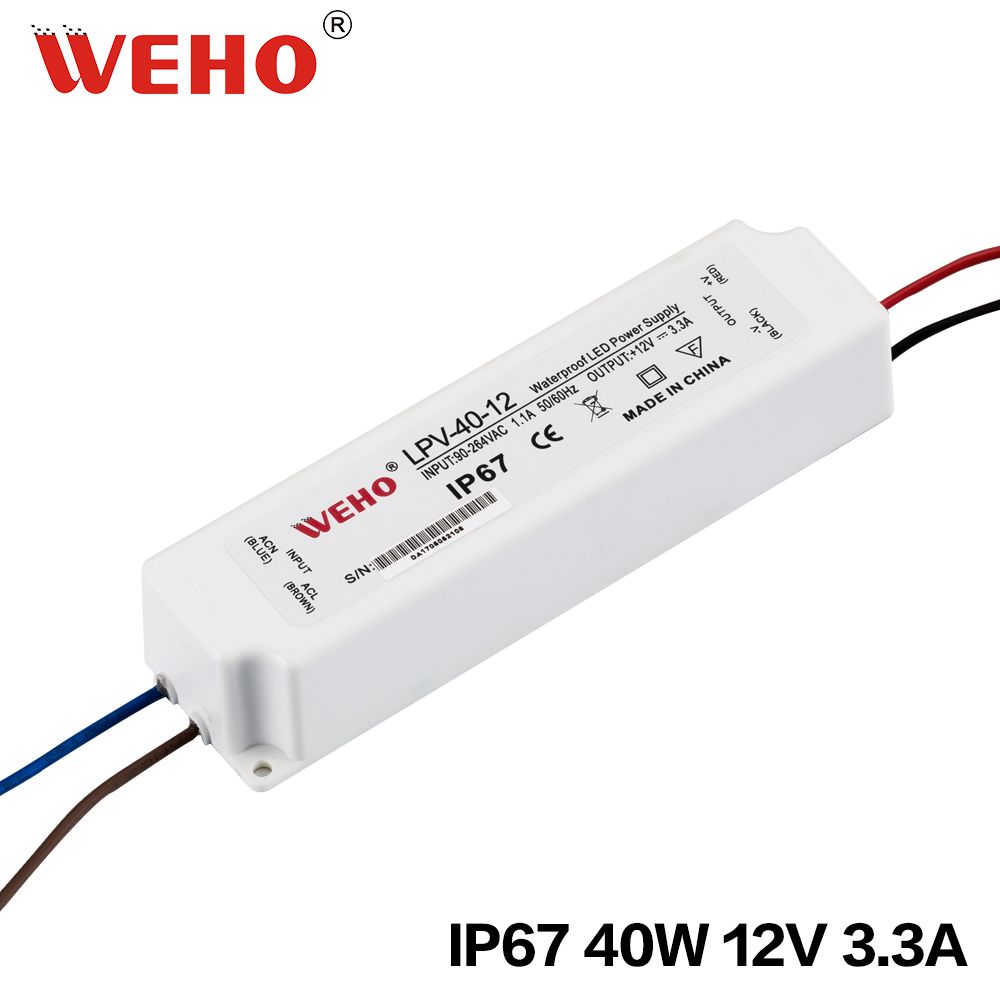

IP67 Plastic LED Driver DC 12V 40W Waterproof Power Supply

Name: IP67 Plastic LED Driver DC 12V 40W Waterproof Power Supply
Brand: all-electronics-online.com
SKU: 690877001
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 6.99-10.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-40-12E
IP Code:	IP67
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Weho

Product Description

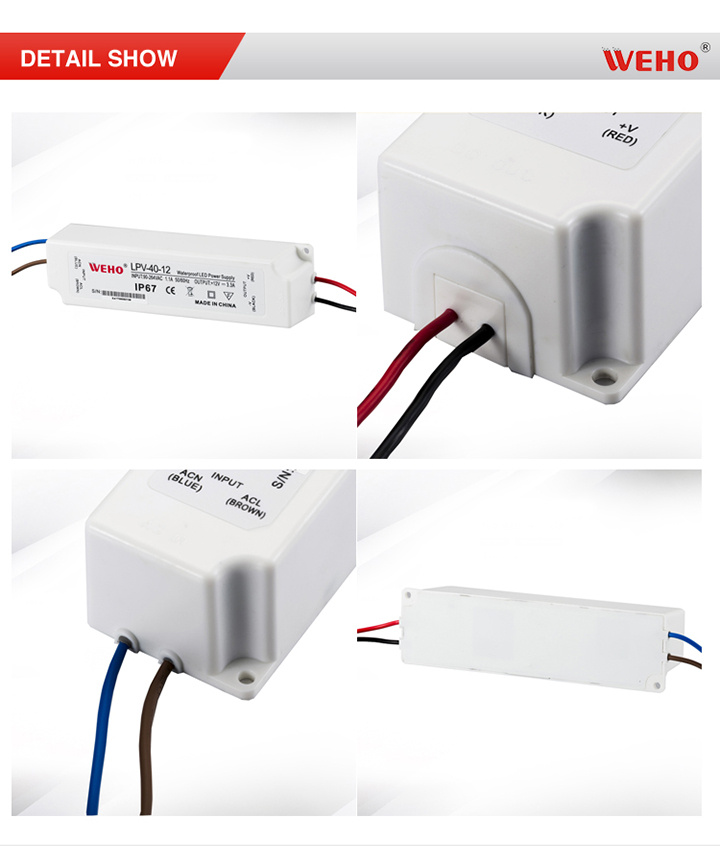

IP67 Plastic LED driver DC 12v 40w Waterproof Power Supply

MODEL	LPV-40-5E	LPV-40-12E	LPV-40-15E	LPV-40-24E	LPV-40-36E
DC VOLTAGE	5V	12V	15V	24V	36V
RATED CURRENT	8A	3.3A	2.6A	1.6A	1A
CURRENT RANGE	0 ~ 8A	0 ~ 3.3	0 ~ 2.6A	0 ~ 1.6A	0 ~ 1A
RATED POWER	30W	36W	36W	36W	36W
RIPPLE & NOISE (max.)	80mVp-p	120mVp-p	120mVp-p	150mVp-p	150mVp-p
VOLTAGE TOLERANCE	±6.0%	±5.0%
LINE REGULATION	±1.0%
LOAD REGULATION	±4.0%	±2.0%
SETUP, RISE TIME	500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load
HOLD UP TIME (Typ.)	50ms/230VAC 16ms/115VAC at full load
VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
EFFICIENCY (Typ.)	77%	84%	84%	85%	85%
AC CURRENT (Typ.)	1.1A/115VAC 0.7A/230VAC
INRUSH CURRENT(Typ.)	COLD START 55A(twidth=510μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER	4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT	0.25mA / 240VAC
OVERLOAD	110 ~ 150% rated output power
OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V	41.4 ~ 48.6V
OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
WORKING TEMP.	-30 ~ +65ºC (Refer to "Derating Curve")
WORKING HUMIDITY	20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-40 ~ +80ºC, 10 ~ 95% RH
TEMP. COEFFICIENT	±0.03%/ºC (0 ~ 50ºC)
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY STANDARDS	IP67 approved ; design refer to EN60950-1
WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC
ISOLATION RESISTANCE	I/P-O/P:>100M Ohms / 500VDC / 25ºC/ 70% RH
EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3
EMC IMMUNITY	Compliance to EN55024, light industry level,criteria A
MTBF	743.5Khrs min. MIL-HDBK-217F (25ºC)
DIMENSION	1484030mm (LWH)
PACKING	0.34Kg; 40pcs/14.6Kg/0.63CUFT

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
