IP67 Slim Waterproof Switching Mode Power Supply with Ce

Name: IP67 Slim Waterproof Switching Mode Power Supply with Ce
Brand: all-electronics-online.com
SKU: 748151635
Availability: InStock
Rating: 4.8 (121 reviews)

Price:	US $ 28.17-31.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E200C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	200W
Input Voltage:	220V
Output Voltage:	24V
Power Factor:	Low
Efficiency:	90%
IP Rating:	IP 67
Weight(Kg):	0.9500
Packing Information:	10 PCS/ Carton, G.W 9.5 Kg
Certificates/Standards:	CE
Dimensions(LWH):	2518535mm
Usage:	Construction
Output Type:	Dual
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

24V 200W IP67 Slim body Efficiency90% Led Switching Power Supply with CE

Brief Introduction of the Slim body waterproof LED driver:
*Brand Name:NeonPro
*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body, special design for application with narrow space, such as ceiling LED Strip back light, LED light box...(Size:252*85*36mm)
*Fully sealed&waterproof, IP67
*Constant Voltage output ; 100% burn-in test
*2 years warranty
*Efficiency>0.9, CE TUV

Technical Specification of the Slim body waterproof LED driver:

Model no.	LPS-24E200C
Input voltage	220 VAC 50/60 Hz
Max. power	200 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	90%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	8.33A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)
Dimensions(LWH)	2518535mm
Weight(kg)	0.9500
Packing information	10 Pcs/ Carton, G.W 9.5 KG

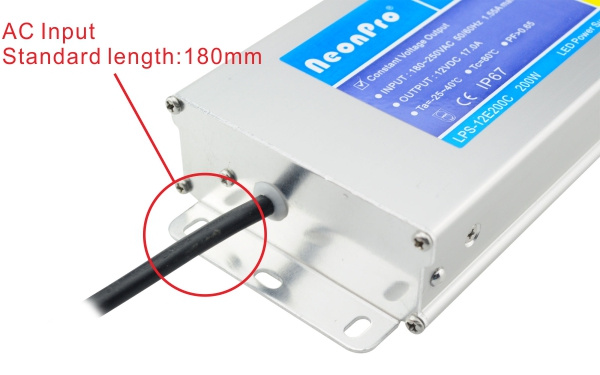

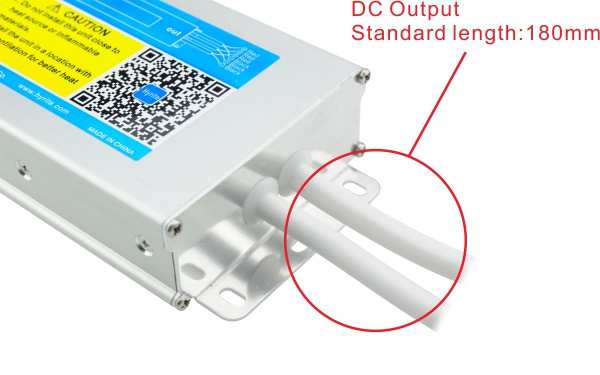

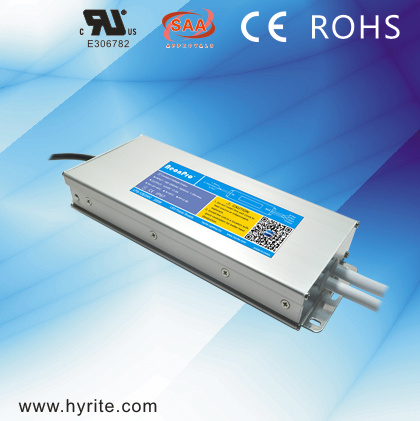

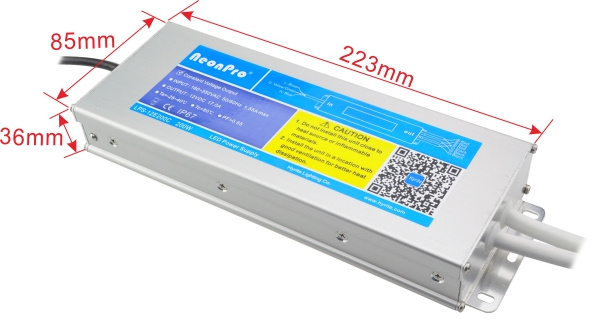

Detailed Pictures of the Slim body waterproof LED driver:

Shipping Method:
*Ocean or Air transportation
*International Express:DHL FedEx TNT UPS EMS etc.

Our Service & Advantages:
*24 hours Service for customers all over the world
*More than 20 years sales and manufacturing experience for LED Power Supply and Neon transformers in China.
*All of our products are sold to overseas market.
*Our products passed CE ROHS SASO TUV SAA UL approval.

Welcome to our factory!

45 mins away from Guangzhou International Baiyun Airprot.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
