IP67 Steel Single Tube Sensor 100mm~2000mm with Alarm

Name: IP67 Steel Single Tube Sensor 100mm~2000mm with Alarm
Brand: all-electronics-online.com
SKU: 801713265
Availability: InStock
Rating: 4.9 (69 reviews)

Price:	US $ 5-13/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JSP
Protection:	IP67
Length:	100mm~2000mm
Output Signal:	0-190omega; 240~33omega, and Others
Alarm Rated Current:	500mA
Rated Power:	125MW
Resolution Range:	10~40mm
Temperature:	-40-+85
Accuracy Grade:	10-40mm

Product Description

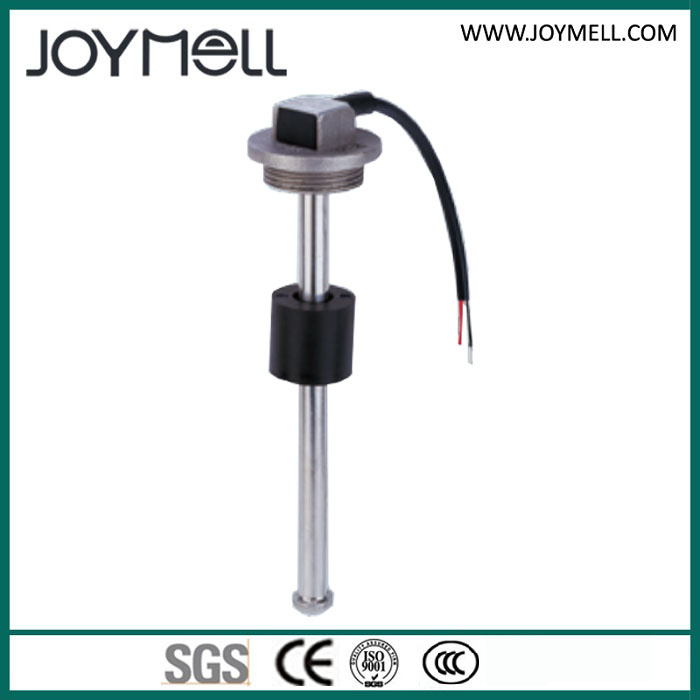

IP67 Steel Single Tube Sensor 100mm~2000mm with alarm

Application:
*Material: Main body is stainless steel 316 or Stainless steel 304
*Length Range: 100-2000mm.It can also be customized according to your requirement
*Assembly: BSP1 1/4" Thread twist-in, or NPT Thread twist-in. Various types of Flanges are available for fitting fuel tank if necessary
*Mounting: -38mmx2.6mm O-Ring -43mmx3.5mm O-ring
*Protection rank: IP67

Description:

*Utilizing magnetic field to control the reed on-off switch, the product features a long service life and protection against vibration

*Rated Power: 125mW

*Wire: PVC material(PA corrugated pipe cover is optional)

*Connector: Delphi, tyco, or others are available according to customer's requirements

*Output signal: Resistance control signal, 0-190Ω,240~33Ω, or customized as required. You can also choose current control signal 0-20mA, 4-20mA or Voltage control signal, 0.5~4.5VDC, 0~5VDC.

*Resolution range: 10~40mm

Operating temperature: -40ºC~+85ºC

About Joymell our company:
   Joymell is factory for ATS, Enclosure,Sensors, Cable glands, Power supply, Current transformer etc   materials used on Generators and engines. Providing customers very competitive sources, and can be your sourcing agent in China.
Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
Our Customers mainly in Europe, Australia, Africa, Asia, etc. Many countrie

FAQ:
    *Trade Terms:  FOB ,CIF ,CFR,EXW,CNF
     *Payment terms: T/T,Paypal ,Western Union
     *Payment conditions:  New customer at least 50% deposit in advance,50% balance before shipping.
     *Delivery time: ormally Within 7days. Sometimes with stock.
     *Packing: Carton box. Shipping mark per your requirement
     *Shipping: By sea,by air and by express delivery, etc.
     *Warranty: 2 years after leave factory
