| Prod Model: |
YU-USB2-JSX-03-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Cnlinko |
| Waterproof Rating: |
IP65 |
| Connecting Mode: |
Quickly Bayonet Connect |
| Shell & Insulated Parts: |
High Performance Engineer Plastic |
| Current Rating(a): |
1.5A |
| Operating Voltage: |
500V |
| Colour: |
Black |
| Temperature Rating: |
-40°c~80°c |
| Character: |
High Temperature Resistance |
| Species: |
Plug |
| Application: |
Transmission of Electrical Signals |
| Material: |
Copper |
| Feature: |
Waterproof |
| Power Cable Type: |
Three-pin |
| Shape: |
Round |
| Computer Cable Type: |
Power Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
| Interface Type: |
DC/DC |
| Pin: |
9pin |
Product Description

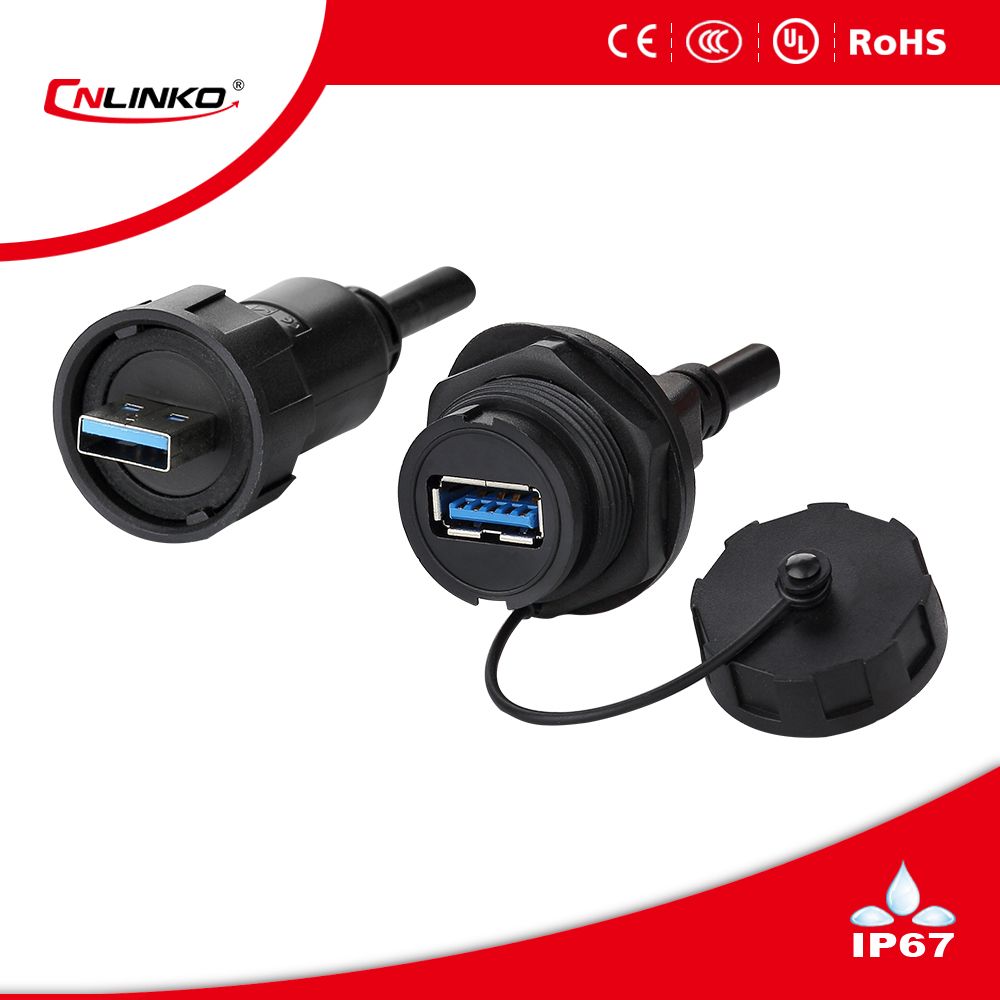

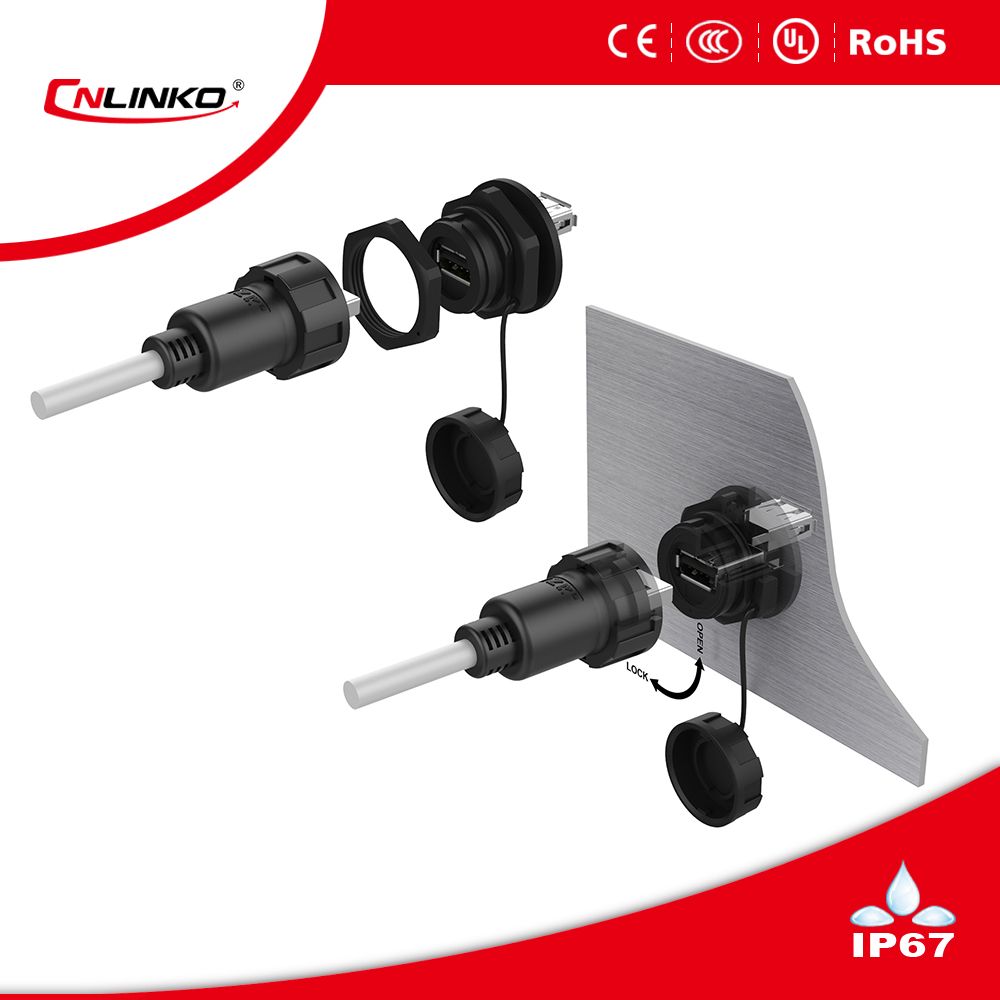

IP67 USB Data Cable/USB Cable with Protective Sleeve for Audio Equipment
YU series electrical connectors IP67 1. independent USB3.0 socket design, easy to install and operate
2. achieve double-head male to female adapter, snap locking
ensure safe and stablecable can be customized
3. compatible with USB2.0
4. protection level IP67
5. sheath of cable protect cable outlet well
6. solid connections system can provide the solutions for data transmission in harsh environments
| YU-USB3-JSX-03-100 |
| Specifications: | |
| Connecting mode: | Quickly bayonet connect |
| Protection level: | P67 |
| Cable specification: | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 9 |
| Current rating(A): | 1.5A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 1000V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Produce type: | USB Convert Serial Cable Connector |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP67) |
| - Vibration resistance,impact resistance,stretching resistance |
| - 1/4 bayonet connect; socket with cover |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Packaging & Shipping1. 5pcs to a box, 40 boxes to a carton, or use customized packing with MOQ1000 pcs/model boxes
2. Lead time: 7-10 working days after received deposit for USB Convert Serial Cable Connector
3. DHL/UPS/FedEx/EMS/TNT(door to door) or use customer partner
Our Services1. Supply OEM and ODM service for USB Convert Serial Cable Connector
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4. Free samples are available for USB Convert Serial Cable Connector
5. Supply the best service to you with the contact details below:
TEL:0086-0755-36853901
FAX:0086-0755-86960305
Cellphone: 0086-18312490297
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.
We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.
Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.
Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.
We will always keep skills fresh and up-to data with international.
Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
