IP67 Waterproof 100W 24V Switching LED Power Supply

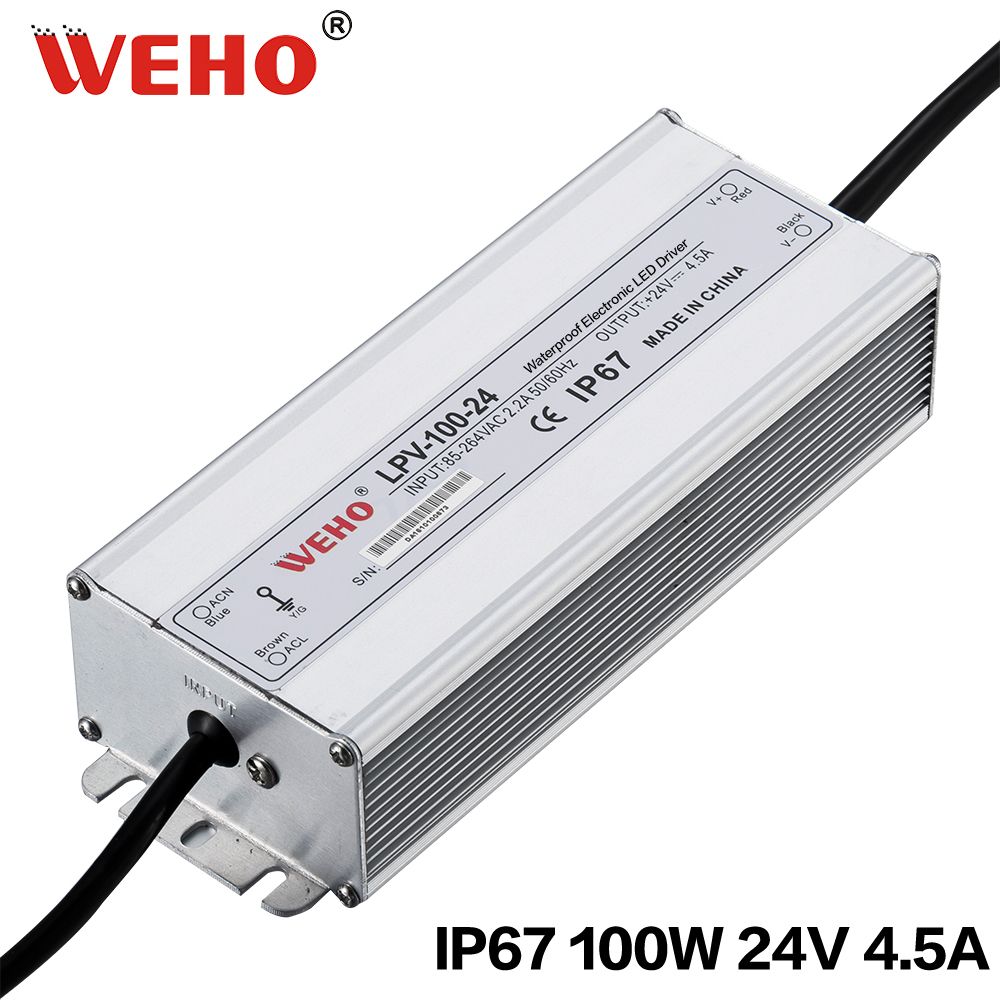

Name: IP67 Waterproof 100W 24V Switching LED Power Supply
Brand: all-electronics-online.com
SKU: 690855331
Availability: InStock
Rating: 4.4 (81 reviews)

Price:	US $ 9.99-14.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-100-24
IP Code:	IP67
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Item Name:	100W Waterproof Power Supply
Size:	1856943mm
Output Type:	Single
Warranty:	2 Years
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Brand:	Weho

Product Description

ip67 waterproof 100w 24v switching led power supply

Model	LPV-100-12	LPV-100-15	LPV-100-24	LPV-100-48
Dc output voltage	12V	15V	24V	48V
Rated output current	8.5A	6.6A	4.5A	2.1A
Output current rage	0~8.5A	0~6.6A	0~4.5A	0~2.1A
Rated Power	102W	99W	108W	100.8W
Wave and noise	100mVp-p	150mVp-p	150mVp-p	150mVp-p
Efficiency	81.0%	83.0%	83.0%	84.0%
AC input voltage range	AC85~264V 47~63Hz;254~373VDC
Input current	2.2A/115A1.2A/230V
AC INnrush current	Cold-start 30A/230V
Overload proctection	105%~150% Potection type: Hiccp mode, recobers automatically after condition recoverd
	Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time	100ms,60ms/230VAC at full lod
Withstand voltage	I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG: 0.5KVAC
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature	-10°C~+50°C
Overall dimension	1856943mm
EMC standards	Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Weight	0.9Kgs

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
