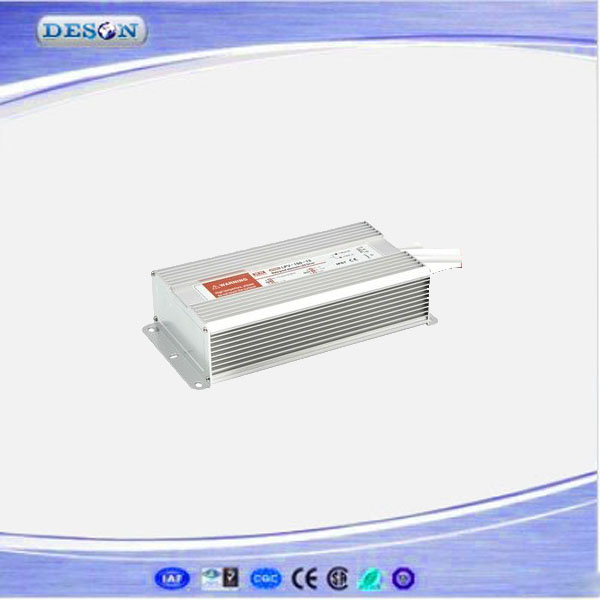

IP67 Waterproof 150W Single Output Switched Mode Power Supply

Power:	150W
Input:	85 ~ 264VAC 120 ~ 370VDC
Output:	5V/12V/24V
Size:	235X120X55mm
Weight:	2.5kgs
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	150W
Brand:	Deson
Energy Transmission:	Switched Mode Power Supply

Product Description

IP67 Waterproof 150W Single Output Switched Mode Power Supply

1.Universal AC Input
2.Small size, light weight
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6. 2 years warranty


Product Description


Model		LPV-150-12	LPV-150-24	LPV-150-36	LPV-150-48
output	DC voltage	12V	24V	36V	48V
	Voltage tolerance	±1%	±1%	±1%	±1%
	Rated current	12.5A	6.3A	4.2A	3.1A
	Current range	0~12.5A	0~6.3A	0~4.2A	0~3.1A
	Rated power	150W	151.2W	151.2W	148.8W
	Ripple&noise	120mvp-p	150mvp-p	180mvp-p	180mvp-p
input	Voltage range	180~264VAC,255~373VDC
	Frequency	47~63HZ
	AC current	1.6A/230VAC
	Efficiency	82%	84%	84%	85%
	Inrush current	Cold start current 40A/230VAC
	Leakage current	<2.5mA/240VAC
protection	Over load	Rated output power 105%~135%start over load protection
		Protection type: hiccup mode,auto-recovery after fault condition is removed
	Over voltage	15.6~17.8V	30.6~33.2V	42.6~44.2V	54.8~56.6V
		Protection type: hiccup mode,auto-recovery after fault condition is removed
	Over temperature	Shell temp≥85°C,start over temperature protection
		Protection mode: cutoff output,auto-recovery after temperature become normal
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storage temp.humidity	-20°C~+85°C,10%~95%RH non condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
safety	Withstand voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC
Fits tandard	Safety standard	Fit UL1012,IP67 protect level
	EMC standard	Fit EN55022,CLASSA
Others	Dimension	230*122*50mm (L*W*H)
	Weight/packing	2.8kg/9pcs/26kg/0.033 m³/1.15CUFT
