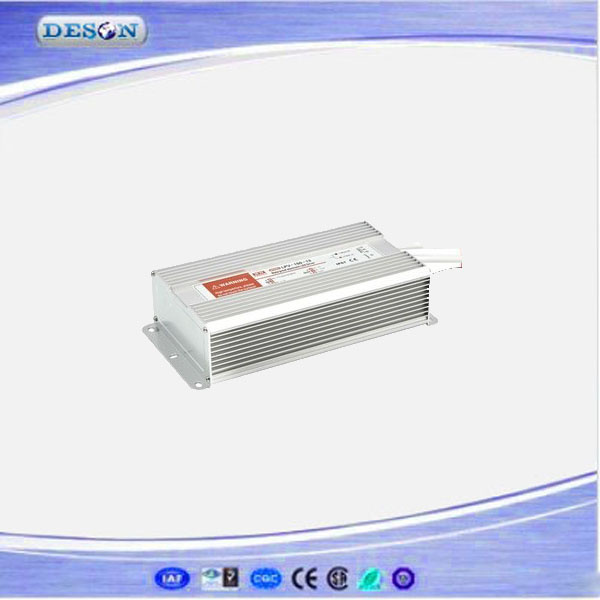

IP67 Waterproof 200W Single Output LED Power Supply

Prod Model:	LPV-200
Power:	200W
Input:	85 ~ 264VAC 120 ~ 370VDC
Output:	5V/12V/24V
Size:	235X120X55mm
Weight:	2.5kgs
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	200W
Brand:	Deson
Energy Transmission:	LED Power Supply

Product Description

IP67 Waterproof 200W Single Output LED Power Supply

1.Universal AC Input
2.Small size, light weight
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6. 2 years warranty


Product Description


Model	LPV-200-12	LPV-200-24
DC output voltage	12V	24V
Output voltage error	±1%	±1%
Rated output current	16.5A	8.3A
Output current range	0-16.5A	0-8.3A
Wave and noise	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%
Load stability	±0.5%	±0.5%
DC output power	200W	200W
Efficiency	85%	85%
AC input voltage range	170 ~ 264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.5mA/240VAC
Over load protection	105%~150% rated output power
	Protection:Hiccup mode
Over voltage protection	13~16V	28~32V
	Protection:Shut down output voltage
short circuit protection	Protection:Hiccup mode
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity	-10~+60°C, 20~90%RH
Store temperature and humidity	-20~+85°C, 10~95%RH
Overall dimension	235×122×60mm
Weight	2.8Kgs
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
