IP67 Waterproof 7pin Signal Connector/Connector Pins

Name: IP67 Waterproof 7pin Signal Connector/Connector Pins
Brand: all-electronics-online.com
SKU: 777390315
Availability: InStock
Rating: 4.3 (31 reviews)

Price:	US $ 6.2/Set
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Set
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YW-20-C07PE-02-001 & YW-20-J07SX-02-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Pin:	7pin for Signal
Connection Type:	Screw
Housing:	Metal
Waterproof Level:	IP65/67
MOQ:	100sets

Product Description

IP67 waterproof 7pin signal connector/connector pins

Our connector has been widely used in

1.LED screen industry
2.audio-visual equipment
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.

Product Specification:

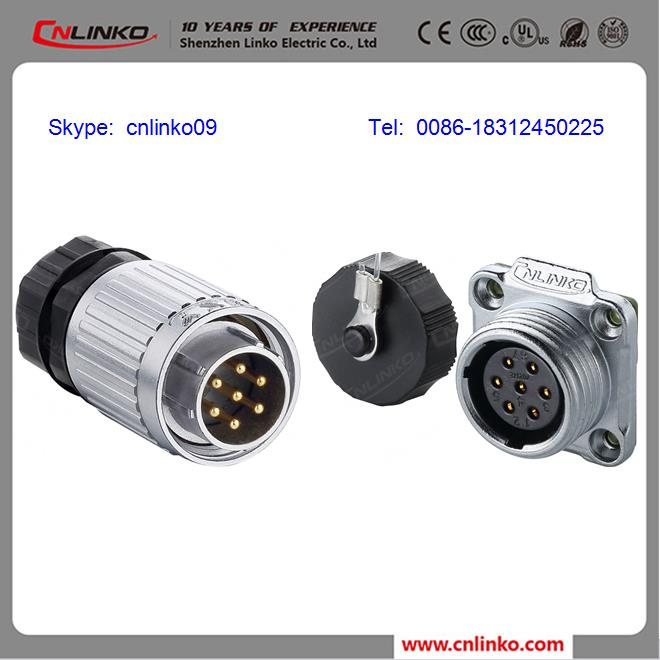

YW20 7pin signal connector (male plug and female socket)
Specifications:
Connecting mode:	PLUG /UNPLUG
Protection level:	IP65/IP67
Cable specification:	1.0mm2 ~ 1.5 mm2 /18-16 AWG
Diameter range:	Φ7mm ~Φ9mm
Contact diameter×Qty:	Φ2.0×7
Current rating(A):	12A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<2.5mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Temperature rise:	20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
