IHD Technology Limited >> IP67 Waterproof Bicycle Taillight GPS Tracker Device

IP67 Waterproof Bicycle Taillight GPS Tracker Device

IP67 Waterproof Bicycle Taillight GPS Tracker Device
Price: US $ 22-28/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: KG004
Battery: 3200mAh
Whole Machine Size: 83mm *61mm* 27mm
GPRS: Class12
WiFi Location Accuracy: 0 - 5m
GPS Location Accuracy: 5-15m
GPS Chip: Mtk6261
Type: GPS Tracker
Use: Automotive
Screen Size: No
Chip: Mtk
Brand: Koshiro

Product Description

Bicycle taillight locator specification

Product positioning : Bicycle, mountain bike, bicycle, electric bicycle

major function:

1, real-time positioning
2, historical track
3, electronic fence
4, vibration alarm
5, remote shutdown

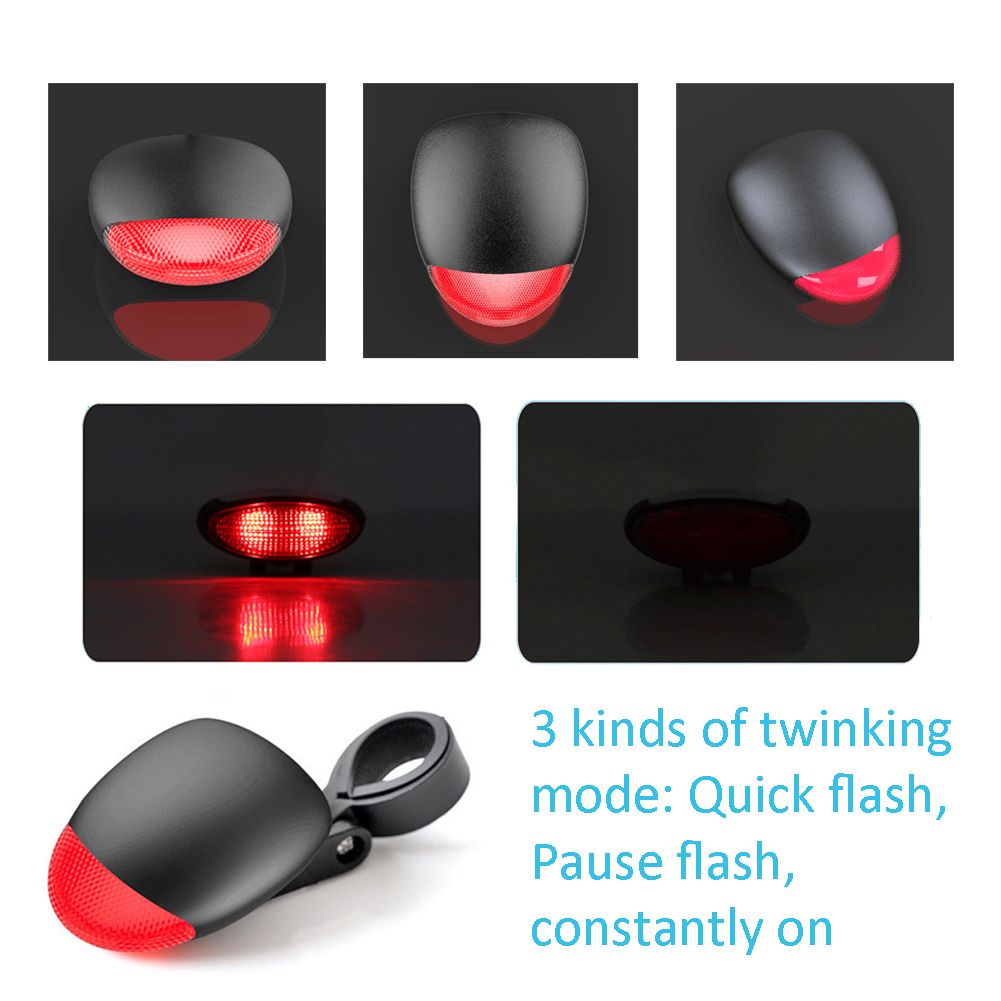

6, Light selection

main features:

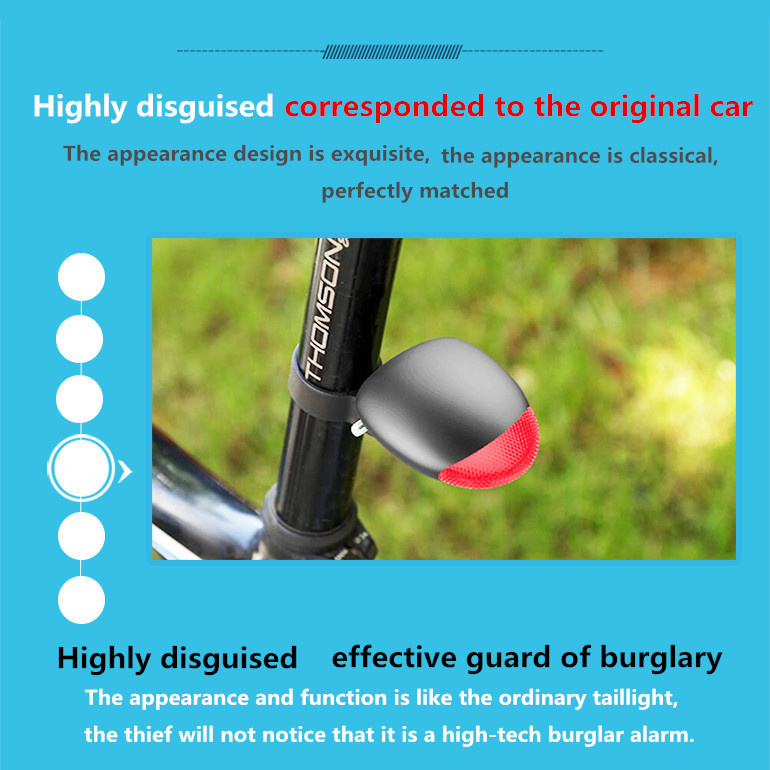

1, simple operation, super camouflage
2, zero error accurate positioning, always protect your car.
3, a variety of lighting options
4, vehicle abnormal alarm reminder
5, multi vehicle monitoring, fleet management










OEM/ODM customized project would be highly welcome.



1. structure division
structure partscategoryspecificationremarks
ID designConcise and generous
Whole machine size83MM  *61MM*  27MM
Packing size110MM*80MM*50MM
Weight76g
colourblack
screenno
gps antennaHigh sensitive ceramics active antenna
GSM antennaFPC antenna
battery3200ma
SIM card slot1 pc
G-sensorsupport
2. Hardware parts
Hardware partsCPUMTK MT6261
GSM frequency band850/900/1800/1900MHz
GPS chipMTK6261
GPRSclass12
GPS signalL1,1575.42MHz C/A
GPS channel number22 channels
GPS chip receive sensitivityTracking sensitivity:-165dBm,capture sensitivity:-148dBm
WIFI location accuracy0 - 5M
GPS location accuracy5~15M
LBS location accuracy100-1000M
Minimum standby currentless than 0.5 mA
Average stndby currentless than 2.5 mA
Average working current5-36V
Working temperature-20~70ºC
Working humidity5% to 95% non-congealable
GPS antennaBuilt in high sensitivity ceramic antenna
GSM antennaFPC antenna
G-sensorSupport
MICSupport
Texture of materialABS environmental protection material
3. software parts
software partssupported operating systems Support android 2.3 and above system, IOS5.0 and above.
Language supportSimplified Chinese and EnglishCompatible with support for multi-languages
GSM+GPRS+GPS+wifiGPS+LBS+WIFI Multi-modal positioning
support AGPSCold start 26 seconds positioning
power managementUltra-low power consumption of power management,intelligent dormancy
Smart Geo-fenceOutside the range setting can be automatic alarm
historical routeCan check history of three months
wireless upgradingSoftware upgrade, remote debugging maintenance, remote setting parameters


Please feel free to contact us if any question or comments.
Thanks in advance!

Zoe Liao

TEL:86-13809885387
Web: www.koshiro.cn

KOSHIRO aims to become leading company in Safty/ healthy and devotes to bring people a scientific, high quality of life, healthy, safe, fashionable lifestyle.

IHD Technology Limited over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.

For now, we have wide experience on GPS Tracking devices\Smart Health Watches\ Heart Rate Fitness Pedometer Bracelet etc...Products of high quality, fashionable, widely used in people's life, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.

We also have powerful hardware development capabilities. OEM & ODM project are mainly business of us. IHD to always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions and technical problems.

For our current products, we offer beautiful price and can delivery the goods between 2 ~ 15 days.

OEM/ ODM project, Private label service, Package customized are also warmly welcomed.
