IP67 Waterproof Ce Approved Gate Opener Travel Switch Wld3

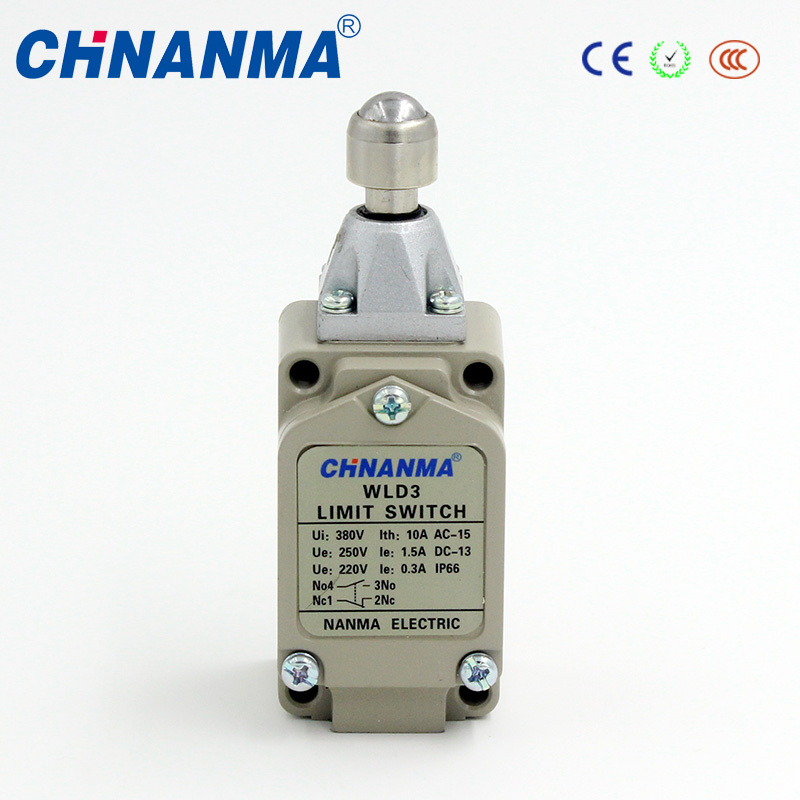

Name: IP67 Waterproof Ce Approved Gate Opener Travel Switch Wld3
Brand: all-electronics-online.com
SKU: 727709782
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	US $ 1.28-3/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WLD3

Product Description

Double-circuit type of limit switch,is widely used;
With strong aluminum cast outer shell;
High mechanical strength;
Structure preventing oil,water and pressure;
Indicating plate with setting positon is installed in it,so it is easy to maintain;
Various of actuators is taken convience for using;
Built-in contact stand has double-spring,so it has long mechanical life

Characteristic

Protection		IP67
Life	Mechanical	15,000,000times
Life	Electrical	750,000times
Operation speed		1mm-1m/s
Operation frequency	Mechanical	120times/min
Operation frequency	Electrical	30times/min
Insulation resistance		>100MΩDC500V
Contact resistance		<25mΩ
With stand voltage50/60HZ/min	Between theterminals of same pole	AC1,000V(600V)
	Between charged metal parts	AC1,500V(1500V)
	Between charged metal parts each terminal	AC1,500V(1500V)
Vibration	Misoperation	10-55Hz amplitude 1.5mm
Load		AC 250V 10A
		AC 125V 10A
		AC 250V 5A
Ambient operating temperature		-10-+80ºC
Humidity		<95%

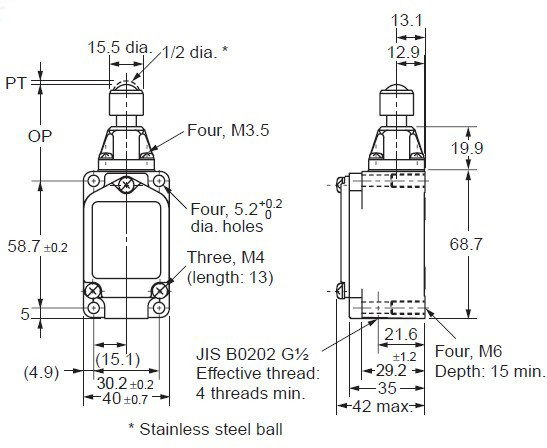

Dimensions

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.
