IP67 Waterproof LED Driver with Ce SAA Saso

Name: IP67 Waterproof LED Driver with Ce SAA Saso
Brand: all-electronics-online.com
SKU: 781665415
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	US $ 9.09-10.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E60B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	60W
Input Voltage:	170-250V
Output Voltage:	12V
Output Current:	5A
Operating Temperature:	-25~40 Degree
Certificates/Standards:	Ce
Dimensions(LWH):	15567 mm
IP Rating:	IP 66
Packing Information:	10PCS/ Carton, G.W 8kg
Cooling:	Free Air Convection
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

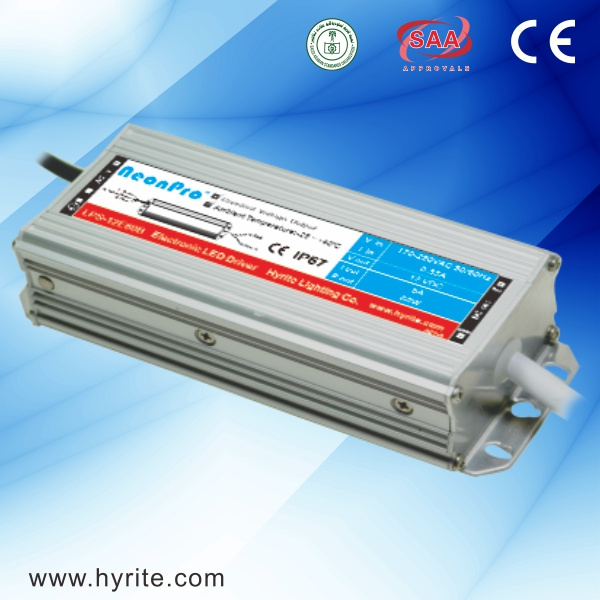

12V 60W Waterproof LED Power Supply with CE SAA Saso

Brief Introduction:
*Brand Name:Neonpro
*External led power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Seamless aluminum case, fully sealed & waterproof, IP67
*Constant voltage output
*100% burn-in test
*2 years warranty
*CE SAA SASO approval

Technical Specs

Model no.	LPS-12E60B
Input voltage	170-250 VAC 50/60 Hz
Max. power	60W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	86%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	5A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Outdoor waterproof
IP rating	IP 66
Cooling	Free air convection
Certificates/standards	CE,SAA
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)

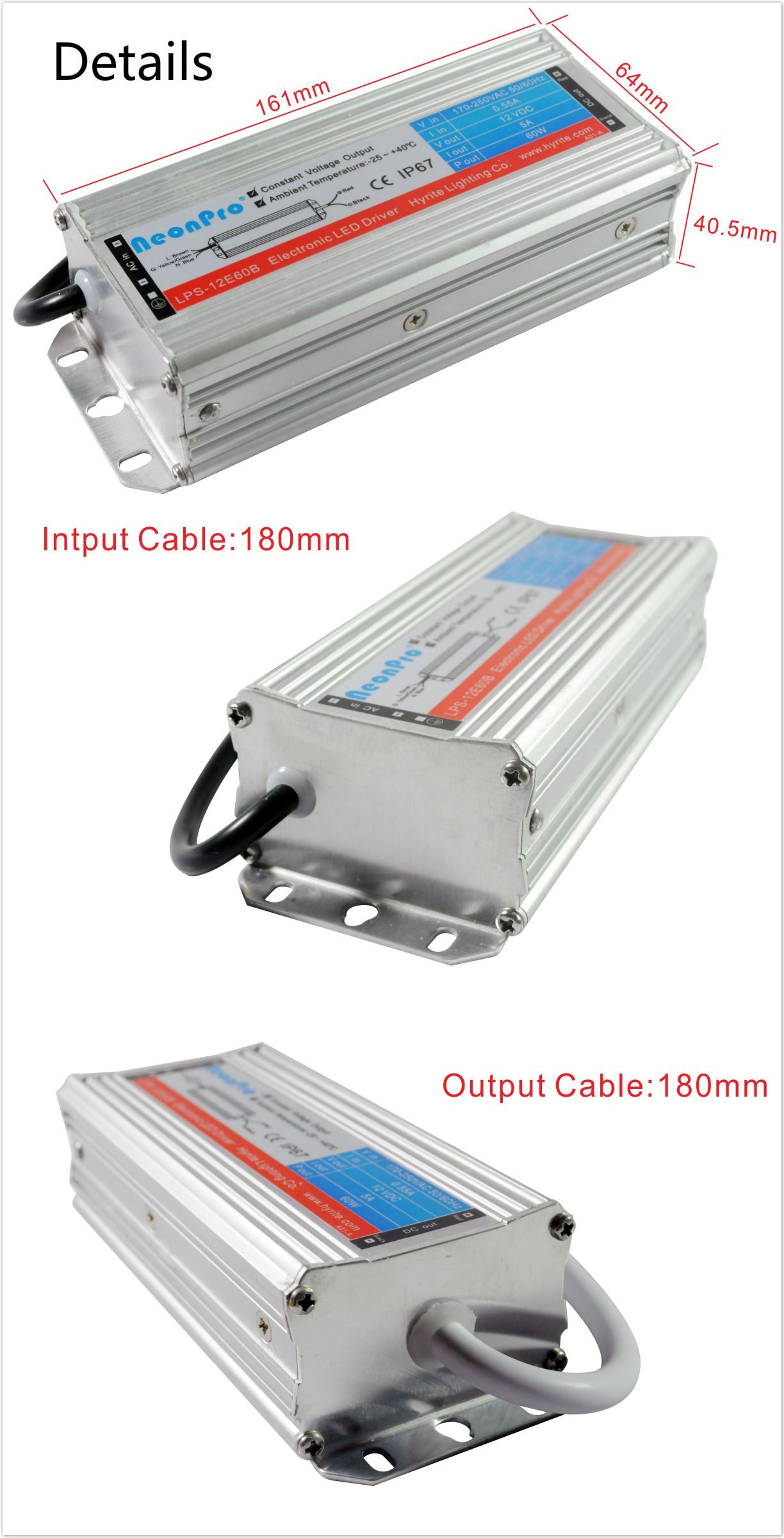

Dimensions(LWH)	15567 mm
Weight(kg)	0.8

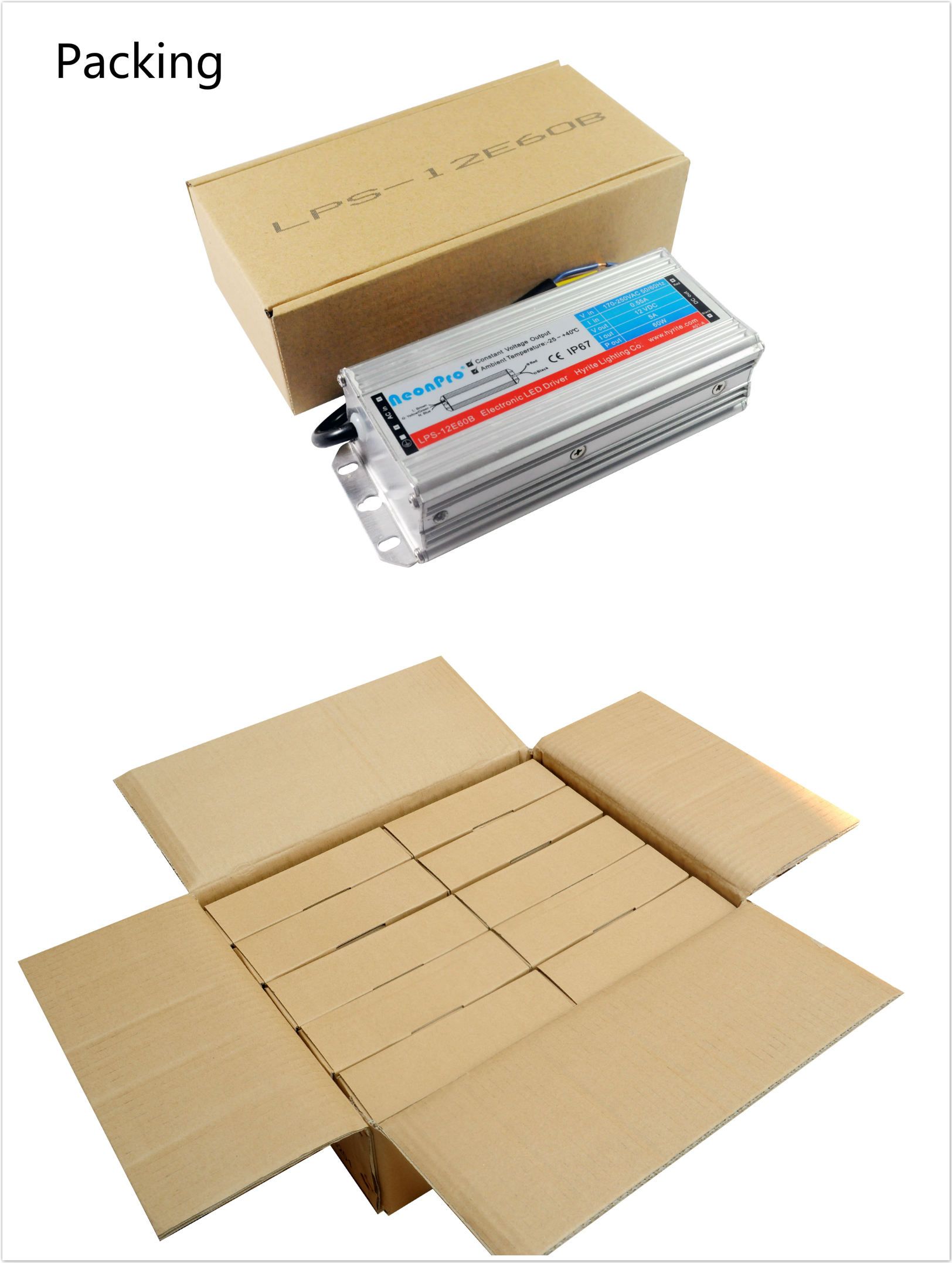

Packing information	10Pcs/ Carton, G.W 8KG

Detailed Pictures

Our Service & Advantages:

*24 hours Service for customers all over the world
*More than 20 years sales and manufacturing experience for LED Power Supply and Neon transformers in China.
*All of our products are sold to overseas market.
*Our products passed CE ROHS SASO TUV SAA UL approval.

Welcome to our factory!

45 mins away from Guangzhou International Baiyun Airport.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
