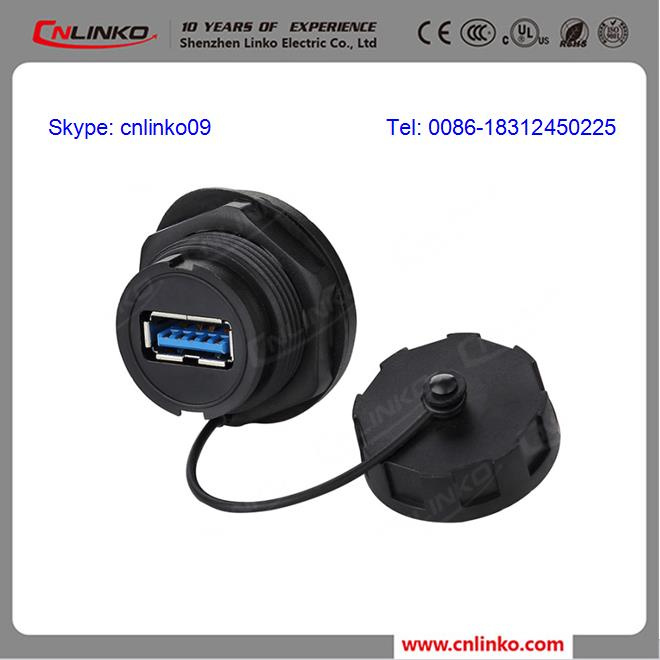

IP67 Waterproof Panel Mount USB3.0 Cable Connector/USB3.0 Socket

Prod Model:	YU-USB3-JSX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Type:	USB3.0 Socket
Durability:	> 500 Times
Material:	PBT, Black
Contact:	Copper Alloy
Working Temperature:	-40~ 80 Degree
Connecting Mode:	Quickly Bayonet Connect
Waterproof Rate:	IP67
Gender:	Female
Application:	Microwave

Product Description

IP67 Waterproof  Panel Mount USB3.0 cable connector
Product Description
With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and  Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

Product Datasheet:

YU-USB2.0/3.0 connectors
Specification
Connecting mode:	Quickly bayonet connect
Protection level:	IP67
Cable specification:	0.15 mm2 ~ 0.2mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	9
Current rating(A):	1.5A
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	<30mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Produce type:	Usb Panel Mount Connector
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-5 working days after received deposit for Usb Panel Mount Connector;
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner.

Our Services

      1.Supply OEM and ODM service for Usb Panel Mount Connector
      2.With professional quality control system and R&D department
      3.To make customized needs with national level laboratory
      4.Free samples are available for Waterproof Usb Panel Mount Connector
