IP67 Waterproof Signal Connector/12pin Connector

Name: IP67 Waterproof Signal Connector/12pin Connector
Brand: all-electronics-online.com
SKU: 776608865
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 4.5/Set
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Set
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YM-20-C12PE-01-001, YM-20-J12SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	0.15mm-0.2mm2/26-24AWG
Diameter Range:	Od5.5-7mm
Rated Current:	5A
Operating Voltage:	400V
Waterproof Level:	IP67
Connecting Mode:	1/4 Bayonet Connect
Gender:	Male
Application:	PCB

Product Description

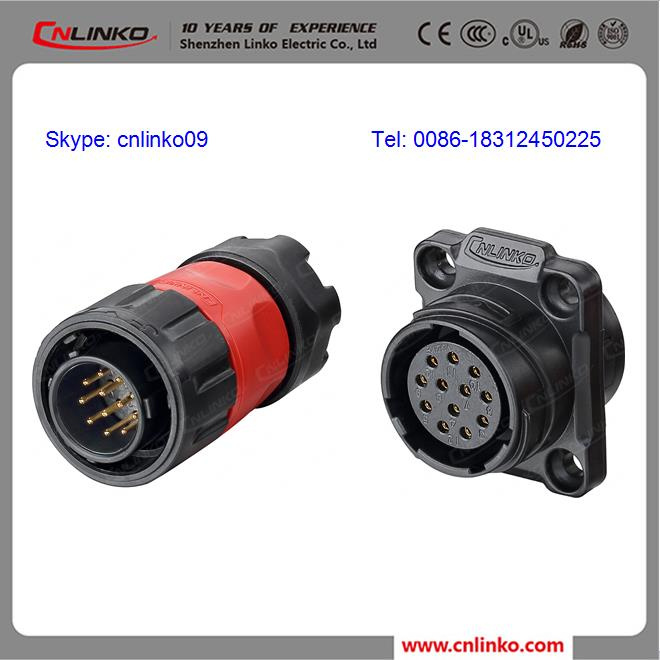

IP67 waterproof signal connector/12pin connector

Specification:
1.multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
3.PBT shell performance stable,compression, anti-explosion and anti-deformation
4.unique LINKO clamp , 4 holes for installation ensure stable
5.rated current: 20A rms
6.protection level:IP67/IP65

Product Features:

YM-20-C12PE-01-001,YM-20-J12SX-01-001
Connecting mode:	plug/unplug
Protection level:	IP65/IP67
Cable specification:	0.15mm2 ~ 0.2 mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	Φ1.0×12
Current rating(A):	5A
Operating voltage(AC.V.rms):	400V
Withstand voltage(AC.V)1min:	1500V
Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Produce type:	Circular Plastic Connector
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging&Payment&Shippment:
Packaging: 10pcs/small box, 100pcs/middle box, 240pcs/master box
Payment: T/T, Western Union, Paypal
Shippment: by express, by sea, by air
Lead time: 3-5 working days below 500sets

Contact Information:
Eunice Tan ( sales manager)

H.P: +86-18312450225/15013650758

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
