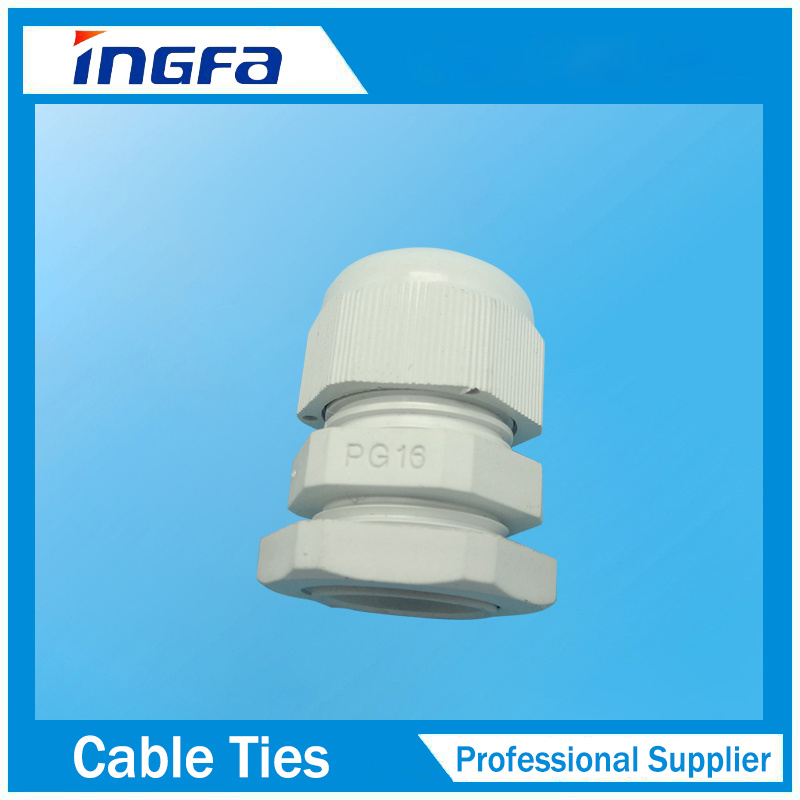

IP68 Pg16 Polyamide Cable Connector

Name: IP68 Pg16 Polyamide Cable Connector
Brand: all-electronics-online.com
SKU: 690687155
Availability: InStock
Rating: 4.5 (62 reviews)

Price:	US $ 0.029-0.0301/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sample:	Free
Size:	Pg7-Pg63 M12-M63
Color:	White Black Grey Red Other
Protection Level:	IP68
Application:	UHF

Product Description

IP68 Pg16 Polyamide Cable Connector

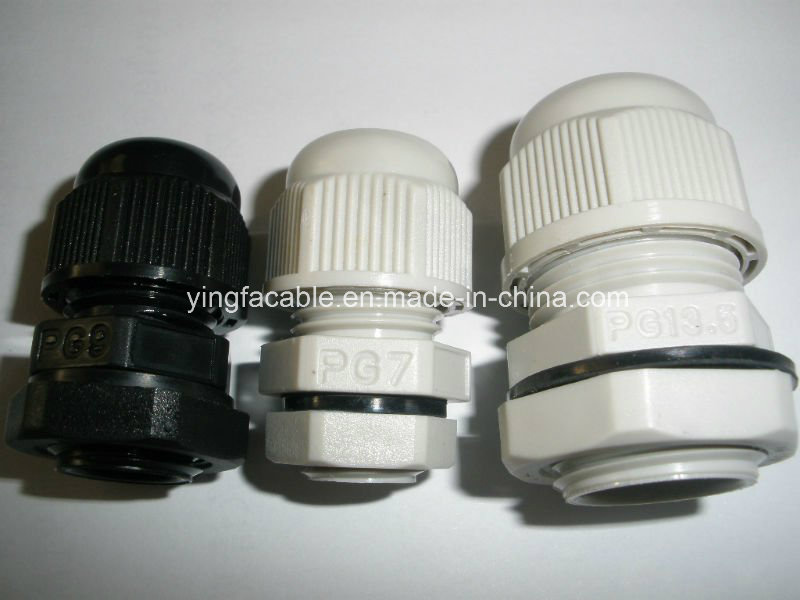

1) Type: Nylon Cable Glands
2) Material: Nut, Locknut and Body are made from UL-certified nylon 66, 94V-2. Seal and Gasket are made from NBR.
3) Standard colors: Grey, black, and other colors available on request.
4) Protection degree: IP68 (used with Washer)
5) Operation temperature: - 40 centigrade to+ 100 centigrade, maximum instantaneous temperature up to 120 centigrade

Type	ITEM.NO.	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	B1 (mm)	Cable range (mm)
M12×1.5	PG-07	12	8.1	9	5	15	14	6.4	3.5--6
M16×1.5	PG-09	16	11	9	5	15	16	8.6	4--8
M18×1.5	PG-11	17.9	13	9	5	18	18	10.7	5--10
M20×1.5	PG-13.5	20.2	15	9	5	20	19	13.3	6--12
M22×1.5	PG-16	22	17	11	5	20	19	14.3	10--14
M24×1.5	PG-19	24	19	11	5	22	21	15.5	12--15
M27×1.5	PG-21	26.9	21.8	11	6	24	22	16.7	13--18
M30×1.5	PG-24	29.8	24	13	7	24	24	19.2	15--22
M30×1.5	PG-25	29.8	24	13	7	24	24	19.2	15--22
M32×1.5	PG-27	29.8	24	13	7	24	24	19.2	15--22
M36×1.5	PG-29	36	28	13	7	25	24	24.8	18--25
M48×1.5	PG-36	45.7	39	15	8	32	27	30.7	22--32
M53×1.5	PG-42	54	46	15	8	33	29	35.6	30--38
M58×1.5	PG-48	59	51	16	8	36	30	41.4	34--44
M70×1.5	PG-63	71	63.5	28	9	45	44	55	42--54
