IP68 Submersible Pressure Transmitter/ Level Sensor

Name: IP68 Submersible Pressure Transmitter/ Level Sensor
Brand: all-electronics-online.com
SKU: 773809145
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	US $ 55-68/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-83D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Type:	Gauge
Power Supply:	24VDC
Coperation Temperature:	-20~80 Centigrade
Product Name:	IP68 Submersible Pressure Transmitter
Type:	Level Pressure Sensor

Product Description

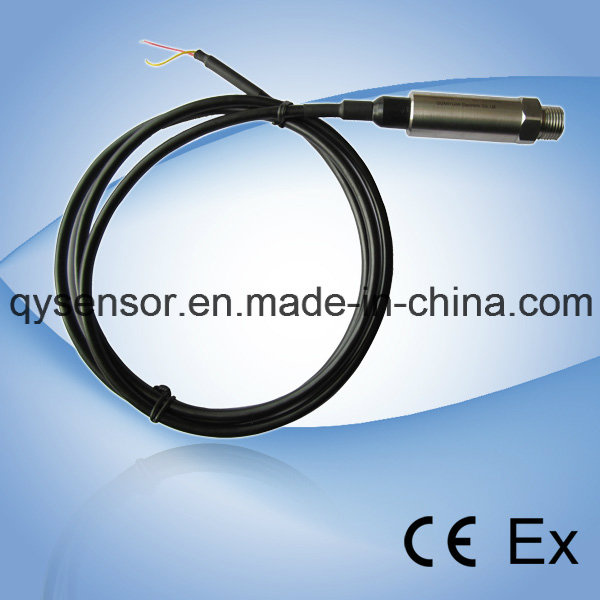

IP68 Submersible Pressure Transmitter/ Level Sensor QP-83D
Feature:
Have the characteristics of high precision, high reliability, good stability, long working life.
Accuracy can be chosen by customers.
Good waterproof ability, IP 68.
Easy to install.
Small in size, light in weight.
Pressure connection is able to chosen by customers.
Suitable for measuring gases and liquids.

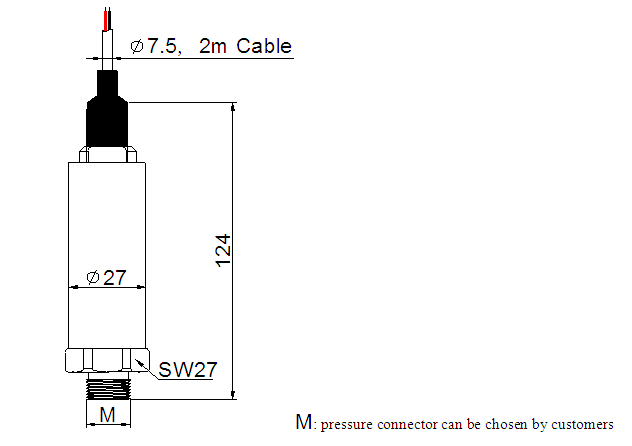

Dimensions: (unit: mm)

Technical Specifications

Measuring media	Gases or liquids which are compatible to 316L stainless steel
Measuring range	-100~0KPa, 0~5KPa.0~500KPa.0~100MPa
Pressure type	Gauge(G),Absolute(A),Sealed(S)
Signal output	transmitter, mA (2 wires)		4~20mA
	transmitter, Vdc (3 wires)		0~10V, 0~5V, 1~5V, 0~20mA
Combined accuracy	%FS		±0.25(Standard), ±0.5(Max)
Long stability	±0.1%FS/year(Standard);±0.2%FS/year(Max)
Power supply	Vdc	12~36(Standard 24Vdc)
Compensated temp.	ºC	-10~+60
Operating temp.	ºC	-20~+80
Temperature coefficient of ZERO	%FS/10ºC	±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa)
Temperature coefficient of SPAN	%FS/10ºC	±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa)
Insulation resistance	MΩ	>500 @ 100Vdc
Electrical connection	Directly lead
Material	Housing Material		Stainless steel(1Cr18Ni9Ti)
	Material of diaphragm		316L Stainless steel
Pressure connection	G1/4,M20x1.5,M14x1.5,M12x1,M10x1(Customized)
Environment protection	IP		68
Safe overload	%FS		150
Ultimate overload	%FS		200

Ordering code: model- range & type-signal output-accuracy-pressure connection-electrical connection-defend grade-the other requests.
Example: QP-83D-0/300KPaG-4/20mA-0.25%FS-M20x1.5 -IP68-2m
